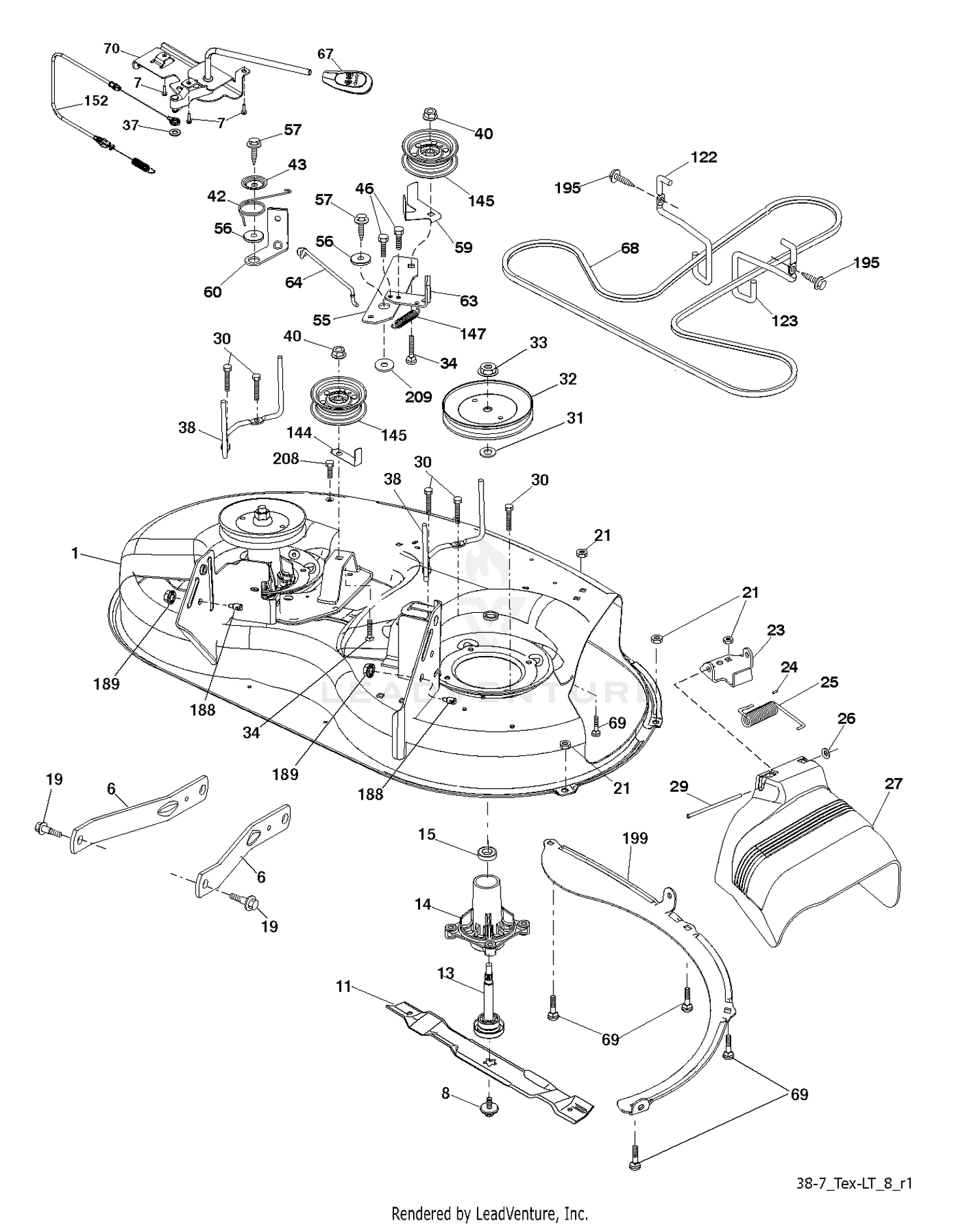

| Ref | Part Number | Description |
|---|
| 1 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 1 |
532194251 |
HOUSING Price: $139.99 |
| 2 |
10-8350 |
DISCONTINUED Price: Call Us |
| 3 |
3290-199 |
NUT-SPEED Price: $4.09 |
| 4 |
10-4650 |
DISCONTINUED Price: Call Us |
| 5 |
321-8 |
SCREW-HH Price: $0.34 |
| 6 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 7 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
2412-21 |
DISCONTINUED Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
3290-237 |
SLOT HD SCREW Price: $0.25 |
| 10 |
32122-14 |
SCREW-PPH Price: $1.02 |
| 11 |
5-1315 |
DISCONTINUED Price: Call Us |
| 11 |
532193957 |
BLADE 38" PREMIUM Price: $14.99 |
| 12 |
28-0550 |
Pulley Price: Call Us |
| 13 |
3-7935 |
DISCONTINUED Price: Call Us |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
5-1336 |
KEY-SQUARE Price: $8.92 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
3-8388 |
WASHER Price: $24.32 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
3273-29 |
SCREW-HSFH Price: $20.62 |
| 17 |
3290-163 |
Locknut Price: Call Us |
| 18 |
8-2120 |
DISCONTINUED Price: Call Us |
| 19 |
321-2 |
SCREW-HH Price: $2.79 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
5-1287 |
DISCONTINUED Price: Call Us |
| 21 |
2212-10 |
MUFFLER Price: $159.52 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
3-7232 |
DISCONTINUED Price: Call Us |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 23 |
98-3206 |
DECAL This part replaces 12-9140. Price: $1.99 |
| 24 |
5-1280 |
DISCONTINUED Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
3217-6 |
NUT-HEX Price: $1.19 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532192572 |
SHIELD.DEFLECTOR.MOWER.38" This part replaces 532193968. Price: $49.99 |
| 27 |
68-8860 |
CHAIN GUARD WA *R This part replaces 22-8240. Price: $53.73 |
| 29 |
25-9900 |
DISCONTINUED Price: Call Us |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
40-8930 |
DISCONTINUE This part replaces 10-8330. Price: Call Us |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
323-4 |
SCREW-HH Price: $1.02 |
| 32 |
532199789 |
PULLEY.MANDREL.5.0.PD.38" Price: $14.99 |
| 33 |
40-8970 |
DISCONTINUED This part replaces 5-1447. Price: Call Us |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
11-8880 |
Engine Price: Call Us |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
25-9920 |
DISCONTINUED Price: Call Us |
| 36 |
224-173 |
DISCONTINUED Price: Call Us |
| 37 |
289-26 |
DISCONTINUED Price: Call Us |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
32128-20 |
NUT-HF Price: $0.99 |
| 38 |
532400140 |
KEEPER, MANDREL BELT This part replaces 532199541. Price: $24.99 |
| 39 |
249-17 |
DISCONTINUED Price: Call Us |
| 40 |
28-1040 |
DISCONTINUED Price: Call Us |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 55 |
532197249 |
IDLER.ARM Price: $3.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" Price: $11.99 |
| 63 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $12.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
532408381 |
V-BELT Price: $39.99 |
| 69 |
872140505 |
BOLT Price: $2.99 |
| 70 |
532198332 |
CLUTCH.ASM.MANUAL.LT.TEX Price: $54.99 |
| 122 |
532197258 |
KEEPER BELT ENGINE LH Price: $9.99 |
| 123 |
532197259 |
KEEPER BELT RH Price: $9.99 |
| 144 |
532193414 |
KEEPER BELT Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401872 |
SPRING RETURN Price: $2.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $19.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 199 |
532400095 |
BAFFLE.VORTEX.FRONT.38" Price: $12.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 209 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
