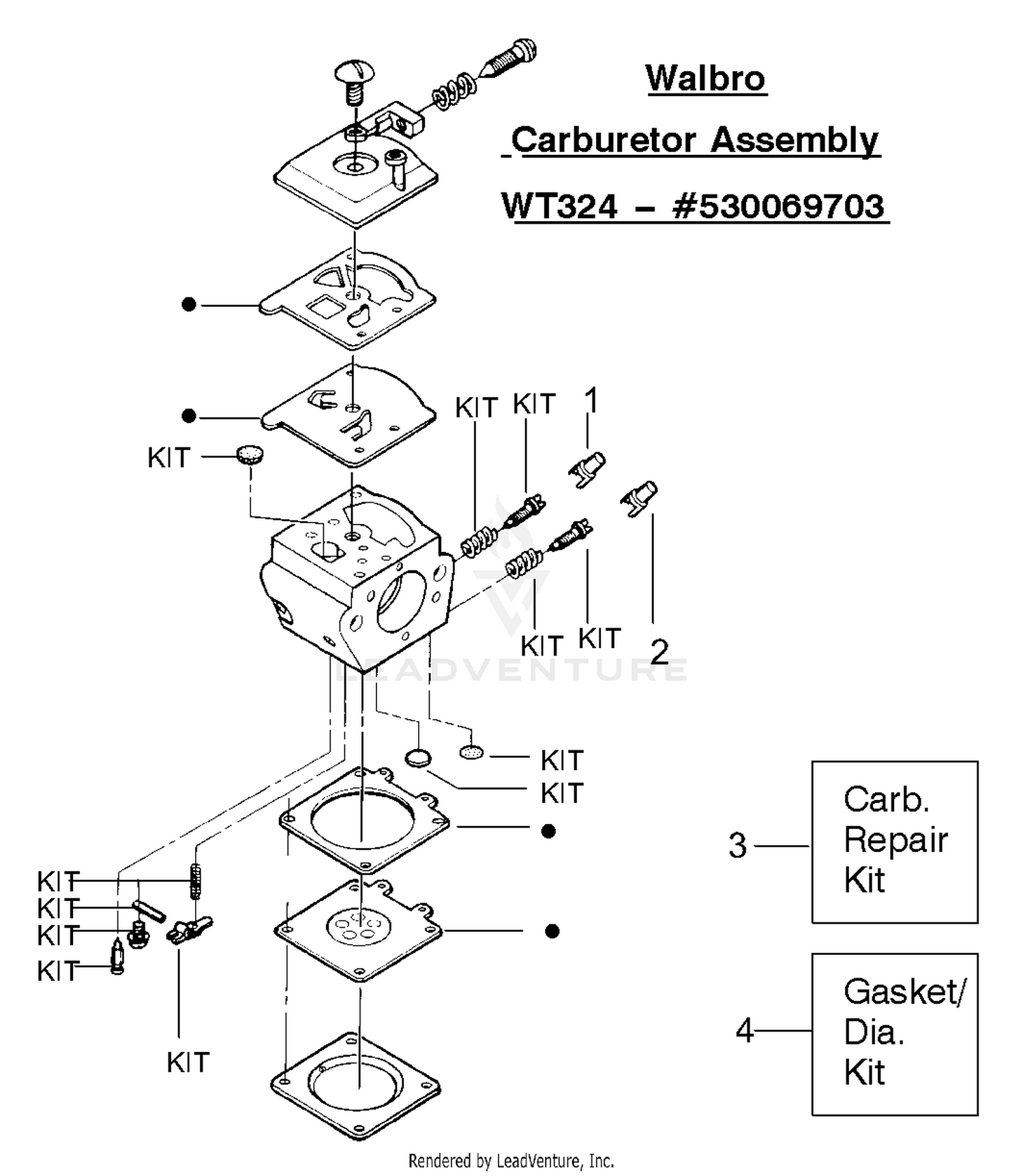

Carburetor Assembly (Walbro WT324) P/N 530069703
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-8293-0P | TUBE-SHORT This part replaces 115-8293-03. Price: $224.35 |
| 1 | 530038479 | Limiter Cap High (brown) Price: $1.99 |
| 2 | 114-5410 | SHAFT-SHORT, REAR ROLLER Price: $128.74 |
| 2 | 530038478 | Limiter Cap Low (tan) Price: $1.99 |
| 3 | 114-3717 | SEAL-OIL Price: $2.77 |
| 4 | 112-5290 | BEARING-STEEL, STAINLESS Price: $12.64 |
| 5 | 112-7494 | SEAL Price: $6.37 |
| 6 | 114-5411 | NUT-LOCK, BEARING Price: $24.46 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
