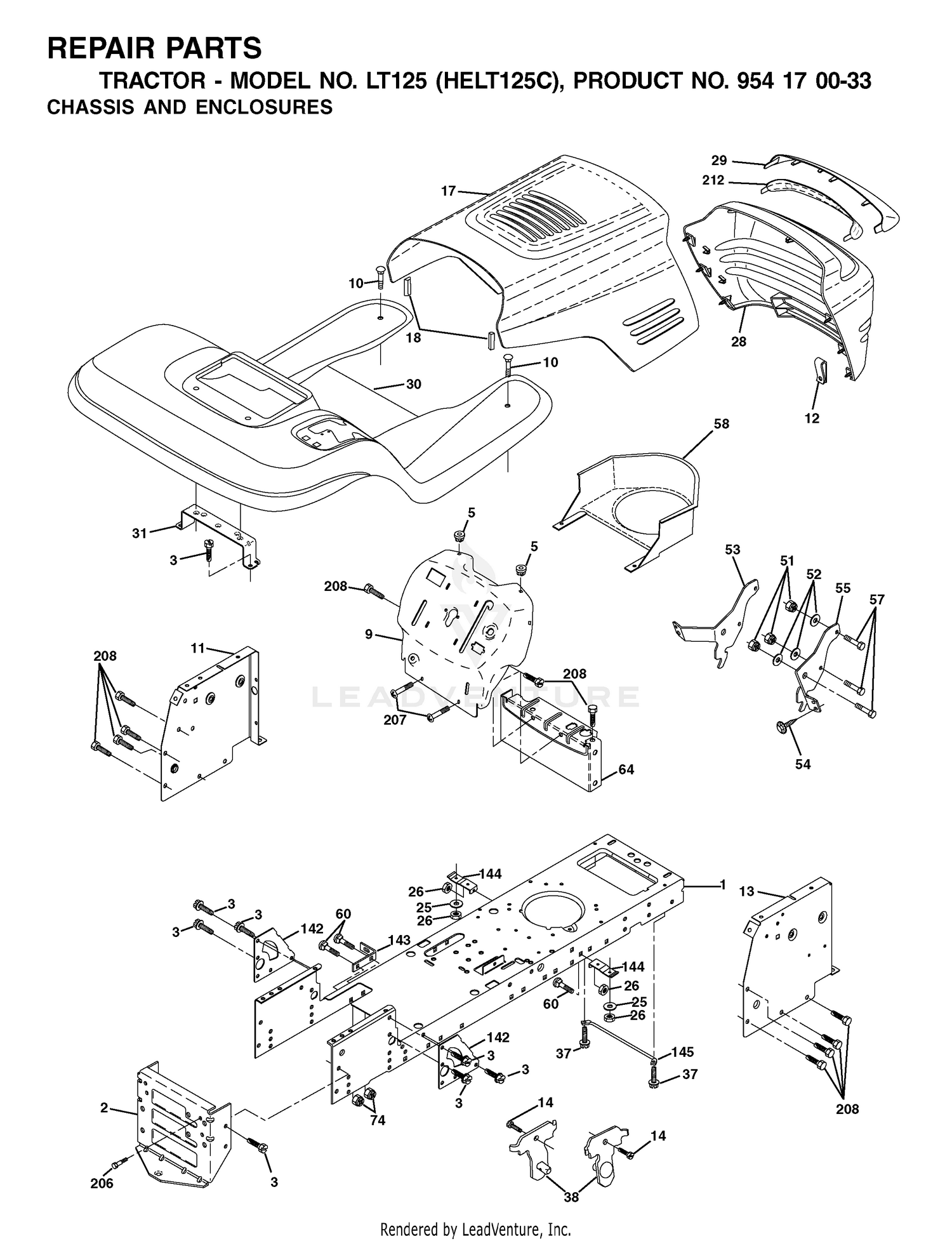

| Ref | Part Number | Description |
|---|
| 1 |
47-3560-01 |
FRONT CROSS CHANNEL ASM Price: $1,253.08 |
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 2 |
47-3570-01 |
REAR CROSS CHANNEL ASM Price: $1,179.36 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
3-2196-01 |
SHEAVE Price: $141.72 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
325-14 |
SCREW-HH Price: $2.64 |
| 5 |
32153-5 |
NUT-HEX Price: $1.59 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
32128-23 |
NUT-HF Price: $1.51 |
| 7 |
3290-216 |
WASHER Price: $3.83 |
| 8 |
47-3990 |
DECAL Price: $19.68 |
| 9 |
49-8170 |
SPACER Price: $27.34 |
| 9 |
532168336 |
DASH This part replaces 532171853. Price: $33.08 |
| 10 |
47-3760 |
HYD HOSE ASM Price: $146.45 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
353-537 |
FITTING-ELBOW, 90 DEG Price: $12.91 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
38-5540 |
FITTING-HYD Price: $80.14 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 13 |
322-13 |
SCREW-HH Price: $2.73 |
| 13 |
532173025 |
PANEL DASH RH Price: $9.92 |
| 14 |
353-426 |
FITTING-90 DEG Price: $29.88 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
119-2859 |
FITTING-UNION Price: $31.23 |
| 16 |
119-2858 |
VALVE-CHECK Price: $103.69 |
| 17 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 18 |
47-3470-03 |
SUPPORT-VALVE Price: $79.97 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 19 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 20 |
2412-133 |
CLAMP-R Price: $3.19 |
| 21 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 22 |
322-3 |
SCREW-HH Price: $0.79 |
| 23 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 24 |
3290-274 |
RIVET-POP Price: $0.25 |
| 25 |
47-3900 |
PLATE-INFORMATION Price: $68.97 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 26 |
63-8510 |
CONTROL VALVE ASM This part replaces 63-8510-03. Price: $3,602.51 |
| 27 |
52-5670 |
DISCONTINUED X-REF Price: Call Us |
| 28 |
532179845 |
GRILLE/LENS ASM This part replaces 532170475. Price: $173.99 |
| 28 |
63-8760 |
LINK PIN KIT Price: $62.78 |
| 29 |
353-988 |
PLUG-HEX Price: $10.61 |
| 29 |
532146654 |
GRILLE.LENS This part replaces 532176645. Price: $17.99 |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532180507. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 55 |
532144696 |
BRACKET Price: $4.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 212 |
532174503 |
INSERT, LENS This part replaces 532156229. Price: $22.99 |
