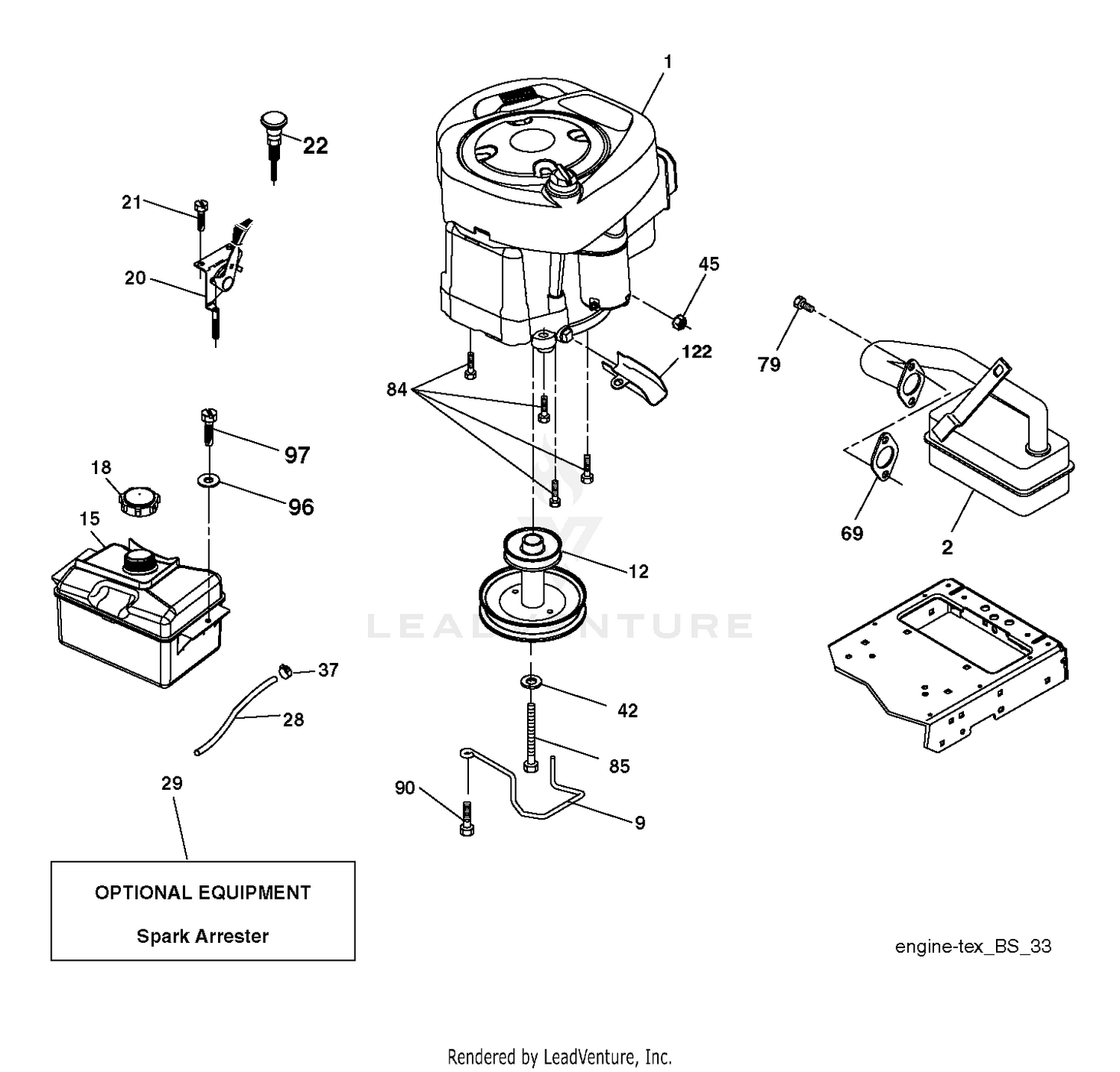

ENGINE

ENGINE

Parts (25)

RefPart NumberDescription
1 99-4753 DISCONTINUED,ORDER COMPLETE CYLINDER Price: Call Us
2 532179758 MUFFLER Price: $70.99
2 99-4754 DISCONTINUED,ORDER COMPLETE CYLINDER Price: Call Us
3 66-1940 PISTON Price: $143.79
4 92-6588 GLAND Price: $214.46
5 66-1930 LOCKNUT Price: $3.60
9 532194320 KEEPER.BELT.ENGINE.4.2 Price: $8.99
12 532405471 PULLY ENGINE Price: $64.99
15 581289901 FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99
18 581075501 CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99
20 532411724 Price: $29.99
21 532416358 SCREW.#10 X 0.750.BOS THREAD Price: $2.99
22 532411725 Price: $11.99
28 532137040 LINE.FUEL.20 Price: $3.99
29 532137180 ARRESTER SPARK (OPTIONAL) Price: $128.99
37 532123487 HOSE CLAMP Price: $3.99
42 539990247 LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99
45 873680400 Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69
69 532272293 Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99
79 532192334 SCREW.SOCKET HD.5/16-1 Price: $2.99
84 817060620 SCREW.3/8-16 Price: $3.99
85 532150280 SUB= 150280 This part replaces 532173937. Price: $3.99
90 817000616 SCREW 3/8-16X1 Price: $3.99
96 819091416 WASHER Price: $3.99
97 817670412 SCREW HEXWSHR 1/4-20X3/4 Price: $2.99
