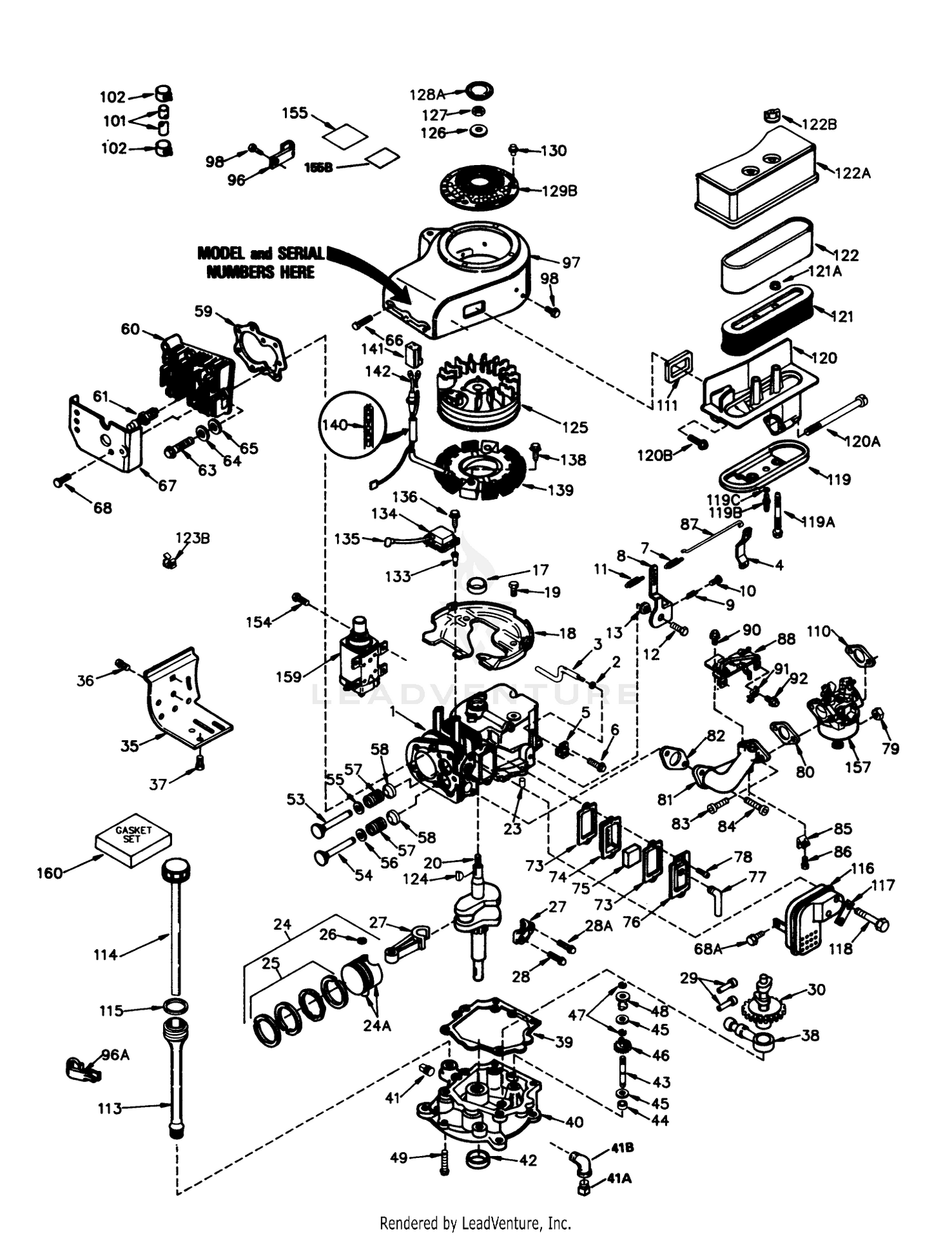

| Ref | Part Number | Description |
|---|
| 2 |
28277 |
Washer-Flat Price: Call Us |
| 3 |
35082 |
Rod, Governor Price: Call Us |
| 4 |
32651 |
Governor Lever Price: Call Us |
| 5 |
31335 |
Clamp-Lever, Governor Price: Call Us |
| 6 |
650548 |
Screw Price: Call Us |
| 7 |
34043 |
Spring, Extension Price: Call Us |
| 8 |
35202A |
Lever, Control (Incl. Ref. #11, 12, 13 110) Price: Call Us |
| 10 |
650777 |
Screw Price: Call Us |
| 11 |
35203 |
Spring, Control Price: Call Us |
| 12 |
30312 |
SCREW, HEX WASHER HD. Price: Call Us |
| 13 |
35550 |
Bell crank Price: Call Us |
| 17 |
35319 |
Seal-Oil Price: Call Us |
| 18 |
35326 |
Baffle-Blower Housing Price: Call Us |
| 19 |
650561 |
Screw (1/4-20x19/32) Price: Call Us |
| 20 |
35380 |
Crankshaft Price: Call Us |
| 23 |
27652 |
Pin-Dowel Price: Call Us |
| 24 |
34552 |
Piston, Pin Ring Assy.(Std.) (Incl. Ref. #24A, 25 26) Price: Call Us |
| 24 |
34553 |
Piston, Pin Ring Assy. (.010 oversize) (Incl. Ref. #24A, 25 26) Price: Call Us |
| 24 |
34554 |
Piston, Pin Ring Assy. (.020 oversize) (Incl. Ref. #24A, 25 26) Price: Call Us |
| 24A |
34329A |
Piston Pin Assy. (Std.) (Incl. Ref. #26) Price: Call Us |
| 24A |
34330A |
Piston Pin Assy. (.010 oversize) (Incl. Ref. #26) Price: Call Us |
| 24A |
34331A |
Piston Pin Assy. (.020 oversize) (Incl. Ref. #26) Price: Call Us |
| 25 |
34332 |
Ring Set (Std.) Price: Call Us |
| 25 |
34333 |
Ring Set (.010" OS) Price: Call Us |
| 25 |
34334 |
Ring Set (.020" OS) Price: Call Us |
| 26 |
702895 |
DISCONTINUED This part replaces 27888. Price: Call Us |
| 27 |
35373A |
Rod Assy., Connecting (Incl. Ref. #28 28A) Price: Call Us |
| 28 |
650908 |
Bolt-Rod Price: Call Us |
| 28A |
650882 |
Bolt-Rod Price: Call Us |
| 29 |
34034 |
Lifter-Valve Price: Call Us |
| 30 |
35381 |
Camshaft (Mechanical Compression Release) Price: Call Us |
| 35 |
33273A |
Extension-Housing, Blower Price: Call Us |
| 36 |
30063 |
MVP FILTER KIT-GM580D (2008- ) Price: $301.25 |
| 37 |
650128 |
Screw Price: Call Us |
| 38 |
31356 |
Pump, Oil Price: Call Us |
| 39 |
35262 |
Cylinder Cover Gasket Price: Call Us |
| 40 |
35382A |
Flange Assy., Mounting (Incl. Ref.#41, 41A, 42, 43 45) Price: Call Us |
| 41 |
31927 |
Plug, Drain Price: Call Us |
| 41A |
28483 |
Plug, Oil drain Price: Call Us |
| 42 |
35319 |
Seal-Oil Price: Call Us |
| 43 |
30668 |
Shaft, Governor Price: Call Us |
| 44 |
31707A |
Spacer Assy., Governor (Incl. Ref. #108) Price: Call Us |
| 45 |
35479 |
Washer Price: Call Us |
| 46 |
35378 |
Gear Assy., Governor (Incl. Ref. #45) Price: Call Us |
| 47 |
29193 |
Ring-Retaining Price: Call Us |
| 48 |
30588A |
Spool-Governor Price: Call Us |
| 49 |
650833 |
Screw (1/4-20x1-3/16) Price: Call Us |
| 53 |
27878A |
Valve, Exhaust (Std.)(Incl. #9) Price: Call Us |
| 53 |
27880A |
Valve, Exhaust (1/32" Oversize)(Incl. Ref. #9) Price: Call Us |
| 54 |
34035 |
Valve, Intake (Std.) (Incl. Ref. #58) Price: Call Us |
| 54 |
34036 |
Valve, Intake (1/32" oversize) (Incl. Ref. #58) Price: Call Us |
| 55 |
27882 |
Cap-Spring, Valve Price: Call Us |
| 56 |
34689 |
Seal-Intake Valve Price: Call Us |
| 57 |
27881 |
Spring-Valve Price: Call Us |
| 58 |
32581 |
Keeper-Spring, Valve Price: Call Us |
| 59 |
34041A |
Gasket-Cylinder Head Price: Call Us |
| 60 |
34030 |
Head Cylinder Price: Call Us |
| 61 |
34251 |
Plug, Spark (Champion RCJ-8) Price: Call Us |
| 63 |
650694A |
Screw (5/16-18 X 2) Price: Call Us |
| 64 |
650690 |
Washer-Belleville Price: Call Us |
| 65 |
650691 |
Washer-Flat Price: Call Us |
| 66 |
650788 |
Screw (5/16-18x3/4) Price: Call Us |
| 67 |
33272A |
Cover-Cylinder Head Price: Call Us |
| 68 |
650738 |
Screw (1/4-20 X 5/8) Price: Call Us |
| 68A |
650802 |
Screw (1/2-20x5/8) Price: Call Us |
| 73 |
27896A |
Gasket-Cover, Valve Price: Call Us |
| 74 |
28423 |
Body-Breather Price: Call Us |
| 75 |
28424 |
Element-Breather Price: Call Us |
| 76 |
28425 |
Cover-Valve Price: Call Us |
| 77 |
35350 |
Tube-Breather Price: Call Us |
| 78 |
650128 |
Screw Price: Call Us |
| 79 |
29752 |
Nut and Lock Washer (1/4-28) Price: Call Us |
| 80 |
33263 |
Gasket-Carburetor To Intake Pipe Price: Call Us |
| 81 |
34926 |
Pipe, Intake Price: Call Us |
| 82 |
27915A |
Gasket-Pipe, Intake Price: Call Us |
| 83 |
30088A |
Screw (1/4-28x1) Price: Call Us |
| 84 |
650378 |
Screw (T-30, 5/16-18x1-3/32) Price: Call Us |
| 85 |
33261 |
Bracket, Intake Pipe Price: Call Us |
| 86 |
650738 |
Screw (1/4-20 X 5/8) Price: Call Us |
| 87 |
33860 |
Link, Throttle Price: Call Us |
| 88 |
35201 |
Bracket Assy., Control Price: Call Us |
| 90 |
30200 |
Screw (10-24 x 9/16) Price: Call Us |
| 91 |
27793 |
Conduit Price: Call Us |
| 92 |
28942 |
Screw (10-32 x 3/8) Price: Call Us |
| 96 |
33997 |
Clip Oil Tube Price: Call Us |
| 96A |
35437 |
Clip, Oil fill tube Price: Call Us |
| 97 |
34094A |
Housing, Blower Price: Call Us |
| 98 |
29747B |
Screw Price: Call Us |
| 101 |
30705 |
Line-Fuel Price: Call Us |
| 102 |
26460 |
Clamp-Line, Fuel Price: Call Us |
| 110 |
33629 |
Clutch Arm Assembly Price: Call Us |
| 111 |
35408 |
Gasket, Blower Housing Price: Call Us |
| 113 |
35574 |
Tube-Fill, Oil Price: Call Us |
| 114 |
35576 |
Dipstick, Oil Price: Call Us |
| 115 |
35499 |
O-Ring Price: Call Us |
| 116 |
33944A |
Muffler Assy. Price: Call Us |
| 118 |
650729 |
Screw, Hex Hd. Price: Call Us |
| 119 |
35417 |
Plate, Support Price: Call Us |
| 119A |
650885 |
Screw, Truss Hd. Price: Call Us |
| 119B |
35406 |
Fitting, Breather Tube Price: Call Us |
| 120 |
35538 |
Body, Air Cleaner Price: Call Us |
| 120A |
650834 |
Screw, Fil. Hd. Price: Call Us |
| 120B |
650887 |
Screw, Hex Washer Hd. Self-drill, Self-tap Price: Call Us |
| 121 |
35403 |
Element, Air Cleaner (Incl. Ref. #121A) Price: Call Us |
| 121A |
650825 |
Nut Lockwasher Price: Call Us |
| 122 |
35404 |
Filter, Poly Pre-cleaner Price: Call Us |
| 122A |
35405 |
Cover, Air Cleaner Price: Call Us |
| 122B |
650886 |
Nut, Wing Price: Call Us |
| 124 |
32589 |
Key-Flywheel Price: Call Us |
| 125 |
611093 |
Flywheel ASM Price: Call Us |
| 126 |
650880 |
Washer-Belleville Price: Call Us |
| 127 |
650881 |
Nut-Flywheel Price: Call Us |
| 128A |
34113 |
Plug, Screen Price: Call Us |
| 129B |
35411 |
Screen, Starter Price: Call Us |
| 133 |
650872 |
Stud Price: Call Us |
| 134 |
35135 |
Solid State ASM Price: Call Us |
| 135 |
610118 |
Cover-Spark Plug Price: Call Us |
| 136 |
650814 |
Screw Price: Call Us |
| 138 |
650873 |
Screw (1/4-20 x 3/4) Price: Call Us |
| 139 |
611113 |
Coil Assy., Alternator (3 Amp D.C.) (Incl. Ref. #140, 141 142) Price: Call Us |
| 140 |
610935 |
Diode Price: Call Us |
| 141 |
610921 |
Connector Body Price: Call Us |
| 142 |
610922 |
Terminal-Female Price: Call Us |
| 154 |
30063 |
MVP FILTER KIT-GM580D (2008- ) Price: $301.25 |
| 155 |
34686 |
Decal-Name Price: Call Us |
| 155B |
34387 |
Decal, Instruction Price: Call Us |
| 157 |
632238 |
Carburetor (Incl. Ref. #80) Price: Call Us |
| 159 |
33605 |
Pin Price: Call Us |
