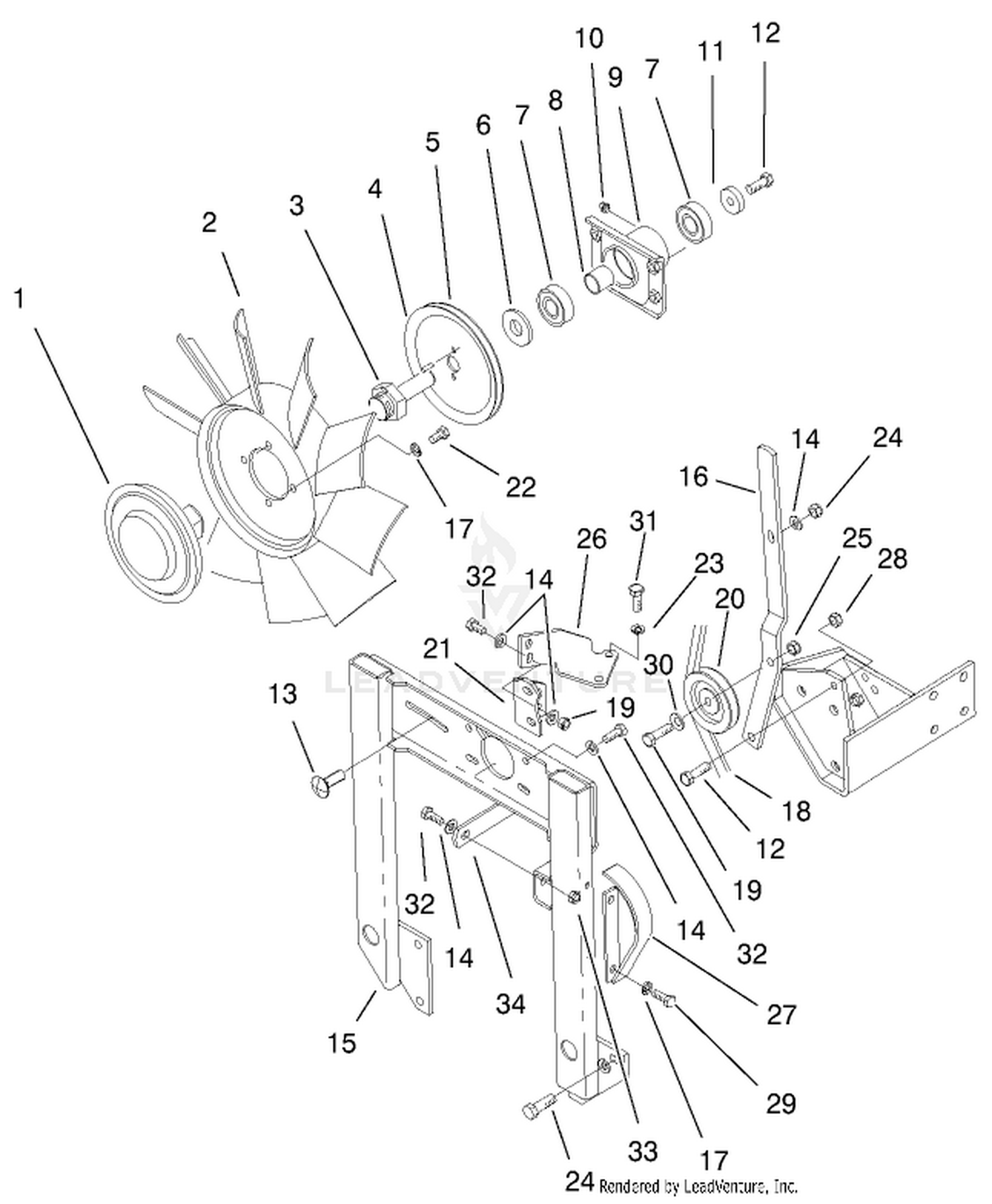

| Ref | Part Number | Description |
|---|
| 1 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 2 |
75-3780 |
FAN-ENGINE Price: $367.12 |
| 3 |
75-6380 |
SHAFT-FAN Price: $141.82 |
| 4 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 5 |
98-9313 |
PULLEY-FAN Price: $18.49 |
| 6 |
47-0110 |
SPACER-SPINDLE Price: $1.42 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
75-5310 |
SPACER-BEARING Price: $4.41 |
| 9 |
75-4450 |
HUB This part replaces 75-4450-03. Price: $205.03 |
| 10 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 11 |
67-1630 |
SPACER Price: $28.84 |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
98-4530-03 |
SUPPORT-FAN Price: $349.24 |
| 16 |
98-4575-03 |
LEVER-IDLER, FAN Price: $43.57 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
98-9312 |
V-BELT Price: $28.51 |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 20 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 21 |
98-9740 |
BRACKET-FAN, SUPPORT Price: $42.56 |
| 22 |
322-2 |
SCREW-HH Price: $0.69 |
| 23 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 25 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 26 |
98-9741 |
BRACKET-MOUNT, FAN Price: $44.53 |
| 27 |
98-4561-03 |
SHIELD-ALTERNATOR Price: $56.98 |
| 28 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
33114-016 |
SCREW-HH Price: $0.27 |
| 32 |
322-4 |
SCREW-HH Price: $0.35 |
| 33 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
