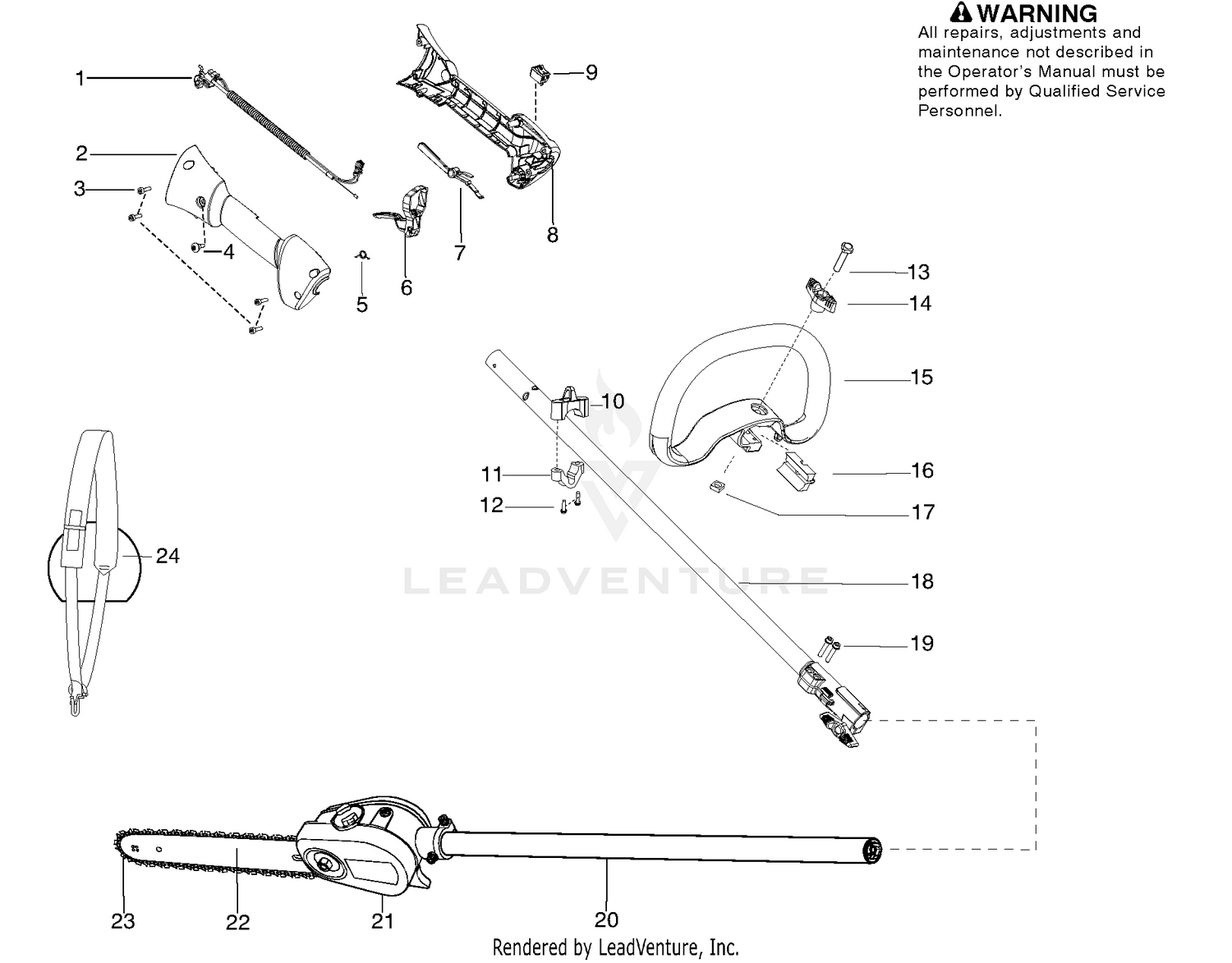

| Ref | Part Number | Description |
|---|
| 1 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 1 |
576139401 |
ASSY CABLE / WIRE HARNESS Price: $19.99 |
| 2 |
33006-00 |
NUT-HF Price: $1.22 |
| 2 |
545223001 |
HSG THROTTLE RIGHT HVA Price: $9.99 |
| 3 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 3 |
93-5440-03 |
BUMPER ASM This part replaces 93-5440. Price: $222.85 |
| 4 |
33106-025 |
SCREW-HHF Price: $1.20 |
| 4 |
530015805 |
SCREW-10-14 X 1/2 PLASTITE Price: $2.99 |
| 5 |
2410-42 |
CAP-END Price: $11.62 |
| 5 |
530016454 |
SPRING TRIGGER Price: $4.99 |
| 6 |
33004-00 |
NUT-HF Price: $0.34 |
| 6 |
574355301 |
TRIGGER THROTTLE HVA ORANGE Price: $4.99 |
| 7 |
574355401 |
THROTTLE LOCKOUT HVA ORANGE Price: $4.99 |
| 7 |
93-5450 |
NUT-CLINCH Price: $4.13 |
| 8 |
545223201 |
HSG THROTTLE LEFT HVA Price: $5.99 |
| 8 |
95-5622 |
HANGER-RUBBER This part replaces 93-5113. Price: $34.18 |
| 9 |
545049311 |
Switches This part replaces 545049309. Price: $5.99 |
| 9 |
93-5023 |
SPACER Price: $8.77 |
| 10 |
545113301 |
CLAMP HARNESS UPPER Price: $4.99 |
| 10 |
93-5594-03 |
GUARD-MUFFLER ASM This part replaces 93-5594. Price: $220.91 |
| 11 |
33104-035 |
SCREW-HHF Price: $0.88 |
| 11 |
545056601 |
CLAMP HARNESS LOWER Price: $3.99 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 12 |
530015940 |
SCREW Price: $2.99 |
| 13 |
725238151 |
SCREW M6X55 Price: $3.99 |
| 13 |
93-5946 |
MUFFLER W/ SPARK ARRESTOR Price: $757.04 |
| 14 |
2112-6 |
CLAMP-MUFFLER Price: $7.53 |
| 14 |
503879001 |
KNOB Price: $3.99 |
| 15 |
545180809 |
ASSY LOOP HANDLE This part replaces 545144303. Price: $34.99 |
| 16 |
503940301 |
SPACER PLASTIC Price: $9.99 |
| 17 |
502197101 |
NUT Price: $0.25 |
| 19 |
503200725 |
SCREW Price: $2.99 |
| 20 |
576495801 |
KIT DRIVE SHAFT PRUNER Price: $499.99 |
| 21 |
537247103 |
Cutting Head This part replaces 537247101. Price: $249.99 |
| 23 |
503306845 |
Chain - 12" Price: $15.65 |
| 24 |
537216202 |
Harness - Diagonal with sign Price: $8.99 |
