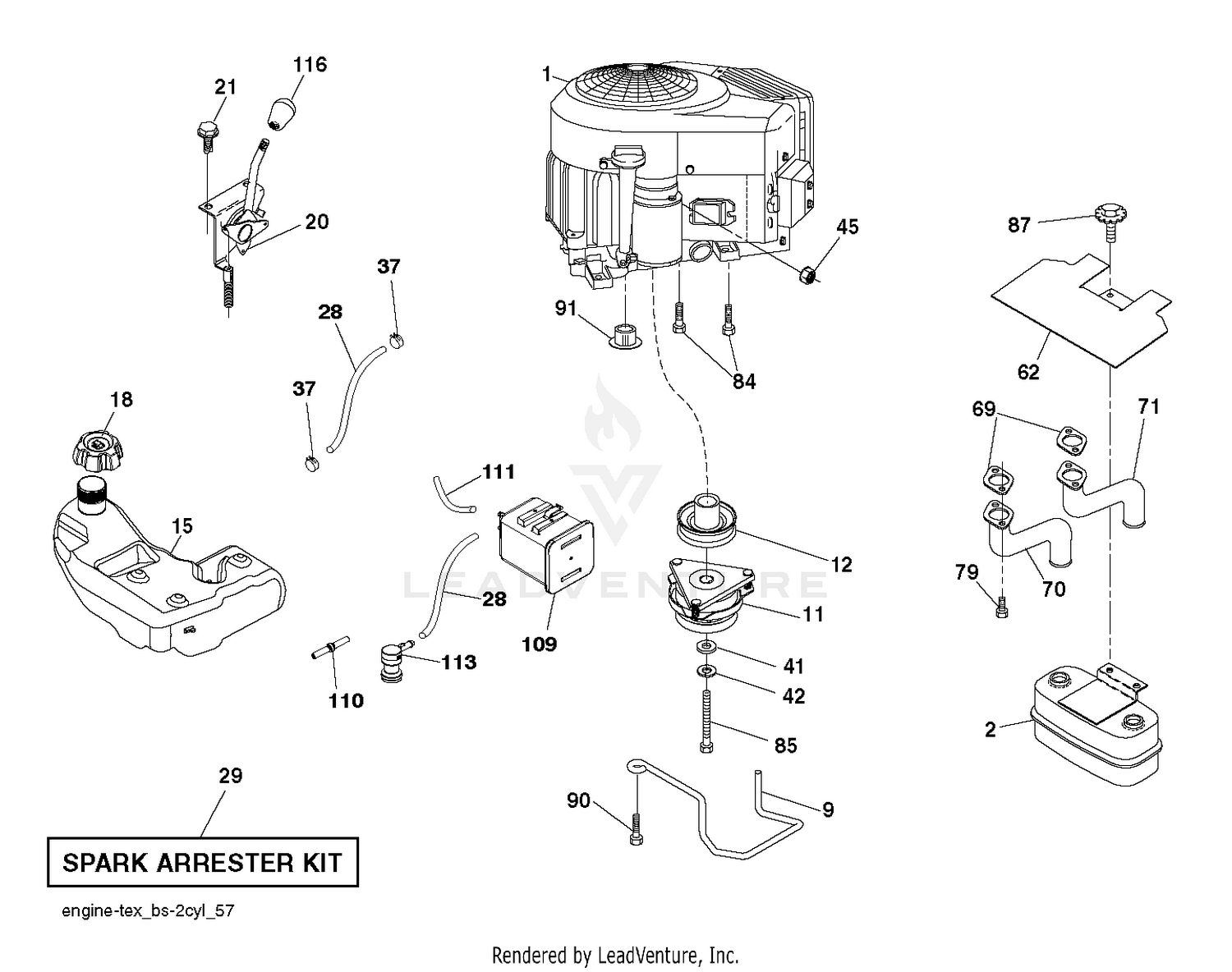

| Ref | Part Number | Description |
|---|
| 1 |
2412-110 |
CLAMP-BAND/SCREW Price: $3.60 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
95-6459 |
HOSE-INLET, AIR Price: $98.91 |
| 3 |
95-6474-03 |
DISCONTINUED This part replaces 95-6474. Price: Call Us |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 6 |
69-9710 |
NUT-HEX Price: $3.58 |
| 7 |
69-9420 |
EXHAUST MUFFLER Price: $712.07 |
| 8 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
95-6463-03 |
DISCONTINUED This part replaces 95-6463. Price: Call Us |
| 10 |
323-6 |
SCREW-HH Price: $0.66 |
| 11 |
33115-025 |
SCREW-HH Price: $0.61 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
322-3 |
SCREW-HH Price: $0.79 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
98-0833 |
BAND-CLEANER, AIR Price: $91.15 |
| 14 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
529999102 |
TANK ASSY W/CAP 3 GAL CARB This part replaces 532414151. Price: $329.99 |
| 16 |
33114-020 |
SCREW-HH Price: $0.28 |
| 17 |
95-6462-03 |
BRACKET-CLEANER, AIR This part replaces 95-6462. Price: $93.29 |
| 18 |
32128-25 |
NUT-HF Price: $3.19 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 19 |
98-0800 |
AIR CLEANER ASM Price: $531.86 |
| 20 |
586219601 |
CONTROL.THROTTLE/CHOKE.PRO.45 This part replaces 532424340. Price: $54.99 |
| 20 |
95-6457 |
HOSE-OUTLET, AIR Price: $66.10 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
95-6461 |
TUBE-INTAKE Price: $131.60 |
| 22 |
95-6458 |
HOSE-OUTLET, AIR Price: $66.00 |
| 23 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 24 |
98-7347 |
CLAMP-HOSE Price: $8.40 |
| 25 |
32128-21 |
NUT-HF Price: $0.39 |
| 26 |
95-6464-03 |
DISCONTINUED This part replaces 95-6464. Price: Call Us |
| 27 |
69-1940 |
INDICATOR-ELECTRICAL Price: $80.62 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 110 |
532414118 |
VALVE.ASM.ANTI-SLOSH Price: $19.99 |
| 111 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
