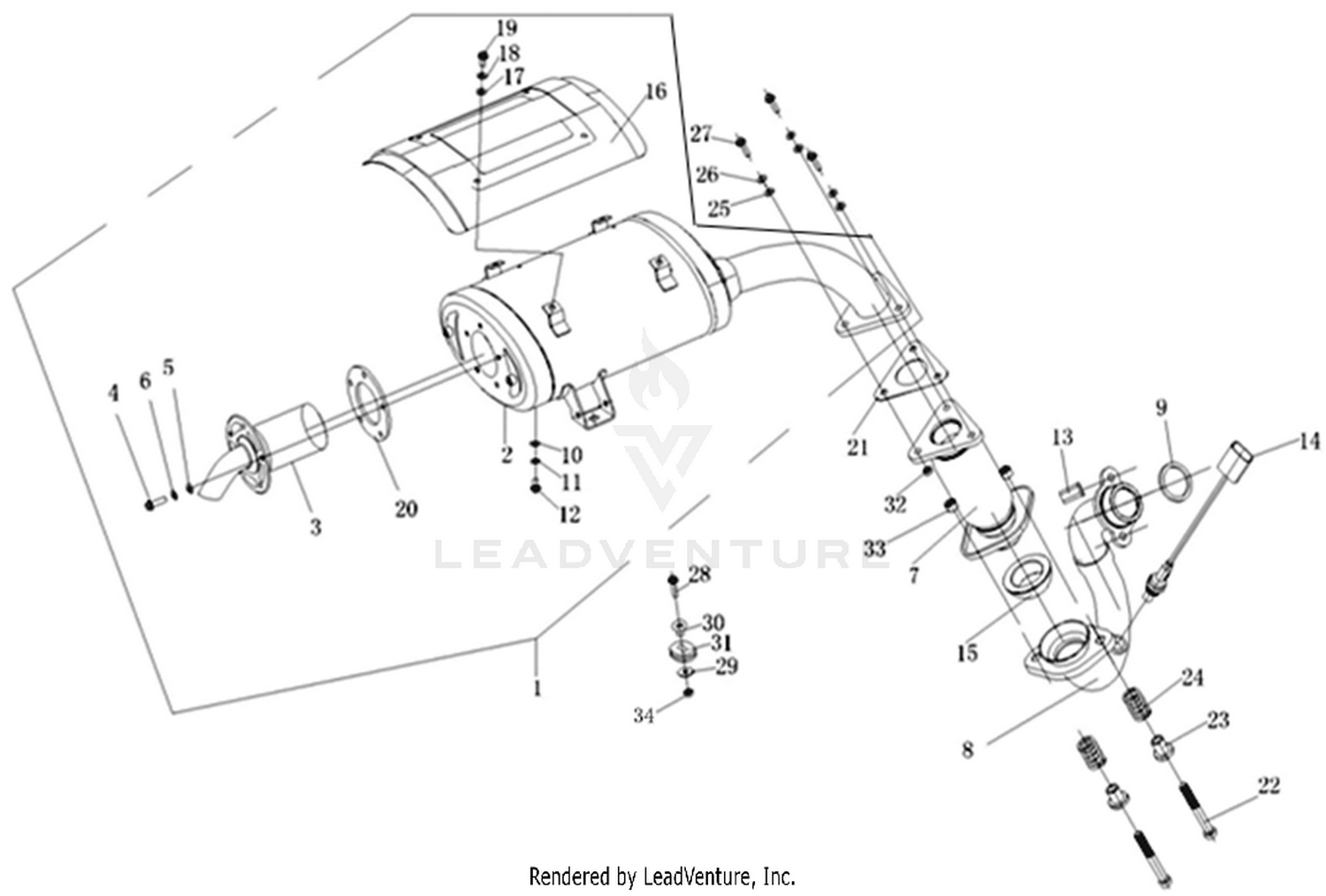

| Ref | Part Number | Description |
|---|
| 1 |
503-02087 |
MUFFLER ASSEMBLY Price: $697.06 |
| 2 |
503-02066 |
MUFFLER Price: $591.99 |
| 3 |
503-02242 |
TAILPIPE Price: $74.49 |
| 4 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 5 |
503-00019 |
FLAT WASHER 6 Price: $3.58 |
| 6 |
503-00879 |
SPRING WASHER Price: $4.26 |
| 7 |
503-02745 |
FLEX EXHAUST PIPE I Price: $212.14 |
| 8 |
503-02850 |
EXHAUST PIPE Price: $336.89 |
| 9 |
503-02889 |
EXHAUST GASKET Price: $12.41 |
| 10 |
503-01395 |
WASHER 10 Price: $3.94 |
| 11 |
503-00064 |
SPRING WASHER Price: $5.36 |
| 12 |
503-00248 |
HEXAGON BOLT M10X1.25X16 Not Available Price: |
| 13 |
503-02221 |
CAP NUT M8x22 Price: $7.40 |
| 14 |
503-00747 |
OXYGEN SENSOR ASSEMBLY-EFI Price: $152.28 |
| 15 |
503-02812 |
EXHAUST GASKET Price: $41.58 |
| 16 |
503-02864 |
MUFFLER HEAT SHIELD Price: $96.21 |
| 17 |
503-01536 |
WASHER - SPRING LOCK 8 Price: $3.98 |
| 18 |
503-02787 |
FLAT WASHER 6x18x1 Price: $3.64 |
| 19 |
503-01542 |
BOLT HEX SOCKET M6X16 Price: $3.19 |
| 20 |
503-02741 |
TAILPIPE GASKET Price: $3.92 |
| 21 |
503-02743 |
EXHAUST PIPE GASKET Price: $4.77 |
| 22 |
503-02739 |
HEX HEAD FLANGE BOLT M10X1.25X80 Price: $6.22 |
| 23 |
503-02742 |
EXHAUST SPACER Price: $4.13 |
| 24 |
503-00959 |
EXHAUST VALVE SPRING Price: $14.08 |
| 25 |
503-01411 |
WASHER 8 Price: $4.06 |
| 26 |
503-00005 |
SPRING WASHER-8 Price: $5.36 |
| 27 |
503-00299 |
HEXAGON FLANGE BOLT M8X30 Price: $6.89 |
| 28 |
503-01978 |
HEX FLANGE BOLT M6X25 Not Available Price: |
| 29 |
503-02023 |
FLAT WASHER 6X25X2 Price: $3.37 |
| 30 |
503-00082 |
BUSHING Price: $12.55 |
| 31 |
503-02844 |
RUBBER WASHER Price: $3.61 |
| 32 |
503-00002 |
HEXAGON FLANGE NUT M8 Price: $5.36 |
| 33 |
503-00895 |
NUT M10X1.25 Price: $6.10 |
