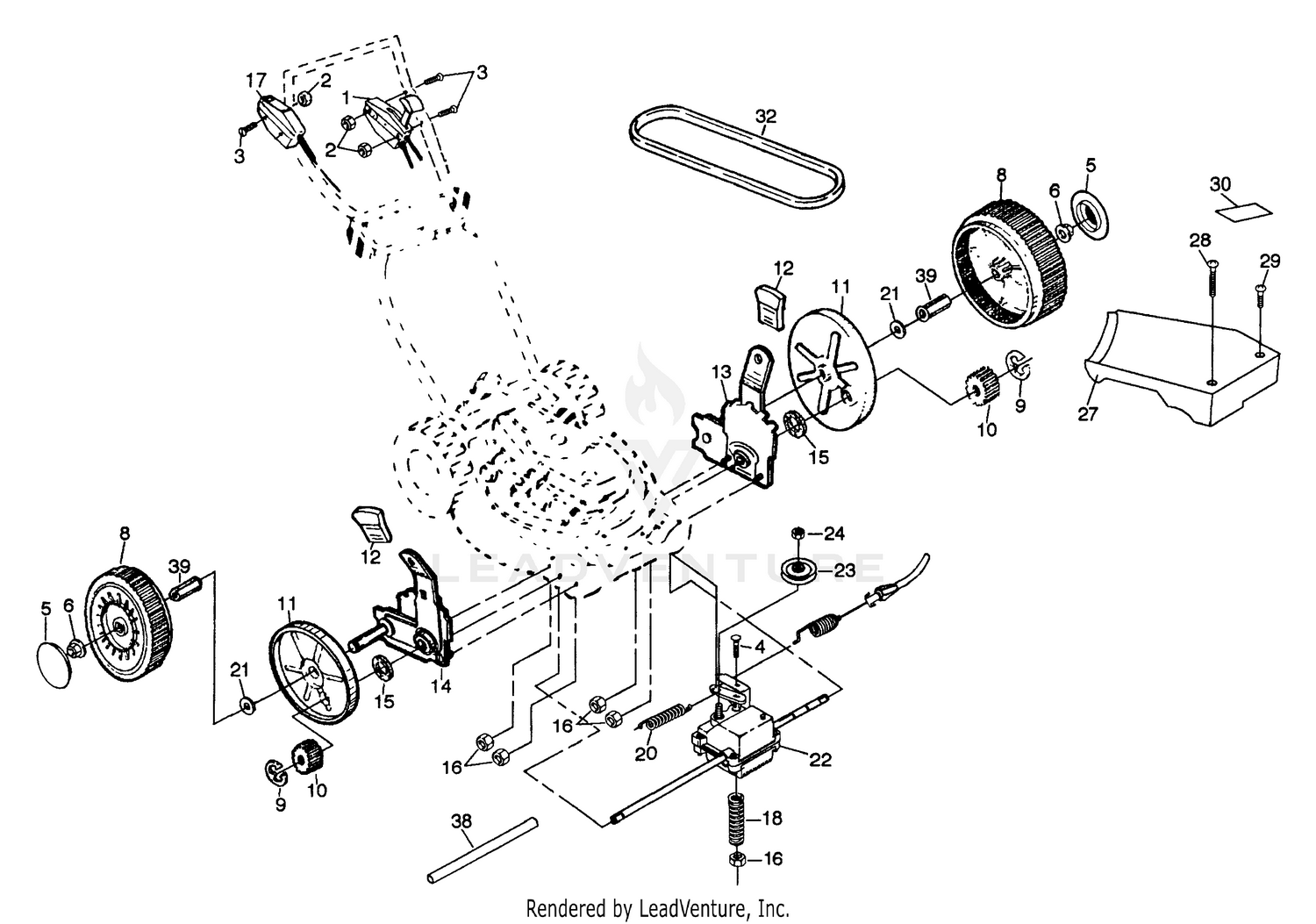

| Ref | Part Number | Description |
|---|
| 1 |
3220-3 |
NUT-HJ Price: $0.28 |
| 1 |
532142098 |
THROTTLE CONTROL This part replaces 532700616. Price: $32.77 |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 2 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
532700875 |
BOLT Price: $3.99 |
| 5 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 5 |
532850845 |
HUB CAP Price: $3.99 |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
532193144 |
KIT.WHEEL.8X2.RADIAL.BLACK This part replaces 532700953. Price: $27.99 |
| 8 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 9 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 9 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 10 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 10 |
532137054 |
PINION GEAR Price: $4.99 |
| 11 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 11 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532088080. Price: $5.99 |
| 12 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 12 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 13 |
532149957 |
Wheel Adjuster Assembly Left) Price: Call Us |
| 13 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 14 |
532149956 |
Wheel Adjuster Assembly (Left) Price: Call Us |
| 14 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 15 |
532088118 |
WASHER Price: $3.99 |
| 16 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 16 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 17 |
532148306 |
ENGINE ZONE CONTROL CABLE Price: $77.45 |
| 17 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 18 |
532137090 |
SPRING.EXTENSION Price: $4.99 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
532075192 |
SPRING Price: $4.99 |
| 20 |
75-6490 |
LEVER ASM Price: $78.45 |
| 21 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 21 |
532067725 |
WASHER FLUT Price: $5.99 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 22 |
532187211 |
TRANSMISSION 22RD This part replaces 532702511. Price: $89.99 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 23 |
532194126 |
DRIVEN PULLEY This part replaces 532137052. Price: $9.99 |
| 24 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 27 |
532700479 |
DRIVE COVER-GRAY Price: $5.83 |
| 28 |
532087866 |
SCREW PM Price: $3.90 |
| 28 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 29 |
532149746 |
SCREW.SLOT.TORX. This part replaces 532136797. Price: $5.99 |
| 29 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 30 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 30 |
532142072 |
DECAL DRIVE COVER Price: $6.99 |
| 31 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 32 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 32 |
532157769 |
KIT.SERVICE.BELT/SPRING. This part replaces 532137078. Price: $14.99 |
| 33 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 34 |
256-42 |
BUSHING Price: $7.03 |
| 35 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 36 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 37 |
75-2170-03 |
TUBE-CONTROL, PUMP This part replaces 75-2170. Price: $103.73 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 38 |
532086012 |
DRV SHAFT TUBE PM Price: $5.46 |
| 39 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 40 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 41 |
32121-50 |
PIN-SPRING Price: $1.21 |
