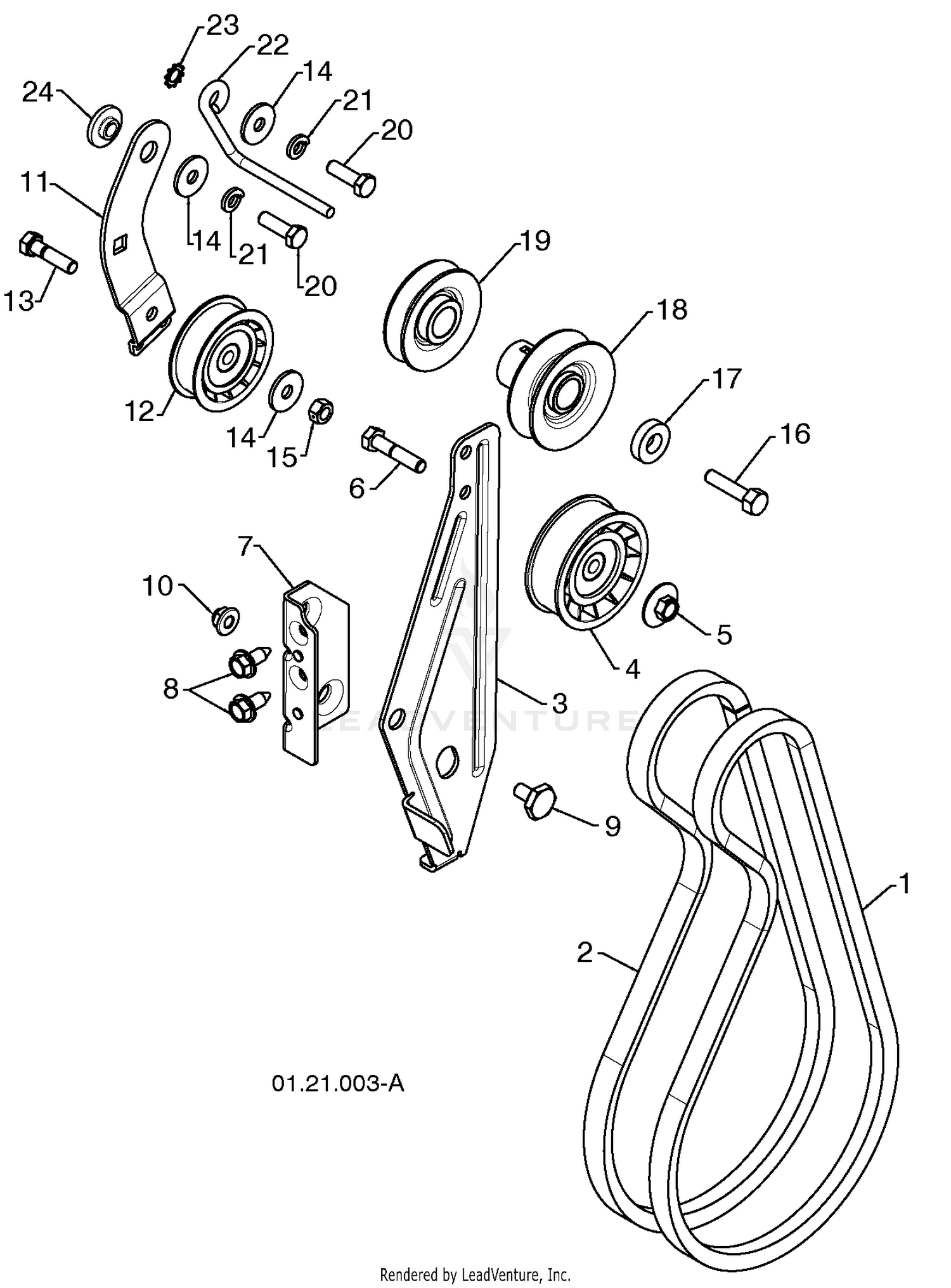

| Ref | Part Number | Description |
|---|
| 1 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 1 |
408007 |
IMPELLER BELT Price: Call Us |
| 2 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 2 |
419744 |
TRACTION BELT Price: Call Us |
| 3 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 3 |
423723X479 |
IDLER ARM BRACKET Price: Call Us |
| 4 |
180523X479 |
IDLER PULLEY Price: Call Us |
| 4 |
2412-133 |
CLAMP-R Price: $3.19 |
| 5 |
104-4620 |
SEAT Price: $273.15 |
| 5 |
426589 |
NUT 5/16-18 Price: Call Us |
| 6 |
100-8495-03 |
DISCONTINUED Price: Call Us |
| 6 |
74780524 |
SCREW 5/16-18 X 1 .50 Price: Call Us |
| 7 |
423990 |
IDLER BRACKET Price: Call Us |
| 8 |
100-8499 |
SEAL-FOAM Price: $15.83 |
| 8 |
428867 |
SCREW 5/16-18 X .625 Price: Call Us |
| 9 |
3250-4 |
SCREW Price: $1.78 |
| 9 |
424297 |
SHOULDER BOLT 5/16-18 X .500 Price: Call Us |
| 10 |
100-8502 |
LATCH-HINGE Price: $27.52 |
| 10 |
427942 |
NUT 5/16-18 NYLOCK Price: Call Us |
| 11 |
187786 |
TRACTION IDLER ARM Price: Call Us |
| 11 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 12 |
100-8459-03 |
DISCONTINUED Price: Call Us |
| 12 |
180522 |
TRACTION PULLEY Price: Call Us |
| 13 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 13 |
74780520 |
SCREW 5/16-18 X 1 .00 Price: Call Us |
| 14 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 14 |
59289 |
WASHER Price: Call Us |
| 15 |
3217-25 |
NUT-HEX Price: $0.25 |
| 15 |
73930500 |
NUT 5/16-18 Price: Call Us |
| 16 |
100-8463 |
SEAL-FOAM Price: $11.75 |
| 16 |
851084 |
SCREW 3/8-24 X 1.375 Price: Call Us |
| 17 |
100-8464 |
SPACER Price: $26.19 |
| 17 |
400026 |
WASHER Price: Call Us |
| 18 |
100-8501 |
PIN-CLEVIS Price: $5.22 |
| 18 |
426491 |
PULLEY ENG IMPELLER Price: Call Us |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
426490 |
PULLEY ENG TRACTION Price: Call Us |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
74610516 |
SCREW 5/16-18 X 1 .00 Price: Call Us |
| 21 |
10040500 |
LOCKWASHER 5/16 Price: Call Us |
| 21 |
9335054 |
PIN-HAIR Price: $1.49 |
| 22 |
155452 |
BELT GUIDE Price: Call Us |
| 23 |
11050500 |
LOCKWASHER 5/16 Price: Call Us |
| 25 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 26 |
100-8503-03 |
BRACKET-SEAT PROP Price: $16.42 |
| 27 |
100-8496-03 |
MOUNT-BRACKET, HINGE Price: $109.28 |
