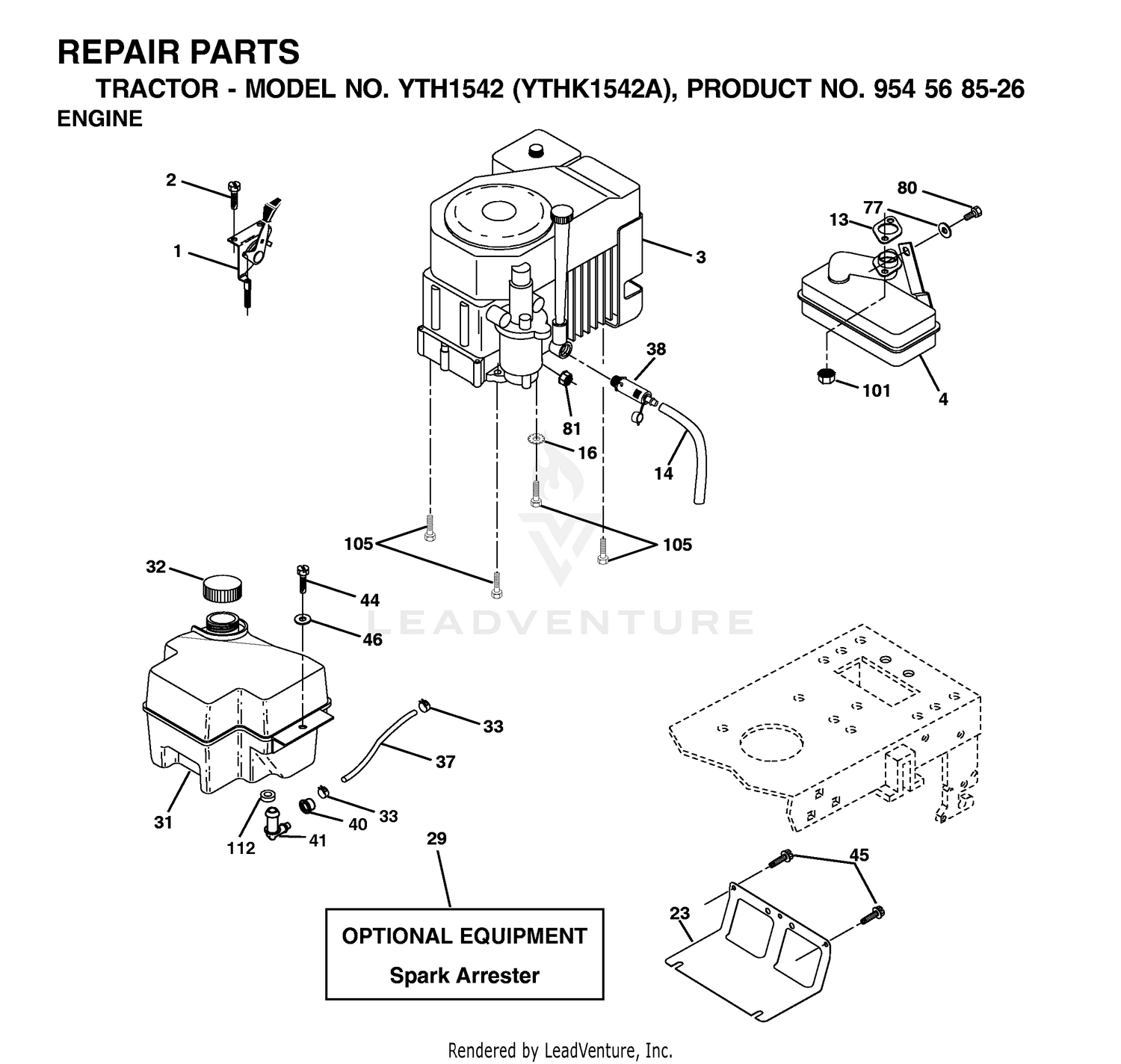

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT Price: $27.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 4 |
532159420 |
MUFFLER.KOHL.CV.SINGLE.W/PORT Price: $99.99 |
| 10 |
127-0479 |
CYLINDER HEAD COVER ASM Price: $273.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 20 |
105-3712 |
GASKET-COVER, HEAD Price: $24.05 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-7766 |
PIPE-RETURN, WATER Price: $9.95 |
| 31 |
532180645 |
GAS TANK 2GAL Price: $59.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
108-7060 |
COVER-BREATHER Price: $16.43 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
110-3846 |
O RING-BREATHER Price: $4.74 |
| 60 |
115-3042 |
CAP-SEALING Price: $2.54 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 70 |
127-0480 |
SPACER-BREATHER Price: $88.40 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 80 |
115-3044 |
SCREW-PAN HEAD Price: $0.54 |
| 80 |
874760508 |
Bolt, Hex Head, Fin. 5/16-18 x 1/2 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
127-0408 |
WASHER-LOCK, SPRING Price: $0.44 |
| 100 |
107-9075 |
PLUG-FILLER, OIL Price: $7.25 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 110 |
99-3446 |
O-RING Price: $7.11 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 120 |
127-0468 |
VALVE-PCV Price: $103.25 |
| 130 |
98-7528 |
O RING-COPPER Price: $1.79 |
| 140 |
98-9455 |
NUT-CAP Price: $4.77 |
| 150 |
98-9454 |
GASKET Price: $1.43 |
| 160 |
127-0469 |
TUBE-BREATHER Price: $37.64 |
| 170 |
127-0491 |
CLAMP-HOSE Price: $3.96 |
