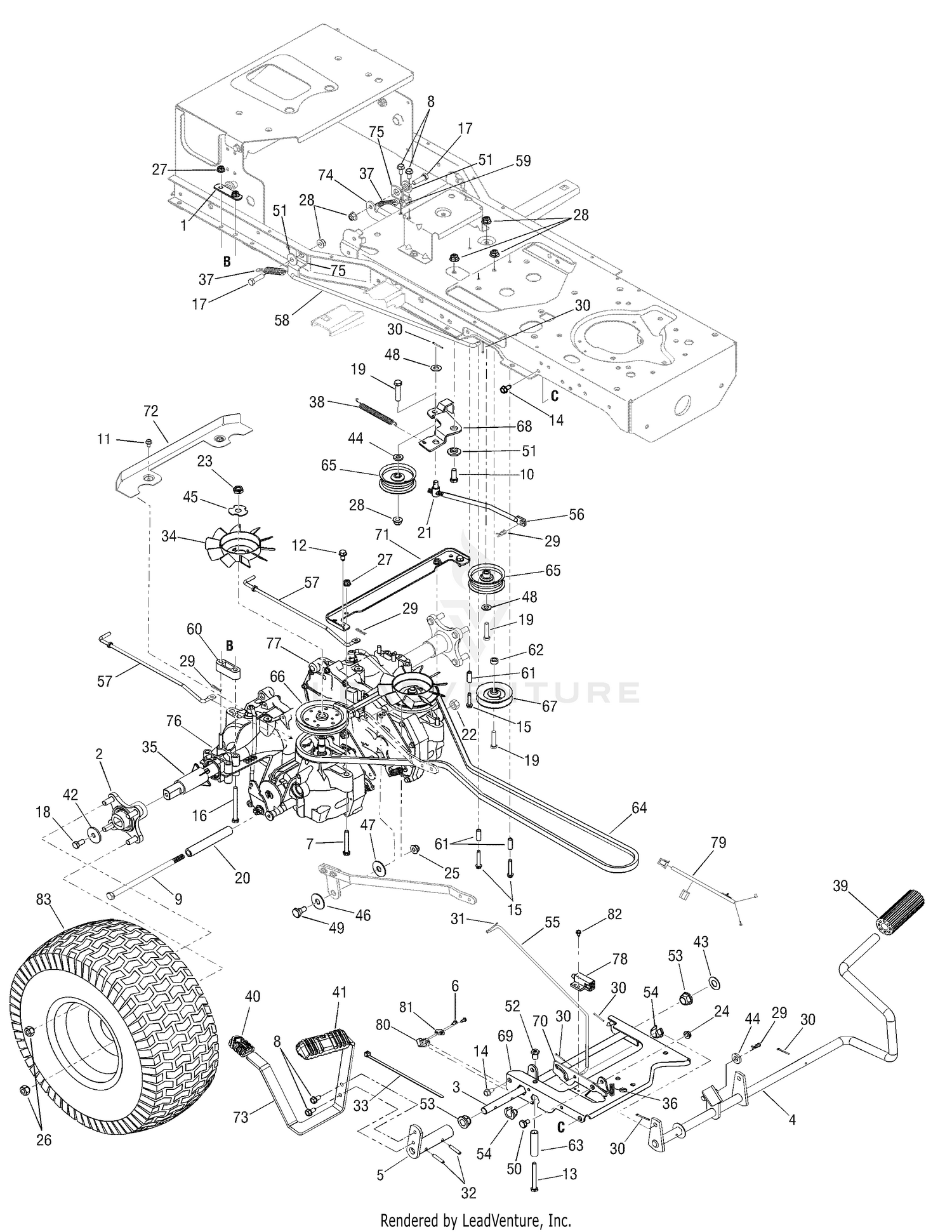

| Ref | Part Number | Description |
|---|
| 1 |
17840-0637 |
Transmission Mounting Bracket This part replaces 17840. Price: $10.12 |
| 1 |
59192 |
Cap, Valve, Tire Price: Call Us |
| 2 |
65139 |
Stem, Valve Price: Call Us |
| 2 |
918-04612 |
WHEEL HUB ASSEMBLY DD Not Available This part replaces 618-04612. Price: |
| 3 |
106228X421 |
Rim Assembly, Front Price: Call Us |
| 3 |
647-04094 |
PEDAL CONTROL SHAFT ASSEMBLY Not Available Price: |
| 4 |
647-04141A |
BRAKE CONTROL ASSEMBLY Not Available This part replaces 647-04141. Price: |
| 5 |
106230X |
Tire, Front Price: Call Us |
| 5 |
683-04314B-0637 |
PEDAL BRACKET ASSEMBLY(POWDER BLACK) Not Available This part replaces 683-04314A. Price: |
| 6 |
710-0227 |
Screw, Hex Wash Hd. Tapp, #8-18 x .5 Price: $3.90 |
| 7 |
710-0395 |
Screw, Hex Cap, 5/16-18 x 2.25 Gr5 Price: $4.08 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
184708 |
Tire, Rear Price: Call Us |
| 9 |
710-04648 |
SCREW 7/16-14 x 8.50 GR5 Not Available Price: |
| 10 |
710-0514 |
Screw, Hex Cap, 3/8-16 x 1.0 Gr5 Price: $3.78 |
| 11 |
400404X421 |
Rim Assembly, Rear Price: Call Us |
| 11 |
710-0599 |
Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5 Price: $3.86 |
| 12 |
710-0607 |
Screw, Hex Wash Hd. Tapp, 5/16-18 x .5 Price: $6.06 |
| 13 |
710-0641 |
Screw, Hex Cap, 1/4-20 x 2.25 Gr5 Price: $3.66 |
| 14 |
710-0726 |
Screw, Hex Wash Hd. Tapp, 5/16-12 x .75 Price: $3.82 |
| 15 |
710-1026 |
Screw, Hex Wash Hd. Tapp, 1/4-20 x .75 Price: $5.94 |
| 16 |
710-1266 |
Screw, Hex Cap, 5/16-18 x 3.5 Gr5 Price: $8.66 |
| 17 |
710-3005 |
Screw, Hex Cap, 3/8-16 x 1.25 Gr5 Price: $3.61 |
| 18 |
710-3119 |
Screw, Hex Cap Lock, 3/8-16 x .75 Gr5 Price: $5.91 |
| 19 |
710-3144 |
Screw, Hex Cap, 3/8-16 x 2.0 Gr5 Price: $4.02 |
| 20 |
711-04554 |
SPACER .479 x .75 x 4.97 Not Available Price: |
| 21 |
911-0832 |
Ferrule, 3/8-24 x .375 This part replaces 711-0832. Price: $13.68 |
| 22 |
712-0290 |
Nut, Hex Lock, 7/16-14 GrA Price: $4.05 |
| 23 |
712-0346 |
Nut, Hex Jam Insert Lock, 1/2-20 Gr5 Price: $3.95 |
| 24 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 25 |
712-0375 |
Nut, Hex Lock, 3/8-16 Price: $4.02 |
| 26 |
712-3050 |
Nut, Lug, 7/16-14 Price: $9.17 |
| 27 |
712-04063 |
Nut, Hex Flange Insert Lock, 5/16-18 GrF Price: $3.56 |
| 28 |
712-04065 |
Nut, Hex Flange Insert Lock, 3/8-16 GrF Price: $3.68 |
| 29 |
714-0104 |
Pin, Internal Cotter Price: $3.90 |
| 30 |
714-0111 |
Pin, Cotter, 3/32 x 1/0 Price: $4.20 |
| 31 |
714-04040 |
Pin, Bowtie Cotter Price: $1.28 |
| 32 |
715-0143 |
Pin, Spirol, .25 x 1.25 Price: $4.04 |
| 33 |
725-0157 |
Tie, Cable Price: $3.46 |
| 34 |
HG-51362 |
HYDRO FAN-I SER This part replaces 731-05846. Price: $19.54 |
| 35 |
731-06274 |
AXLE SLEEVE 1.02 ID x 2.60 LG Not Available Price: |
| 36 |
732-0335 |
SPRING Not Available Price: |
| 37 |
732-04495 |
EXTENSION SPRING .59 OD x 5.40 LG Not Available Price: |
| 39 |
735-0239A |
FOOT PAD 4.0" LG This part replaces 735-0239. Price: $10.76 |
| 40 |
735-04117 |
Pad, Reverse Pedal Price: $5.68 |
| 41 |
735-04118A |
Pad, Pedal, Forward This part replaces 735-04118. Price: $12.95 |
| 42 |
736-0227 |
Washer, Flat, .39 x 1.5 x .134 Price: $5.78 |
| 43 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 44 |
736-3010 |
Washer, Flat, .407 x .812 x .135 HT Price: $4.02 |
| 45 |
736-04263 |
Washer, Hydro Lock Price: $5.94 |
| 46 |
736-3027 |
FLAT WASHER Not Available Price: |
| 47 |
736-3039 |
Washer, Flat, .406 x 1.5 x.105 Price: $4.42 |
| 48 |
736-3050 |
Washer, Flat, .406 x .812 x .051 Price: $3.90 |
| 49 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 50 |
938-0155 |
Shoulder, Screw .437 This part replaces 738-0155. Price: $6.01 |
| 51 |
938-0347 |
Shld. Spacer .625" I.D. This part replaces 738-0347. Price: $8.93 |
| 52 |
738-04240 |
Nut, Shoulder, .375 Dia x .5 Price: $5.88 |
| 53 |
941-0225 |
Bearing, Hex Flange This part replaces 741-0225. Price: $6.55 |
| 54 |
741-3065B |
Bearing, Hex Flange, .625 ID Split Price: $7.45 |
| 55 |
747-04562A |
Rod, Park Brake Price: $14.90 |
| 56 |
747-04598A |
DRIVE ENGAGEMENT ROD Not Available Price: |
| 57 |
747-04729 |
BYPASS RODS Not Available Price: |
| 58 |
747-04833 |
BRAKE ROD (RH) Not Available Price: |
| 59 |
747-04834 |
BRAKE ROD (LH) Not Available Price: |
| 60 |
748-04155 |
SPACER Not Available Price: |
| 61 |
750-04456 |
Spacer, .26 x .372 x 1.42 Price: $6.20 |
| 62 |
750-04776 |
Spacer, .38 x .625 x .265 Price: $4.75 |
| 63 |
750-05026 |
SPACER-.375 x .500 x 2.0 Not Available Price: |
| 64 |
954-04134 |
V-Belt This part replaces 754-04134. Price: $38.46 |
| 65 |
756-04224 |
Pulley, Flat Idler, 2.75 Price: $24.80 |
| 66 |
756-04274 |
Pulley, V Type, 4.5 Price: $55.34 |
| 67 |
756-04325 |
Pulley, V Type Idler, 3.06 Price: $22.60 |
| 68 |
783-04570B-0637 |
Idler Arm This part replaces 783-04570A. Price: $17.04 |
| 69 |
783-04881A-0637 |
SUPPORT BRACKET Not Available This part replaces 783-04881A. Price: |
| 70 |
783-04981 |
PARK BRAKE BRACKET Not Available Price: |
| 71 |
783-05330A-0637 |
Support Bracket This part replaces 783-05330A. Price: $36.37 |
| 72 |
783-05473-0637 |
BELT KEEPER BRACKET Not Available This part replaces 783-05473. Price: |
| 73 |
783-05880A-0637 |
HYDRO DRIVE PEDAL Not Available This part replaces 783-05880. Price: |
| 74 |
783-05836-0637 |
PIVOT BRACKET (LH) Not Available This part replaces 783-05836. Price: |
| 75 |
783-05839-0637 |
PIVOT BRACKET Not Available This part replaces 783-05839. Price: |
| 76 |
918-04339A |
Transmission, Hydro RH Price: $1,607.45 |
| 77 |
918-04342A |
Transmission, Hydro LH Price: $1,607.45 |
| 78 |
725-04363 |
Switch, Interlock (Brake) Price: $13.25 |
| 79 |
725-04374 |
REVERSE JUMPER HARNESS Not Available Price: |
| 80 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 81 |
926-0320 |
Plate, Insulator Nut This part replaces 726-0320. Price: $6.01 |
| 82 |
738-04237A |
Screw, Shoulder, #10-32 : .5 Price: $5.30 |
