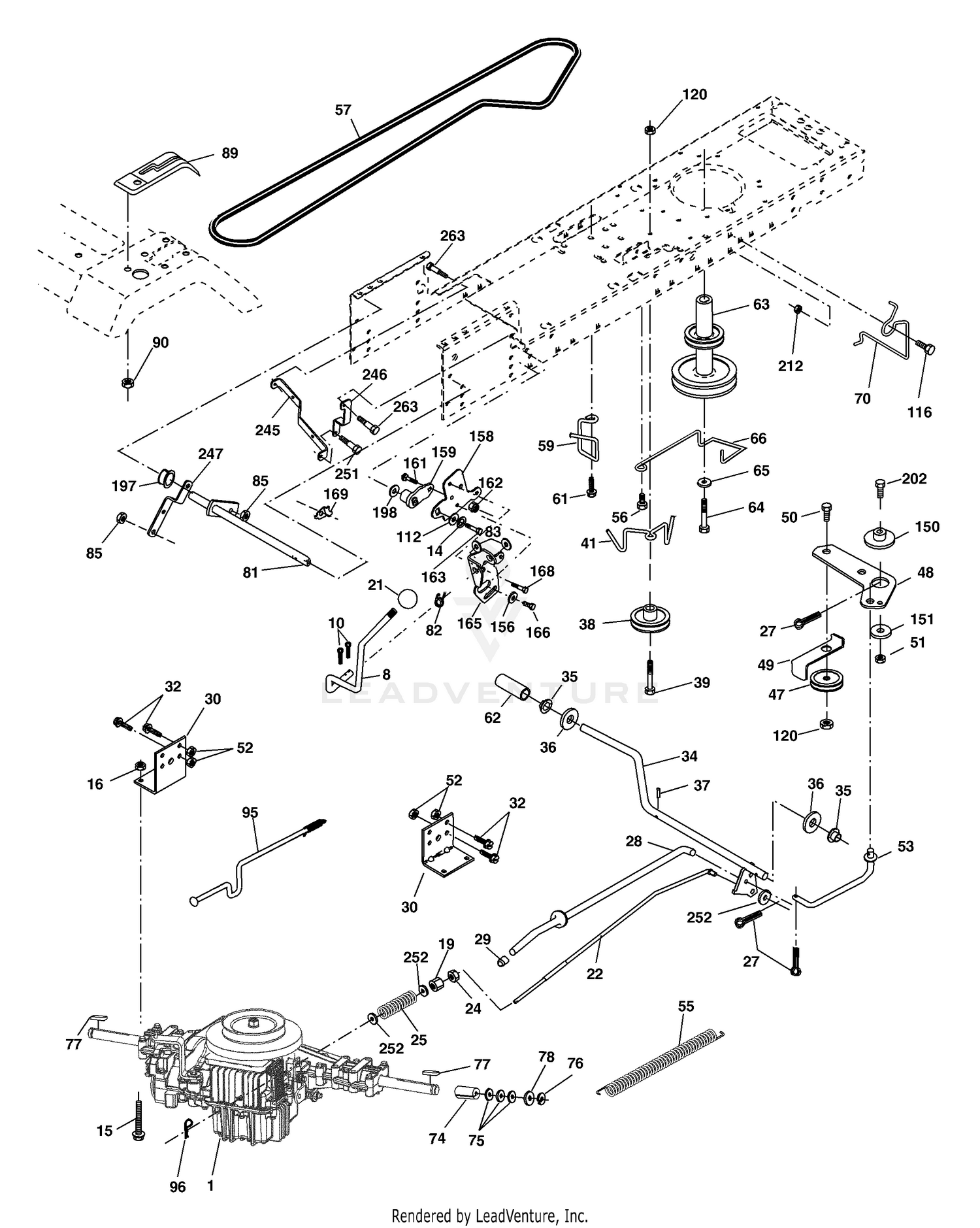

| Ref | Part Number | Description |
|---|
| 1 |
104-3967 |
CABLE-CONTROL, THROTTLE Price: $58.01 |
| 2 |
93-6743 |
STOP-THROTTLE Price: $8.04 |
| 3 |
104-4075-03 |
PLATE-LATCH Price: $9.90 |
| 4 |
106-9277 |
MODULE-CONTROL, STANDARD This part replaces 105-8505. Price: $475.18 |
| 5 |
32144-110 |
SCREW-HWH Price: $1.29 |
| 6 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 7 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 8 |
165619 |
Rod Shift Price: Call Us |
| 8 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 9 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 10 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 CAD Price: Call Us |
| 11 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 12 |
100-8070 |
LAMP-WARNING Price: $38.50 |
| 13 |
100-8071 |
LAMP-WARNING Price: $38.50 |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
32128-44 |
NUT Price: $2.69 |
| 15 |
104-4076-03 |
PLATE-SPRING, KEEPER Price: $12.27 |
| 15 |
74490544 |
Bolt, Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 16 |
73800500 |
Nut Lock Hex W/Ins 5/16-18 unc Price: Call Us |
| 16 |
93-9998 |
SWITCH-PTO,ON-ON-NONE Price: $41.99 |
| 17 |
104-4077 |
WIRE-FORM Price: $25.80 |
| 18 |
94-5973 |
HOOK Price: $25.21 |
| 19 |
104-3991 |
DECAL Price: $91.98 |
| 19 |
73800600 |
Nut Lock Hex W/Wsh 3/8-16 unc Price: Call Us |
| 20 |
104-3864-03 |
PANEL-INSTRUMENT Price: $304.91 |
| 21 |
115-2292 |
TIMER-GLOW PLUG This part replaces 99-9666. Price: $331.94 |
| 21 |
140845 |
Knob, Round 1/2-13 Price: Call Us |
| 22 |
178141 |
Rod, Brake Hydro Price: Call Us |
| 22 |
32128-33 |
NUT-HF Price: $0.25 |
| 23 |
104-3994 |
DECAL Price: $87.51 |
| 24 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 24 |
73350600 |
Nut Price: Call Us |
| 25 |
104-4064 |
HARNESS-WIRE, MAIN Price: $563.37 |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 26 |
99-7435 |
RELAY Price: $32.43 |
| 27 |
104-4071 |
LIGHT-INDICATOR, AMBER Price: $46.39 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 28 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 29 |
323-4 |
SCREW-HH This part replaces 322-41. Price: $1.02 |
| 29 |
71673 |
Cap, Parking Brake Price: Call Us |
| 30 |
169592 |
Bracket, Transaxle Price: Call Us |
| 30 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc x 3/4 Price: Call Us |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Pin, Roll Price: Call Us |
| 38 |
179114 |
Pulley, Composite Price: Call Us |
| 39 |
72110622 |
Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5 Price: Call Us |
| 41 |
175556 |
Keeper, Belt Idler Price: Call Us |
| 47 |
127783 |
Pulley, Idler, V-Groove Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
178138 |
V-Belt, Ground Drive Price: Call Us |
| 59 |
169691 |
Keeper, Center Span Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover, Pedal Price: Call Us |
| 63 |
175410 |
Pulley, Engine Price: Call Us |
| 64 |
173937 |
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 70 |
134683 |
Guide Belt Price: Call Us |
| 74 |
137057 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 81 |
178139 |
Shaft Asm. Cross Hydro Price: Call Us |
| 82 |
123782X |
Spring Torsion T/A Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4-28 Price: Call Us |
| 89 |
169373X428 |
Console, Shift Price: Call Us |
| 90 |
142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 unc Price: Call Us |
| 95 |
178134 |
Disconnect Asm. Rod Bypass LTH Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 116 |
72140608 |
Bolt RDHD SQNK 3/8-16 unc x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16 ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Lt Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8" ID Price: Call Us |
| 198 |
169593 |
Washer Nyl 7/8 ID x .105 Price: Call Us |
| 202 |
72110614 |
Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
| 212 |
145212 |
Nut Hex flange Lock Price: Call Us |
| 245 |
178122 |
Strap Torque LH Price: Call Us |
| 246 |
178121 |
Strap Torque RH Price: Call Us |
| 247 |
181462 |
Link Shift Transaxle Price: Call Us |
| 251 |
17060516 |
Screw 5/16-18 x 1 Price: Call Us |
| 252 |
19131616 |
Washer 13/32 x 1 x 16 Ga. Price: Call Us |
