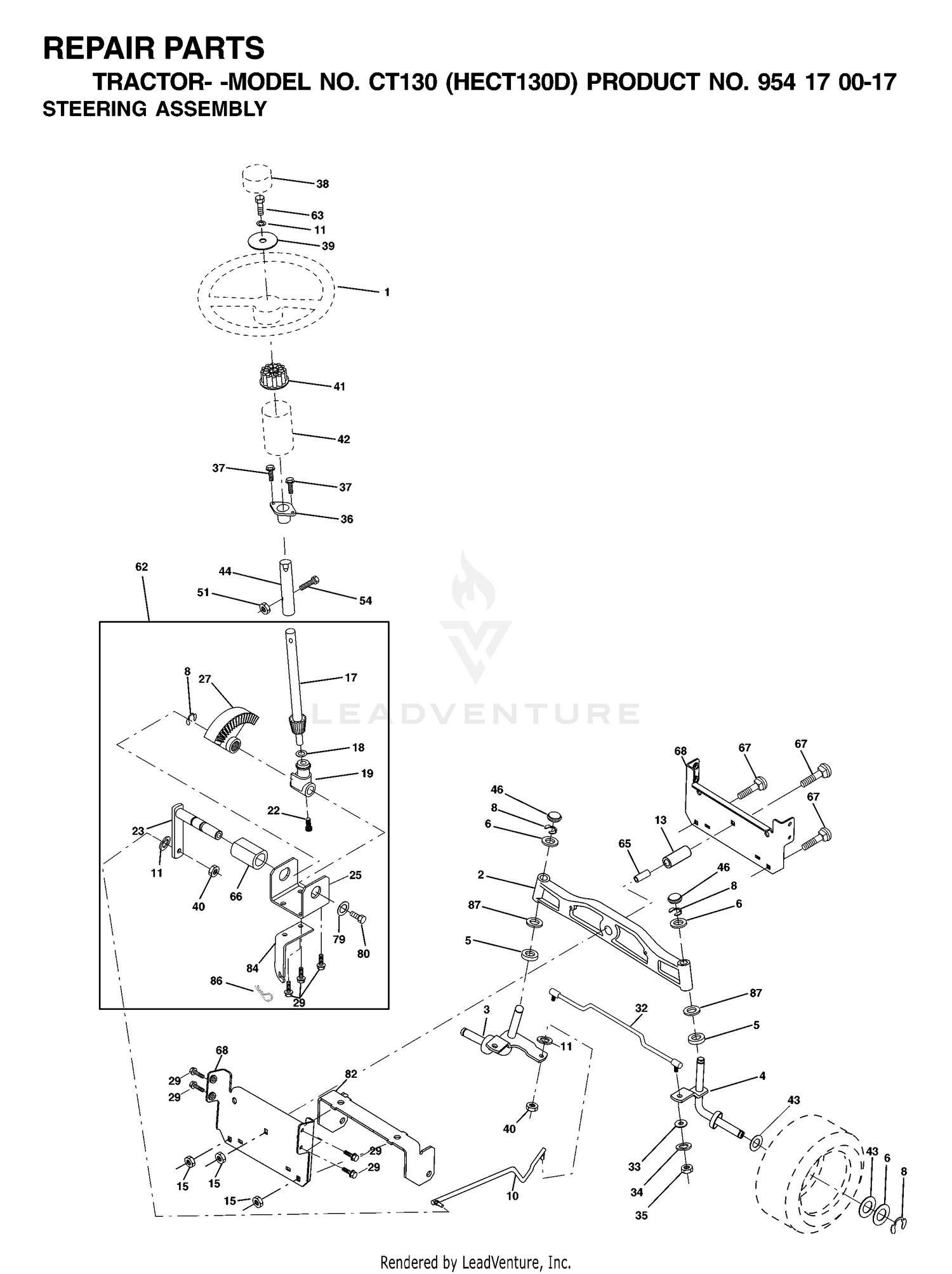

| Ref | Part Number | Description |
|---|
| 1 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532172393. Price: $119.99 |
| 3 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 4 |
93-0181 |
TIRE (11-14) 8 PLY Price: $212.68 |
| 5 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 6 |
93-0182 |
DISCONTINUED Price: Call Us |
| 7 |
242-54 |
HUB Price: $168.31 |
| 8 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 10 |
253-127 |
SEAL Price: $74.45 |
| 10 |
532169832 |
DRAGLINK.15".TIRES Price: $64.99 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 11 |
93-4009-01 |
DISCONTINUED Price: Call Us |
| 12 |
32104-96 |
SCREW-HH Price: $5.59 |
| 13 |
20-9580 |
ROPE-LATCH Price: $47.65 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
13-6910-01 |
SPACER-GUIDE, ROPE Price: $18.39 |
| 15 |
13-6890-01 |
GUIDE-ROPE Price: $119.16 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
2412-40 |
CLAMP-CONDUIT Price: $6.72 |
| 17 |
3-3107 |
BUMPER-PEDAL, CLUTCH Price: $3.80 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532156546. Price: $42.99 |
| 18 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 19 |
235-15 |
GRIP-HANDLE Price: $11.84 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT Price: $8.99 |
| 20 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 21 |
3218-3 |
NUT-JAM Price: $0.25 |
| 22 |
323-8 |
SCREW-HH Price: $1.20 |
| 22 |
532165857 |
SCREW.HX.WSH.HD Price: $3.99 |
| 23 |
13-3930-01 |
TANK-GAS W/CAP Price: $924.40 |
| 23 |
531154301 |
SERVICE.KIT SHAFT ASSY SHAFT A This part replaces 532165851. Price: $22.99 |
| 24 |
222-8 |
CAP-GAS Price: $65.84 |
| 25 |
13-3960 |
STRAP ASM Price: $121.74 |
| 25 |
532154406 |
BRACKET STEERING Price: $6.99 |
| 26 |
13-3970 |
STRIP-FELT Price: $13.69 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 27 |
93-7709 |
PAD Price: $6.23 |
| 28 |
53-4420 |
DECAL-GAS Price: $10.56 |
| 29 |
13-3970 |
STRIP-FELT Price: $13.69 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 30 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 31 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 32 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN Price: $79.99 |
| 33 |
32104-109 |
SCREW-HWH Price: $0.87 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
110-7501 |
HOSE-FUEL This part replaces 94-4522. Price: $12.75 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
2412-93 |
CLAMP-R Price: $1.02 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
13-7460 |
PLATE-HITCH, CAUTION Price: $30.27 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
3290-55 |
RIVET-POP Price: $0.25 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 39 |
819132411 |
Washer 13/32 x 1-1/20 x 11 Gauge Price: $2.99 |
| 40 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 42 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532153721 |
SHAFT EXT STEERING This part replaces 532153720. Price: $54.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 62 |
532167914 |
Kit, Steering Assembly, Service Price: Call Us |
| 63 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 66 |
532154404 |
BEARING ARM Price: $3.99 |
| 67 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 79 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 80 |
874950612 |
BOLT.HX.NYLON3/8-16X Price: $4.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 84 |
532170016 |
Bracket Cable Clutch Chassis Price: Call Us |
| 86 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
