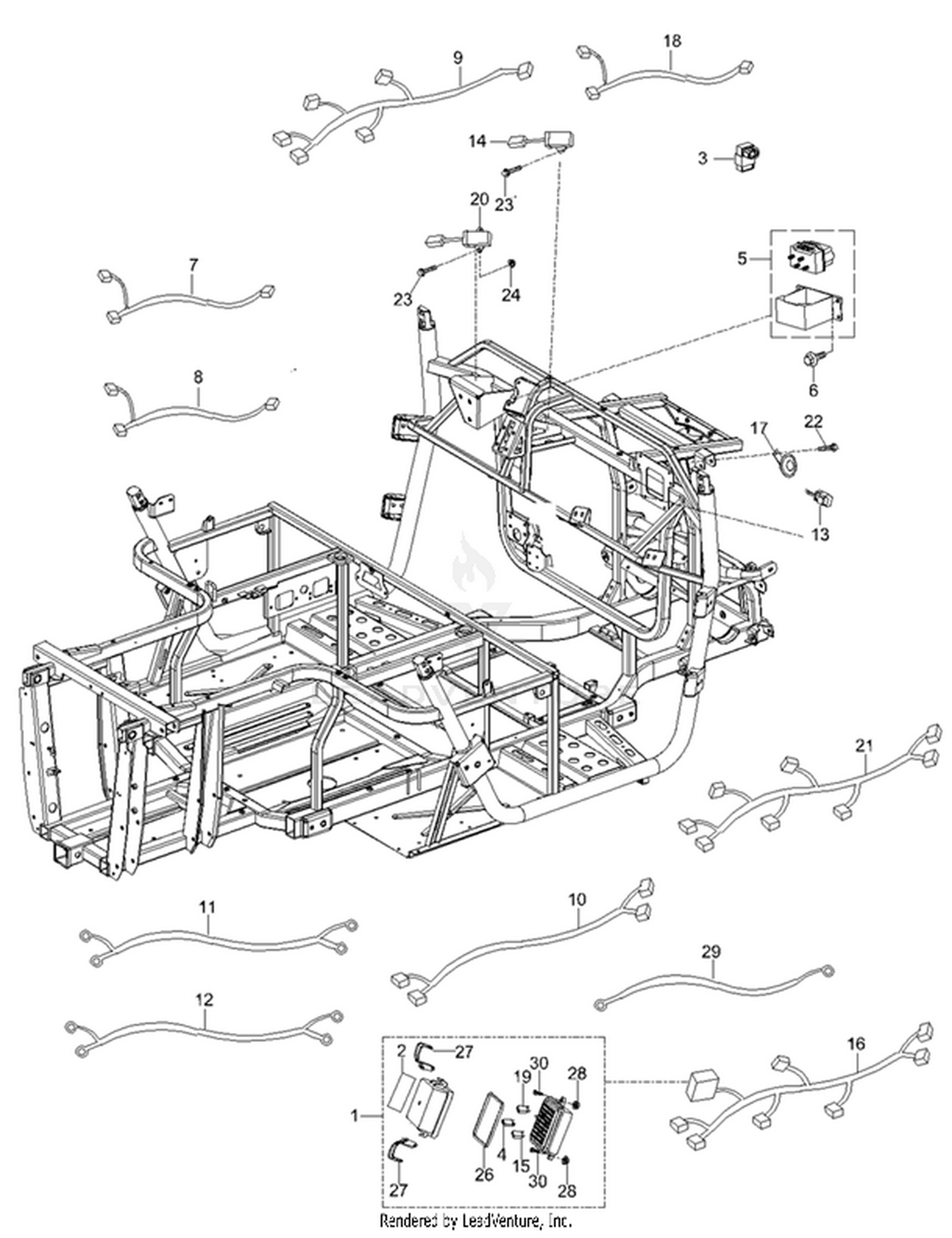

| Ref | Part Number | Description |
|---|
| 1 |
503-02740 |
FUSE BOX GASKET Price: $4.21 |
| 1 |
503-03468 |
FUSE BOX COVER W/ GASKET Price: $56.86 |
| 2 |
503-02818 |
FUSE BOX LABEL Price: $1.92 |
| 3 |
503-02035 |
RELAY (Rear Diff) Price: $59.26 |
| 4 |
503-02754 |
SUPPLEMENTARY RELAY Price: $33.79 |
| 5 |
503-00890A |
WINCH RELAY This part replaces 503-00890. Price: $94.05 |
| 6 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 7 |
503-02100 |
SWITCH HARNESS Price: $107.25 |
| 8 |
503-01871 |
CABLE-SWITCH KIT 2 Price: $114.08 |
| 9 |
503-02097 |
GROUND HARNESS Price: $164.23 |
| 10 |
503-02099 |
VOLTAGE REGULATOR HARNESS Price: $38.45 |
| 11 |
503-01858 |
CABLE-WINCH RELAY OUTLET Price: $113.50 |
| 12 |
503-01859 |
WINCH CABLE Price: $119.92 |
| 13 |
503-02103A |
RADIATOR FAN RELAY This part replaces 503-02103. Price: $101.52 |
| 14 |
503-00547A |
MAIN RELAY Price: $119.07 |
| 15 |
503-02753 |
CUTOUT RELAY Price: $26.86 |
| 16 |
503-02857A |
MAIN WIRE HARNESS This part replaces 503-02857. Price: $757.91 |
| 17 |
503-00876 |
HORN ASSEMBLY Price: $38.15 |
| 18 |
503-02096 |
BATTERY HARNESS Price: $116.25 |
| 19 |
503-02752 |
FLASHER RELAY Price: $84.21 |
| 20 |
503-02268 |
SPEED LIMITER 750 (2018) Price: $169.39 |
| 20 |
503-02269 |
SPEED LIMITER 550 (2018) Price: $143.26 |
| 21 |
503P02858 |
MAIN HARNESS MX19 (EFI) Price: $228.10 |
| 22 |
503-00021 |
CROSS PLATE HEAD SCREW M6X12 Price: $4.85 |
| 23 |
503-00004 |
HEXAGON FLANGE BOLT M6X20 Price: $5.36 |
| 24 |
503-01590 |
LOCK NUT M6 Price: $4.42 |
| 25 |
503-00004 |
HEXAGON FLANGE BOLT M6X20 Price: $5.36 |
| 26 |
503-02740 |
FUSE BOX GASKET Price: $4.21 |
| 27 |
503-03464 |
CLAMP Price: $4.69 |
| 28 |
503-01979 |
HEX FLANG NUT M6 Price: $3.94 |
| 29 |
503-02751 |
GROUND HARNESS Price: $27.01 |
