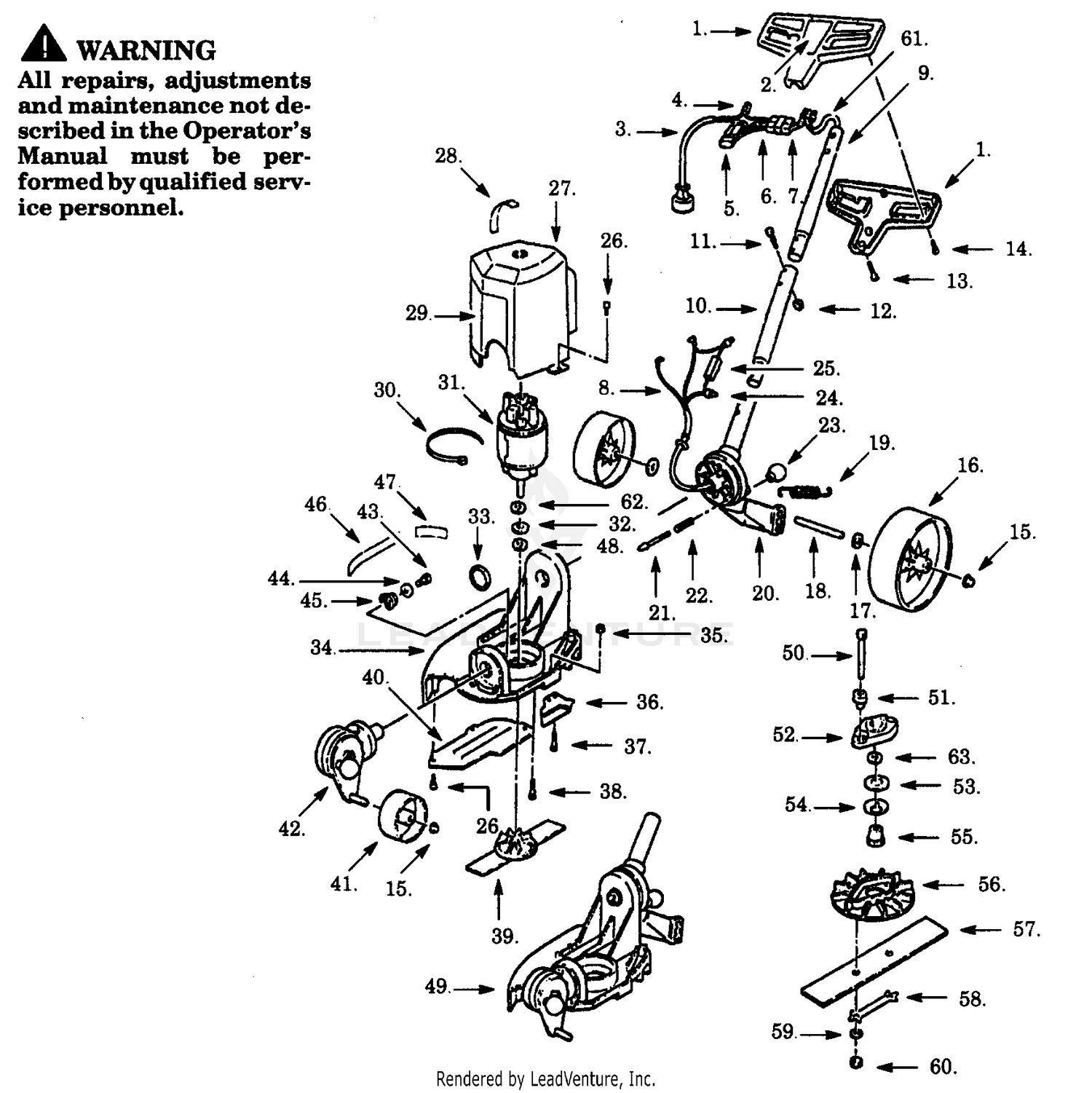

| Ref | Part Number | Description |
|---|
| 1 |
534234225 |
Handle Set Price: $3.33 |
| 2 |
3-8394 |
DISCONTINUED Price: Call Us |
| 2 |
530400710 |
Handle Label (Not a serviceable part) Price: $3.33 |
| 3 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 3 |
534895701 |
Power Cord Price: $3.33 |
| 4 |
3-6501 |
DISCONTINUED Price: Call Us |
| 4 |
534253201 |
Wire Nut Price: $0.99 |
| 5 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 5 |
534193004 |
Switch Price: $3.33 |
| 6 |
3290-239 |
DISCONTINUED Price: Call Us |
| 6 |
534336501 |
Bridge Ass'y. Price: $3.33 |
| 7 |
3-7138 |
DISCONTINUED Price: Call Us |
| 7 |
534954300 |
Insulator Shield Price: $1.99 |
| 8 |
5-1036 |
DISCONTINUED Price: Call Us |
| 8 |
534337000 |
Harness Ass'y. Price: $34.99 |
| 9 |
530400701 |
Upper Tube Price: $7.99 |
| 10 |
256-148 |
FLANGE BUSHING Price: $14.60 |
| 10 |
530400702 |
Lower Tube Price: $3.33 |
| 11 |
3-8008 |
Plate, Lower Hinge Price: Call Us |
| 11 |
530400705 |
Screw Price: $3.33 |
| 12 |
3-6493 |
DISCONTINUED Price: Call Us |
| 12 |
530403094 |
Nut This part replaces 534235901. Price: $1.99 |
| 13 |
32121-48 |
PIN-SPRING Price: $0.61 |
| 13 |
534790300 |
Screw Price: $3.33 |
| 14 |
322-13 |
SCREW-HH Price: $2.73 |
| 14 |
534790302 |
Screw Price: $1.99 |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
534121000 |
Push Nut Price: $1.99 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
534236800 |
Rear Wheel Price: $4.99 |
| 17 |
3217-6 |
NUT-HEX Price: $1.19 |
| 17 |
534137900 |
Washer Price: $1.99 |
| 18 |
5-0460 |
STRG SWAGED CABLE ASM Price: $96.86 |
| 18 |
534137701 |
Rear Axle Price: $3.33 |
| 19 |
5-2106 |
PVT CSTR/SFT WA*RO Price: $291.44 |
| 19 |
534121300 |
Spring Price: $0.99 |
| 20 |
3-6506 |
DISCONTINUED Price: Call Us |
| 20 |
534137505 |
Rear Swivel Price: $13.68 |
| 21 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 21 |
534700002 |
Swivel Lock Shaft Price: $2.99 |
| 22 |
323-6 |
SCREW-HH Price: $0.66 |
| 22 |
534710000 |
Swivel Lock Spring Price: $1.99 |
| 23 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 23 |
534720001 |
Knob Price: $1.99 |
| 24 |
4-2320 |
DISCONTINUED Price: Call Us |
| 24 |
534561000 |
Terminal Cap Price: $1.99 |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 25 |
534134500 |
Resister Price: $2.99 |
| 26 |
3210-3 |
SCREW-HH Price: $5.29 |
| 26 |
534826800 |
Screw Price: $1.99 |
| 27 |
5-1257 |
DISCONTINUED Price: Call Us |
| 27 |
530400703 |
Motor Cover Price: $3.33 |
| 28 |
3-8011 |
DISCONTINUED Price: Call Us |
| 28 |
530400708 |
Rear Adjust Label (Not a serviceable part) Price: $3.33 |
| 29 |
322-10 |
SCREW-HH Price: $0.70 |
| 29 |
530400709 |
Motor Cover Label (Not a serviceable part) Price: $3.33 |
| 30 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 30 |
534134700 |
Tie Wrap Price: $0.99 |
| 31 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 31 |
534225022 |
Motor Ass'y. Price: $3.33 |
| 32 |
5-1037 |
DISCONTINUED Price: Call Us |
| 32 |
534938100 |
Washer Price: $1.99 |
| 33 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 33 |
534780000 |
Retaining Ring Price: $0.99 |
| 34 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 34 |
534130505 |
Deck Frame Price: $3.33 |
| 35 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 35 |
534315300 |
Locknut Price: $1.99 |
| 36 |
3-8408 |
DISCONTINUED Price: Call Us |
| 36 |
534830000 |
Blade Guide Price: $3.99 |
| 37 |
3233-23 |
Carriage Bolt Price: Call Us |
| 37 |
534315200 |
Screw Price: $0.44 |
| 38 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 38 |
534136401 |
Screw Price: $1.99 |
| 39 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 39 |
534135205 |
Blade Ass'y. Price: $22.48 |
| 40 |
3218-6 |
NUT-JAM Price: $0.61 |
| 40 |
534131515 |
Side Guard Plate Price: $5.99 |
| 41 |
351-26 |
DISCONTINUED Price: Call Us |
| 41 |
534240003 |
Front Wheel Price: $3.99 |
| 42 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 42 |
534130705 |
Front Swivel Ass'y. Price: $22.99 |
| 43 |
3-2889 |
DISCONTINUED Price: Call Us |
| 43 |
534779000 |
Screw Price: $1.99 |
| 44 |
534778000 |
Washer Price: $0.99 |
| 45 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 45 |
534120500 |
Front Swivel Spring Price: $1.99 |
| 46 |
242-39 |
WHEEL ASM Price: $244.32 |
| 46 |
530400706 |
Dyn Brake Label (Not a serviceable part) Price: $3.33 |
| 47 |
5108 |
VALVE This part replaces 232-21. Price: $6.29 |
| 47 |
530400707 |
Warning Label (Not a serviceable part) Price: $3.33 |
| 48 |
242-32 |
LUG NUT Price: $4.77 |
| 48 |
534757900 |
Washer Price: $1.99 |
| 49 |
117127 |
TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL This part replaces 231-39. Price: $107.13 |
| 49 |
534135185 |
Edger Frame Ass'y. Price: $59.99 |
| 50 |
3-8014 |
AXLE SHAFT Price: $49.11 |
| 50 |
534135901 |
Screw Price: $1.99 |
| 51 |
3-6514 |
THRUST WASHER Price: $1.74 |
| 51 |
534135605 |
Insulating Sleeve Price: $3.33 |
| 52 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 52 |
534135410 |
Clutch Plate Price: $3.99 |
| 53 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 53 |
534136300 |
Washer Price: $1.99 |
| 54 |
242-33 |
DISCONTINUED Price: Call Us |
| 54 |
534238900 |
Spring Washer Price: $1.99 |
| 55 |
3217-7 |
NUT-HEX Price: $0.28 |
| 55 |
534135500 |
Clutch Sleeve Price: $5.99 |
| 56 |
534135305 |
Fan Price: $3.33 |
| 57 |
534205300 |
Blade Price: $11.99 |
| 58 |
534135700 |
Lock Strap Price: $1.99 |
| 59 |
534136600 |
Lockwasher Price: $1.99 |
| 60 |
534136200 |
Locknut Price: $1.99 |
| 61 |
534337200 |
Harness Ass'y. Price: $3.33 |
| 62 |
534246700 |
Retaining Ring Price: $0.99 |
| 63 |
534758000 |
Washer Price: $1.99 |
| 530400704 |
Carton |
Contents Bag Price: $3.33 530400704 |
| 530400711 |
Operator |
Manual Price: $3.33 530400711 |
