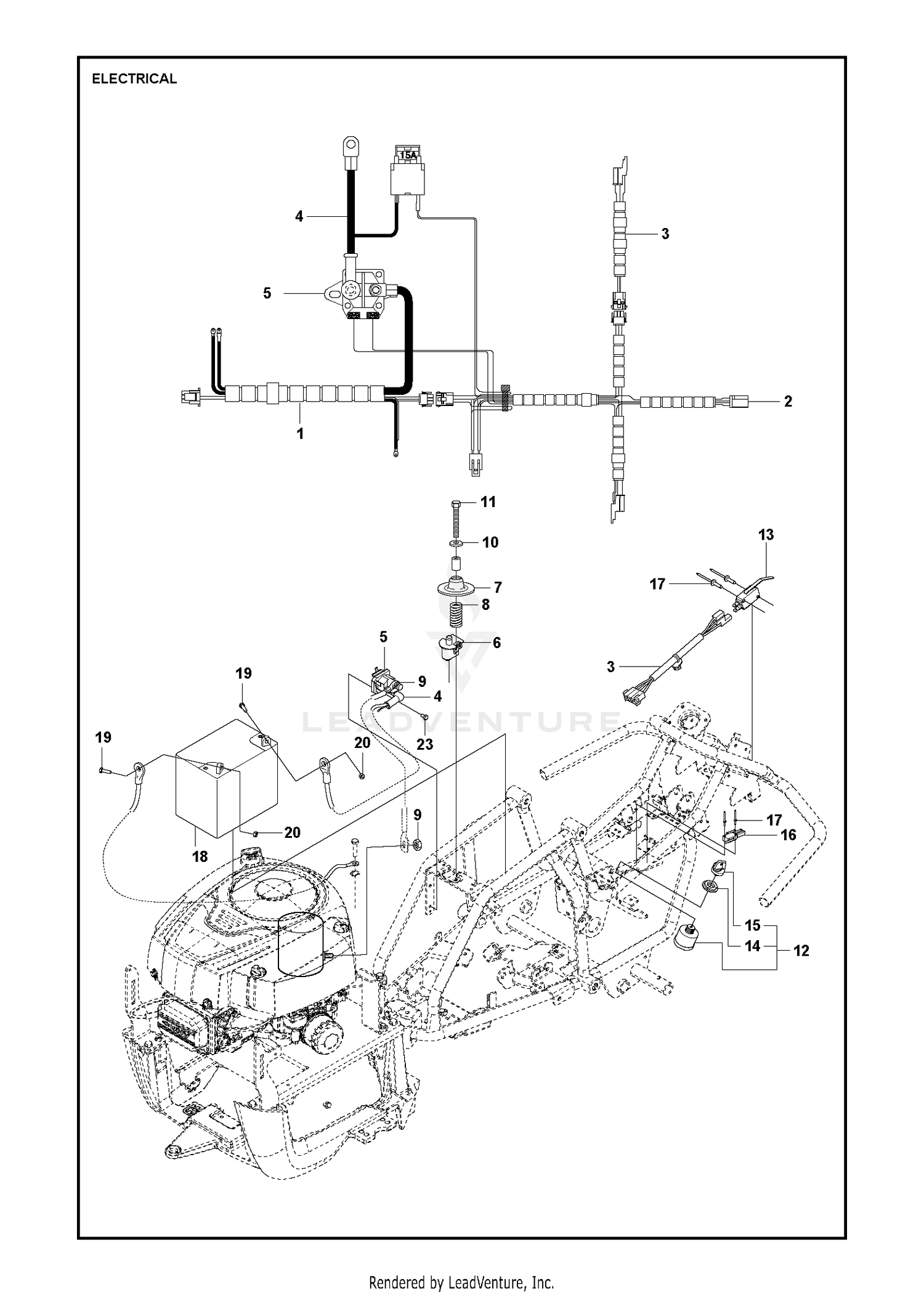

ELECTRICAL
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 587360201 | WIRING Price: $59.99 |
| 2 | 580355001 | WIRING Price: $39.99 |
| 3 | 574269601 | WIRING Price: $14.99 |
| 4 | 586248801 | NEEDS DESCRIPTION Price: Call Us |
| 5 | 544439801 | RELAY Price: $17.99 |
| 6 | 506909601 | SWITCH Price: $14.99 |
| 7 | 506909701 | WASHER Price: $12.99 |
| 8 | 544441201 | SPRING Price: $4.99 |
| 10 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 10 | 98-9713 | WATER FLANGE ASM Price: $199.09 |
| 11 | 725246351 | SCREW This part replaces 725246071. Price: $4.99 |
| 12 | 544442101 | IGNITION SWITCH Price: $24.99 |
| 13 | 544415901 | SWITCH Price: $19.99 |
| 14 | 544442301 | NUT Price: $2.99 |
| 15 | 544442401 | IGNITION KEY Price: $6.99 |
| 16 | 574316101 | MICRO SWITCH Price: $11.99 |
| 17 | 544440701 | RIVET Price: $2.99 |
| 18 | 577041601 | BATTERY Price: $129.99 |
| 19 | 522622101 | SCREW EHHM Price: $2.99 |
| 20 | 522624301 | NUT Price: $2.99 |
| 20 | 98-9580 | PIPE-RETURN, WATER Price: $4.01 |
| 23 | 725236461 | SCREW Price: $2.99 |
| 30 | 105-3747 | PLUG Price: $3.62 |
| 40 | 99-3583 | GASKET Price: $1.92 |
| 50 | 98-9638 | GASKET-FLANGE, WATER Price: $3.74 |
| 60 | 98-7692 | BOLT Price: $0.92 |
| 70 | 98-9356 | BOLT Price: $2.06 |
| 80 | 98-9578 | PIPE-RETURN, WATER Price: $11.28 |
| 90 | 125-9078 | CLAMP-HOSE Price: $4.06 |
| 100 | 98-9719 | THERMOSWITCH Price: $98.79 |
| 110 | 98-7778 | THERMOSTAT ASM Price: $61.89 |
| 120 | 98-9471 | COVER-THERMOSTAT Price: $34.62 |
| 130 | 105-3748 | GASKET-THERMOSTAT Price: $4.31 |
