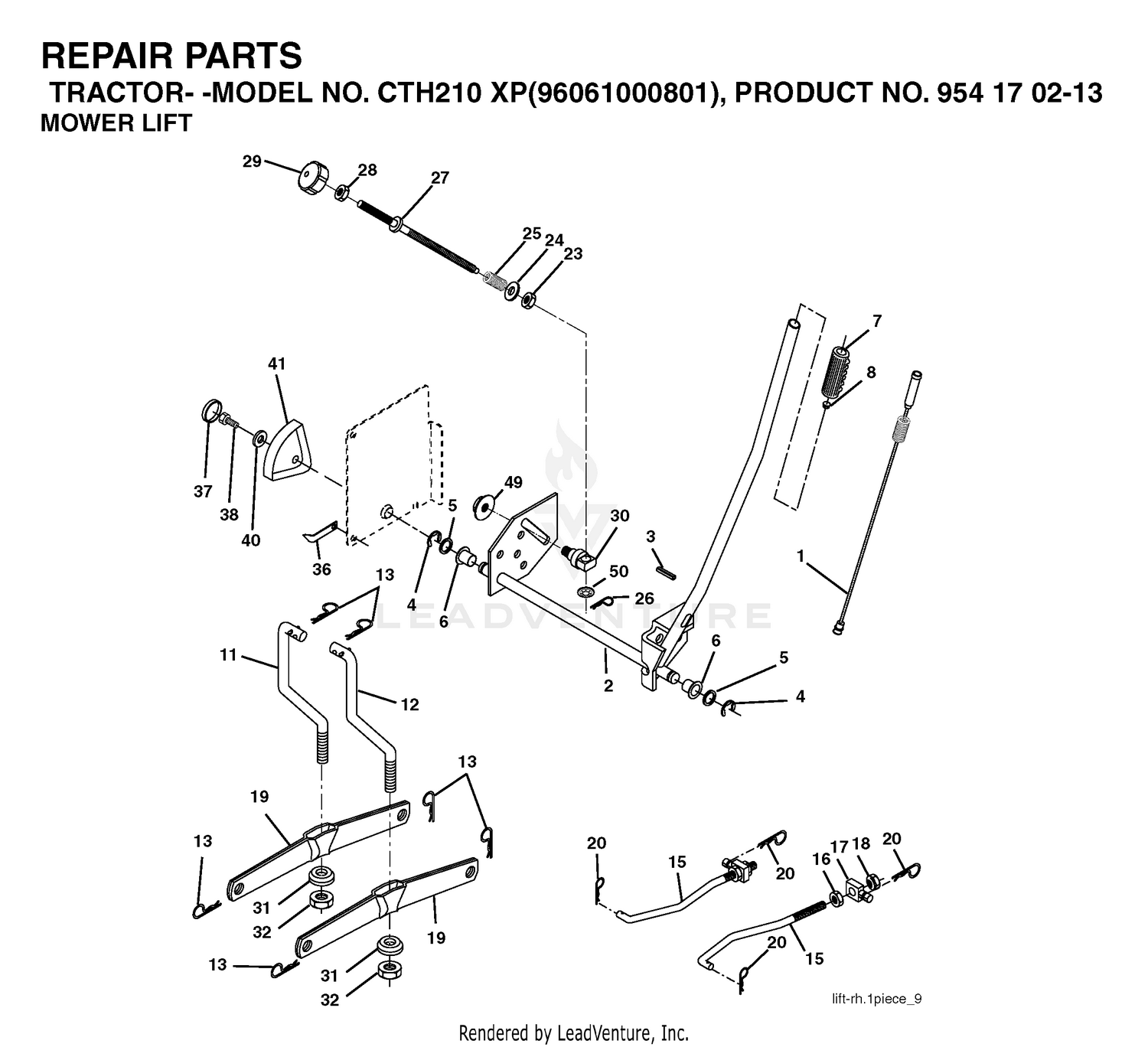

| Ref | Part Number | Description |
|---|
| 1 |
532159460 |
WIRE ASM INNER W/ PLUNGER LT Price: $22.99 |
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 3 |
3272-30 |
PIN-COTTER Price: $0.47 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
110-6006 |
PIN-CLEVIS Price: $31.49 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 136-2913. Price: $3,119.29 |
| 10 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 11 |
140-6337 |
PIN ASM This part replaces 100-3017. Price: $55.25 |
| 11 |
532165828 |
LIFT LINK, LH This part replaces 532165829. Price: $17.99 |
| 12 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 12 |
532165830 |
LINK ASSY. This part replaces 532165831. Price: $9.99 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 13 |
93-7984 |
GASKET Price: $20.21 |
| 14 |
100-3070 |
LH BRAKE ASM This part replaces 100-3070-03. Price: $802.37 |
| 15 |
33106-080 |
SCREW-HHF Price: $2.80 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
3218-4 |
NUT-JAM Price: $0.49 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 18 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
325-13 |
SCREW-HH Price: $3.57 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
100-3069 |
RH BRAKE ASM This part replaces 100-3069-03. Price: $802.37 |
| 25 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 26 |
132-6250-03 |
FRAME-FRONT Price: $2,505.29 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 27 |
532126971 |
ROD ADJ LIFT Price: $5.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
