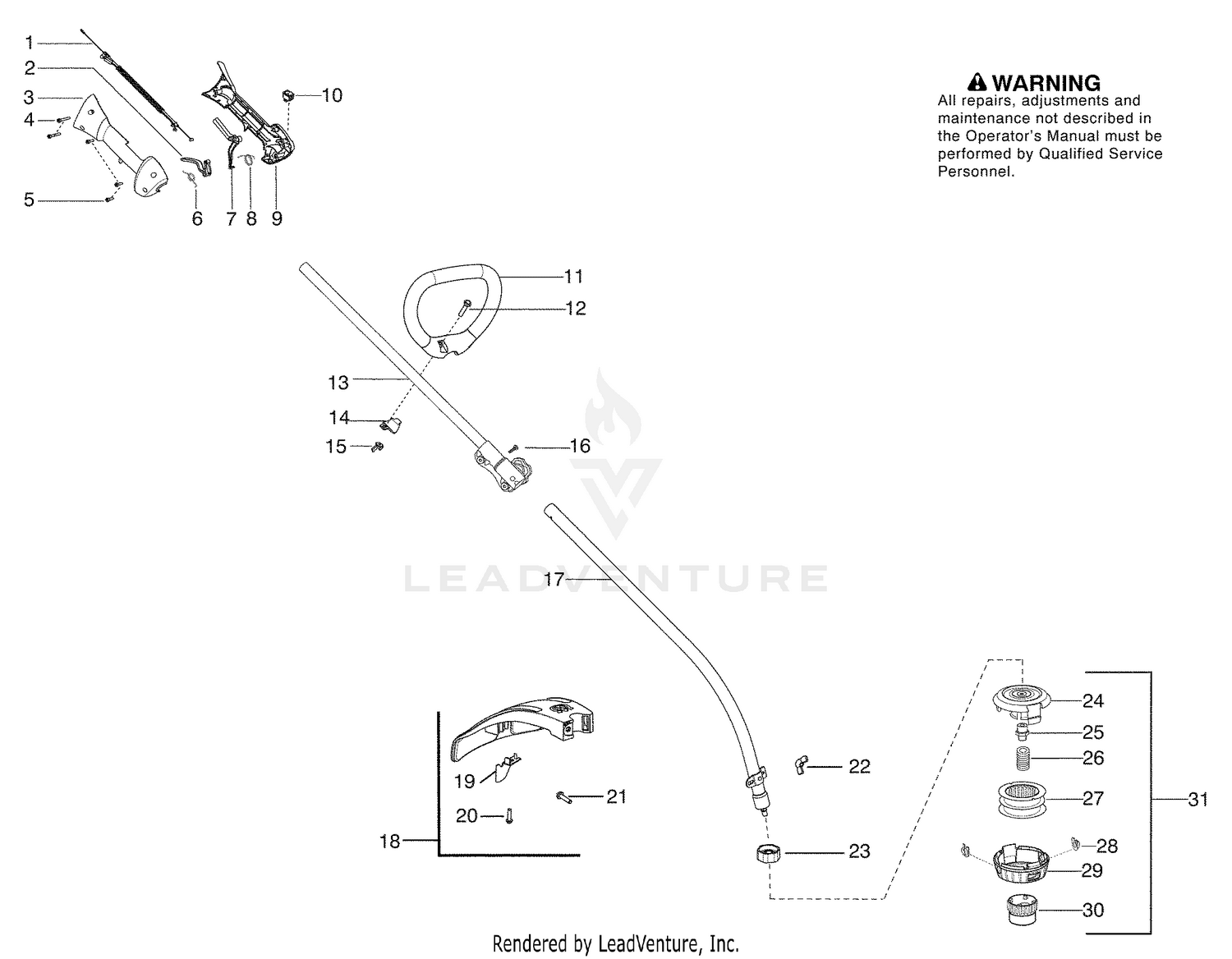

Repair Parts
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 545125301 | ASSY-CABLE WIRE HARNESS Price: $19.99 |
| 2 | 545066001 | TRIGGER THROTTLE Price: $5.99 |
| 3 | 545062001 | HOUSING-THROTTLE RH Price: $8.99 |
| 4 | 530016448 | SCREW Price: $2.99 |
| 5 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 6 | 530016454 | SPRING TRIGGER Price: $4.99 |
| 7 | 530059804 | THROTTLE LOCKOUT Price: $4.99 |
| 8 | 545045601 | SPRING LOCKOUT Price: $4.99 |
| 9 | 545067001 | HSG THROTTLE LH Price: $9.99 |
| 10 | 545049301 | KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 11 | 545042201 | HANDLE Price: $14.99 |
| 12 | 530015820 | BOLT, TYPE 2 Price: $3.99 |
| 14 | 530059185 | CLAMP ASSIST HANDLE Price: $2.99 |
| 15 | 530091373 | NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 16 | 530016344 | SCREW Price: $2.99 |
| 19 | 530052287 | CUTTER Price: $3.99 |
| 20 | 530015814 | SCREW Price: $0.17 |
| 21 | 530015820 | BOLT, TYPE 2 Price: $3.99 |
| 22 | 530091373 | NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 23 | 530057559 | DUST CAP Price: $3.99 |
| 24 | 537419303 | HOUSING Price: $9.99 |
| 25 | 537419901 | ADAPTER Price: $9.99 |
| 26 | 537338801 | SPRING Price: $4.99 |
| 27 | 545080801 | SPOOL ACCY TNG VII (25 FT) Price: $5.99 |
| 28 | 545003365 | COVER This part replaces 537419701. Price: $7.99 |
| 29 | 545003365 | COVER This part replaces 537419401. Price: $7.99 |
| 30 | 537419601 | KNOB Price: $5.99 |
