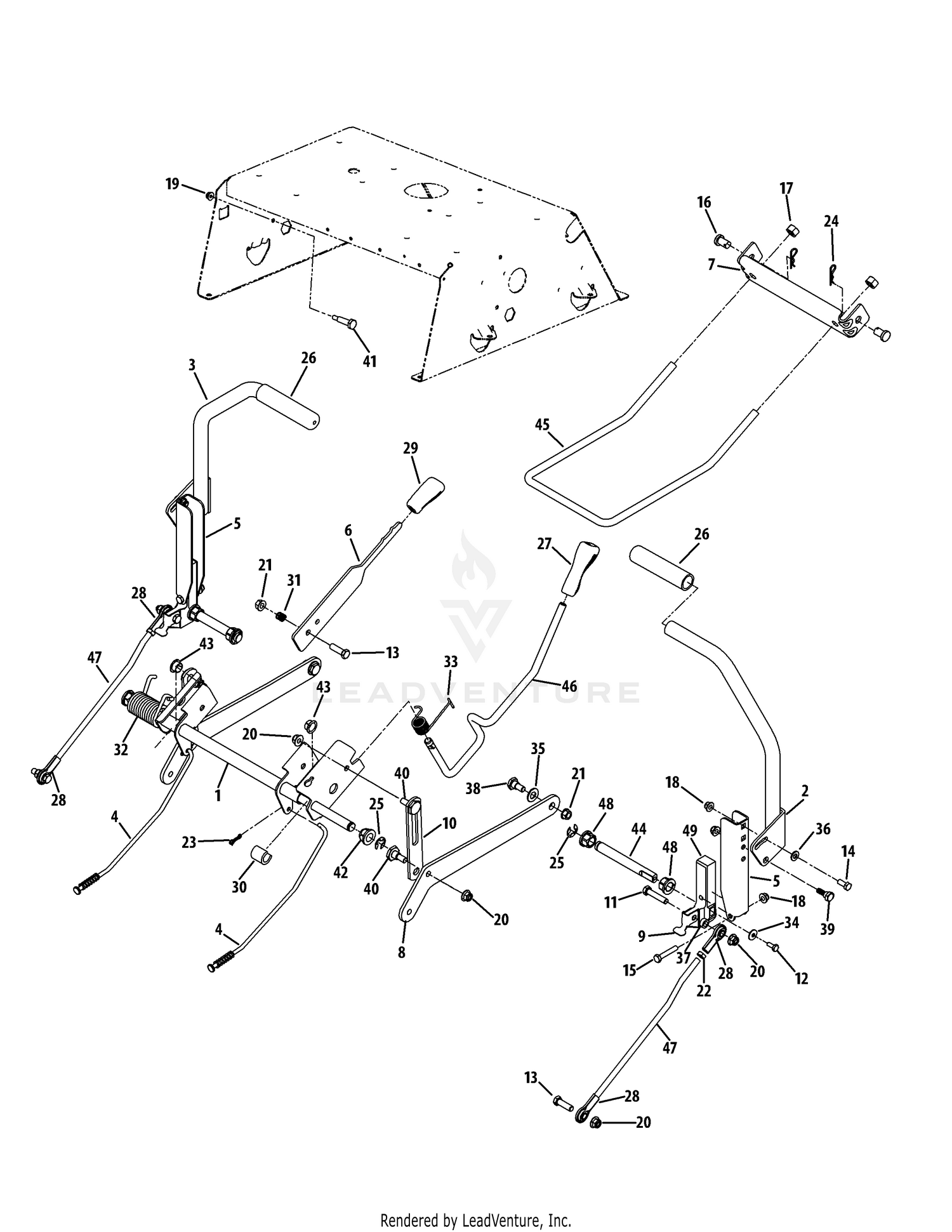

| Ref | Part Number | Description |
|---|
| 1 |
603-04160C-0637 |
Deck Lift Shift Assembly Price: $142.23 |
| 2 |
603-04322-0638 |
LAPBAR HANDLE (RH) (MTD RED) Not Available Price: |
| 3 |
603-04324-0637 |
LAPBAR HANDLE (LH) (POWDER BLACK) This part replaces 603-04324-0638. Price: $66.40 |
| 4 |
947-04065 |
Brake Rod Assembly Price: $34.94 |
| 5 |
703-05387B |
Lapbar Pivot Bracket Price: $24.72 |
| 6 |
703-05396A-0637 |
Brake/Shabs Assembly Not Available Price: |
| 7 |
703-05414A-0637 |
DECK HANGER BRACKET (POWDER BLACK) This part replaces 703-05414A-4033. Price: $58.02 |
| 8 |
703-05793A-0637 |
Arm, Deck Lift This part replaces 703-05793A-4033. Price: $46.85 |
| 9 |
703-06096A |
Switch Actuator Bracket Price: $9.41 |
| 10 |
703-06169-0637 |
Lift Link Plate Price: $14.86 |
| 11 |
710-0347 |
Hex Screw, 3/8-16 x 1.75 Price: $4.39 |
| 12 |
710-0433 |
Hex Screw, 1/4-20 x .625 Price: $4.02 |
| 13 |
710-3005 |
Hex Screw, 3/8-16 x 1.25 Price: $3.61 |
| 14 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 15 |
710-3180 |
Hex Screw, 5/16-18 x 1.75 Price: $4.93 |
| 16 |
911-0332 |
Clevis Pin, .50 x .78 Price: $14.98 |
| 17 |
712-04243 |
Flex Lock Nut, 1/2-13 Price: $3.52 |
| 18 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 19 |
712-04064 |
Flange Lock Nut, 1/4-20 (50" Deck) Price: $3.64 |
| 20 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 21 |
712-0375 |
Hex Lock Nut, 3/8-16, Centerlock Price: $4.02 |
| 22 |
912-3001 |
Jam Nut, 3/8 Price: $5.94 |
| 23 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 24 |
714-04023 |
Pin, Click, .092 x 1.64 Lg This part replaces 914-04023. Price: $3.90 |
| 25 |
716-0106 |
E-Ring Price: $3.52 |
| 26 |
731-04719A |
LAPBAR GRIP Not Available Price: |
| 27 |
720-0311 |
Handle Grip, 1/2 Price: $13.26 |
| 28 |
723-04080 |
BALL JOINT Price: $38.27 |
| 29 |
731-04735 |
BRAKE HANDLE GRIP Price: $17.99 |
| 30 |
731-05732 |
SPACER .621 Not Available Price: |
| 31 |
732-0334 |
Spring, Compression This part replaces 932-0334. Price: $3.38 |
| 32 |
732-04420 |
Torsion Spring, 1.191 x 2.78 Price: $18.65 |
| 33 |
732-04869A |
Torsion Spring Price: $3.82 |
| 34 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 35 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 936-0272. Price: $4.37 |
| 36 |
736-0275 |
FLAT WASHER This part replaces 936-0275. Price: $5.99 |
| 37 |
750-04776 |
Spacer, .380 x .625 x .265 Price: $4.75 |
| 38 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 39 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 40 |
738-0507B |
Shoulder Screw, .5D x .434 This part replaces 938-0507B. Price: $3.86 |
| 41 |
938-0572 |
Shoulder, Screw, .374 x 1.16 (50" Deck) Price: $7.03 |
| 42 |
941-0225 |
Hex Flange Bearing Price: $6.55 |
| 43 |
741-3074 |
Flange Bearing, .626 x .938 x .344 Price: $4.22 |
| 44 |
747-04226A |
Shaft Control Price: $45.73 |
| 45 |
747-04401A |
Front Hanger Deck Lift Rod Price: $51.78 |
| 46 |
747-04637 |
Deck Lift Handle Rod Price: $45.33 |
| 47 |
747-05057 |
LAPBAR CONTROL ROD Not Available Price: |
| 48 |
948-0227A |
Hex Flange Bearing, .629 Price: $7.61 |
