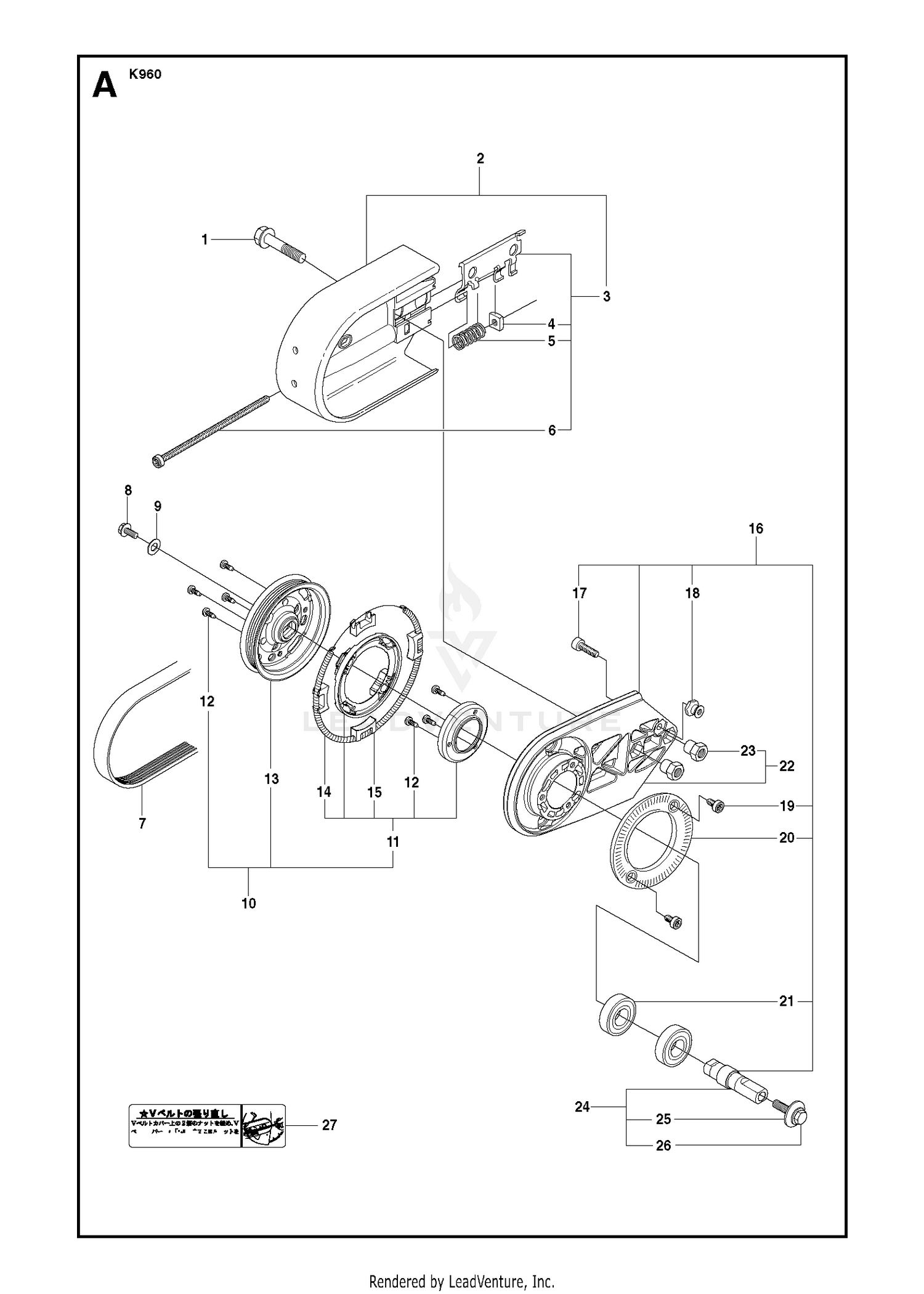

BELT GUARD & PULLEY
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506284401 | BOLT Price: $3.99 |
| 4 | 506409301 | NUT Price: $3.99 |
| 5 | 506266801 | SPRING Price: $3.99 |
| 6 | 503207205 | SCREW Price: $4.99 |
| 8 | 503200045 | SCREW Price: $3.99 |
| 9 | 503230116 | WASHER Price: $2.99 |
| 12 | 503212810 | SCREW Price: $2.99 |
| 13 | 590895801 | PULLEY This part replaces 504062201. Price: $22.99 |
| 14 | 544441001 | DRAW SPRING Price: $5.99 |
| 17 | 505574116 | SCREW ITXSCM Price: $3.99 |
| 18 | 506143201 | CATCH Price: $5.99 |
| 19 | 503215310 | SCREW Price: $3.99 |
| 20 | 506288401 | FLANGE Price: $4.99 |
| 21 | 503252101 | BALL BEARING Price: $19.99 |
| 23 | 506287301 | NUT Price: $6.99 |
| 25 | 506139511 | WASHER Price: $4.99 |
| 26 | 581855201 | SCREW This part replaces 506139601. Price: $9.99 |
