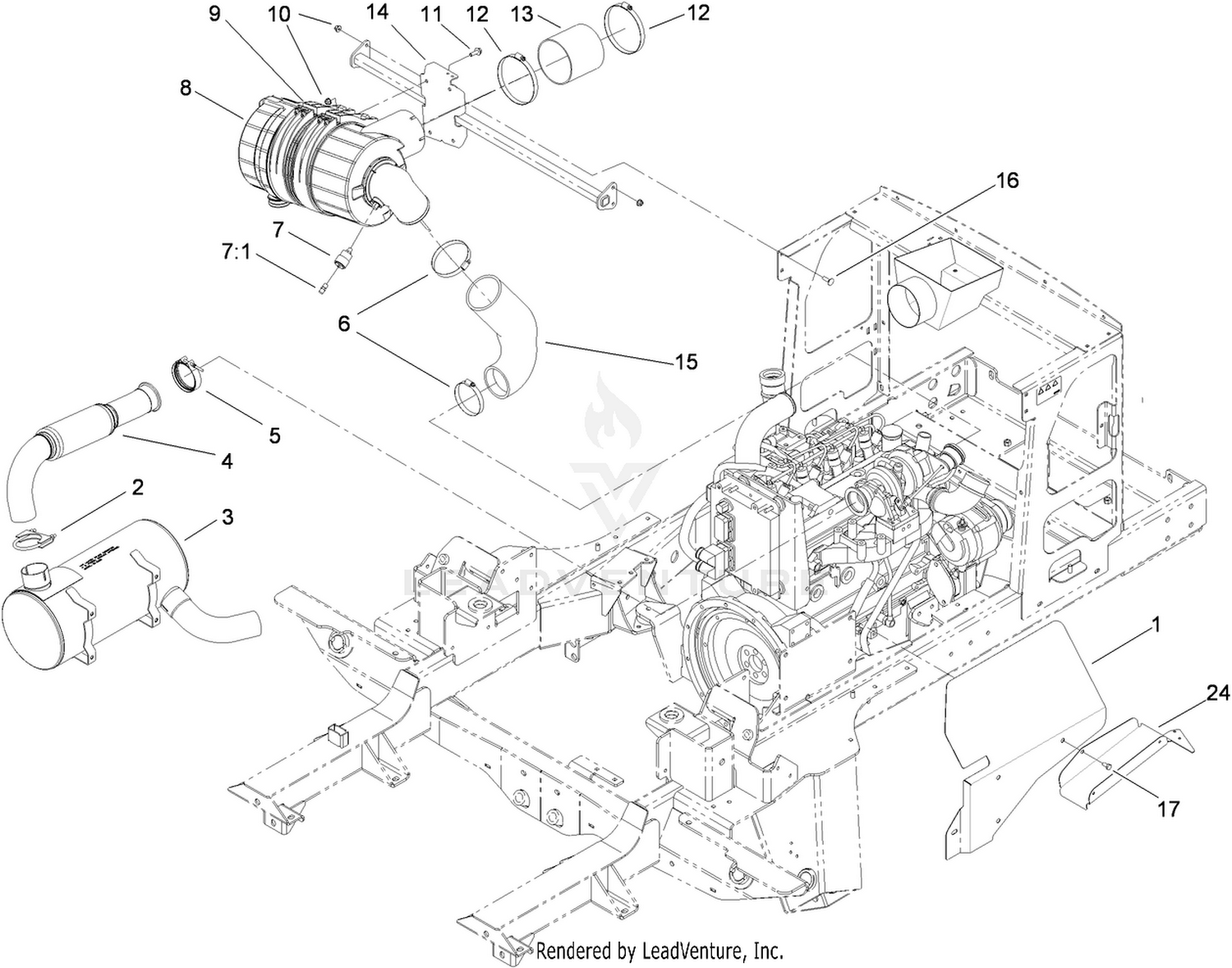

Air Cleaner and Muffler Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-9417-03 | SHIELD-HEAT Price: $62.09 |
| 2 | 112-7310 | CLAMP-MUFFLER Price: $6.17 |
| 3 | 114-5589 | MUFFLER Price: $711.67 |
| 4 | 114-5588 | TUBE-EXHAUST Price: $395.04 |
| 5 | 112-7323 | CLAMP-EXHAUST Price: $76.13 |
| 6 | 114-4938 | CLAMP-WORM Price: $9.70 |
| 7 | 104-3563 | INDICATOR Price: $58.60 |
| 8 | 112-7329 | AIR CLEANER ASM Price: $364.95 |
| 9 | 112-7340 | BAND-MOUNTING, AIR CLEANER Price: $67.19 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 11 | 3234-29 | SCREW-HHF Price: $1.84 |
| 12 | 2412-46 | CLAMP Price: $33.99 |
| 13 | 112-7371 | HOSE-AIR Price: $33.27 |
| 14 | 112-7348-03 | MOUNT-CLEANER, AIR Price: $170.37 |
| 15 | 119-7714 | HOSE-AIR, INTAKE Price: $90.09 |
| 16 | 3230-2 | BOLT-CARR Price: $0.47 |
| 17 | 33104-016 | SCREW-HHF Price: $0.97 |
