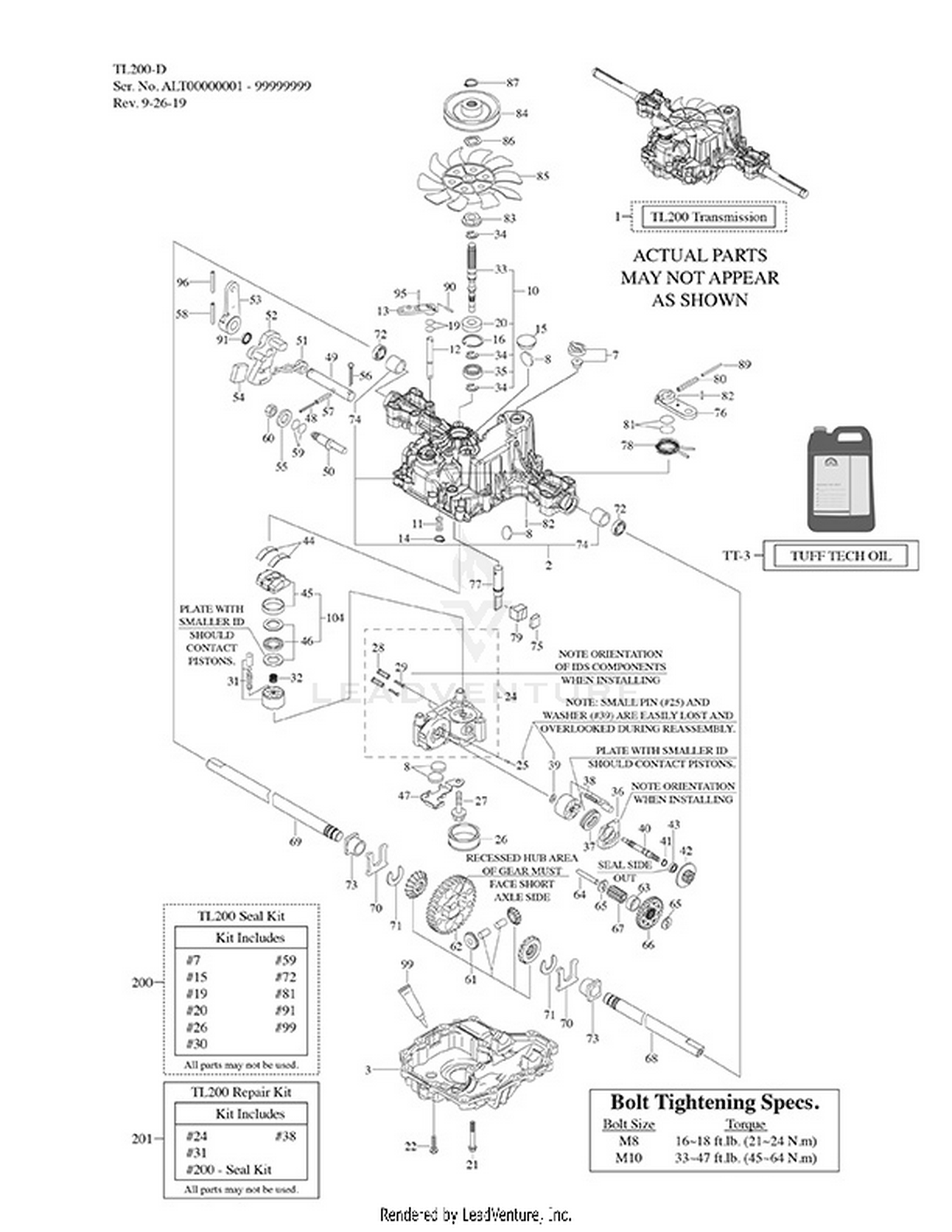

Transmission
Parts (87)
| Ref | Part Number | Description |
|---|---|---|
| TT3 | TT-187Q0899000 | TUFF TECH OIL 3 LITER BOTTLE Price: $40.53 |
| 1 | 618-08373A | HYDRO TRANSMISSION This part replaces 618P08373. Price: $901.90 |
| 2 | TT-187T0124100 | UPPER CASE KIT Price: $173.18 |
| 3 | TT-168T2024160 | LOWER CASE Price: $74.80 |
| 7 | TT-168T2024250 | VALVE ASSEMBLY-VENT Price: $25.34 |
| 8 | TT-19216324360 | MAGNET Price: $2.70 |
| 10 | TT-187T0099950 | PUMP SHAFT KIT (W/BRG) Price: $28.24 |
| 11 | TT-19215427281 | SPRING Price: $2.29 |
| 12 | TT-1A646029510 | SHAFT-BYPASS Price: $23.67 |
| 13 | TT-1A632029520 | LEVER-BYPASS Price: $6.06 |
| 14 | TT-22242000100 | SNAP RING Price: $0.35 |
| 15 | TT-187T0136300 | SEALING CAP Price: $6.24 |
| 16 | TT-22252000350 | SNAP RING Price: $2.29 |
| 19 | TT-24311240100 | O-RING Price: $2.29 |
| 20 | TT-187T0134380 | OIL SEAL Price: $3.70 |
| 21 | TT-26476080552 | TAP SCREWPING 8X Price: $1.56 |
| 22 | TT-26476080302 | TAP SCREWPING 8X Price: $2.92 |
| 24 | TT-187T0124500 | CENTER CASE Price: $196.12 |
| 25 | TT-19216824760 | PIN Price: $2.29 |
| 26 | TT-187Q1625221 | FILTER 105 This part replaces TT-168T2025220. Price: $13.79 |
| 27 | TT-168T2099990 | BOLT-HEX 10X Price: $2.16 |
| 28 | TT-1A646024800 | VALVE-IDS 1.2 Price: $9.16 |
| 29 | TT-168T2084770 | SPRING Price: $0.14 |
| 31 | TT-168T2025090 | BLOCK KIT-PISTON & Price: $108.31 |
| 32 | TT-1A646025200 | SPRING-CYL BLOCK Price: $1.58 |
| 33 | TT-1A646025251 | SHAFT-PUMP INPUT Price: $39.95 |
| 34 | TT-22272000120 | E-RING Price: $2.29 |
| 35 | TT-1A646034790 | BALL BEARING This part replaces TT-1A646034770. Price: $8.26 |
| 36 | TT-19216824210 | HOUSING-MOTOR Price: $11.63 |
| 37 | TT-187T0034750 | THRUST BEARING Price: $21.86 |
| 38 | TT-168T2025080 | BLOCK KIT-PISTON & Price: $149.14 |
| 39 | TT-19216825230 | WASHER Price: $2.29 |
| 40 | TT-1A646025271 | MOTOR SHAFT Price: $24.30 |
| 41 | TT-19215425310 | SNAP RING Price: $0.54 |
| 42 | TT-1A646025400 | DISC-BRAKE Price: $12.44 |
| 43 | TT-1A646034780 | BALL BEARING This part replaces TT-1A646034760. Price: $8.61 |
| 44 | TT-187T0027060 | BEARING-CRADLE THRUST Price: $2.29 |
| 47 | TT-1A646029010 | HOLDER-MAGNET Price: $3.43 |
| 48 | TT-22351035036 | PIN 3.5 x 36 Price: $0.17 |
| 49 | TT-1A646029911 | SHAFT-CONTROL Price: $14.96 |
| 50 | TT-168T2029920 | FULCRUM Price: $21.91 |
| 51 | TT-168T2029800 | TORSION SPRING Price: $11.70 |
| 52 | TT-168T2029740 | ARM-CONTROL A Price: $37.68 |
| 53 | TT-1A646029400 | LEVER-CONTROL F Price: $10.72 |
| 54 | TT-168T2029360 | PLATE-JERKY Price: $3.93 |
| 55 | TT-22137120000 | FLAT WASHER 12 Price: $1.96 |
| 56 | TT-1A646029940 | COTTER PIN 1/8 x .75 Price: $1.47 |
| 57 | TT-22351060036 | SPRING PIN 6 x 3 Price: $0.78 |
| 58 | TT-22351060040 | ROLL PIN 6 x 4 Price: $2.29 |
| 59 | TT-24311000140 | O-RING Price: $1.97 |
| 60 | TT-26776120002 | HEX NUT 12 Price: $1.97 |
| 61 | TT-1A646031570 | DIFFERENTIAL GEAR ASSEMBLY Price: $47.91 |
| 62 | TT-1A646033520 | Final Gear (54T) This part replaces TT-1A646033540. Price: $66.06 |
| 63 | TT-1A646033250 | COLLAR-FINAL PINION Price: $2.95 |
| 64 | TT-1A646033410 | SHAFT-REDUCTION Price: $9.74 |
| 65 | TT-19216833420 | THRUST WASHER Price: $1.69 |
| 66 | TT-1A646033450 | GEAR-REDUCTION 37T Price: $16.37 |
| 67 | TT-168T2033540 | Final Pinion Gear (10T) This part replaces TT-1A646033531. Price: $15.60 |
| 68 | TT-1A646034270 | LEFT SIDE AXLE This part replaces TT-1A646034350. Price: $41.13 |
| 69 | TT-1A646034280 | RIGHT SIDE AXLE This part replaces TT-1A646034360. Price: $51.92 |
| 70 | TT-19216334261 | THRUST WASHER Price: $7.90 |
| 71 | TT-19216834270 | RING-"C" AXL Price: $2.29 |
| 72 | TT-187T0134280 | OIL SEAL Price: $9.74 |
| 73 | TT-19216834350 | BUSHING-FLG AXL Price: $2.29 |
| 74 | TT-1A646034500 | AXLE BUSHING This part replaces TT-168T2034240. Price: $3.05 |
| 75 | TT-1A646036121 | BRAKE SHOE Price: $2.29 |
| 76 | TT-1A646036160 | BRAKE LEVER Price: $6.30 |
| 77 | TT-1A646036171 | BRAKE SHAFT Price: $32.49 |
| 78 | TT-168T2036180 | SPRING-BRAKE RETUR Price: $3.95 |
| 79 | TT-1A646036200 | ACTUATOR-BRAKE Price: $2.15 |
| 80 | TT-22351050032 | SPRING PIN 5 x 3 Price: $2.29 |
| 81 | TT-24311000120 | O-RING Price: $2.29 |
| 82 | TT-22351040016 | SPRING PIN 4 x 1 Price: $1.97 |
| 83 | TT-1A646025300 | COLLAR-SPLINE Price: $2.52 |
| 84 | TT-1A646025760 | PULLEY Price: $20.39 |
| 85 | TT-1A646083070 | HYDRO FAN BLK Price: $19.81 |
| 86 | TT-1A646083060 | WAVE WASHER Price: $2.29 |
| 87 | TT-19215489090 | SNAP RING Price: $2.29 |
| 89 | TT-22351030032 | SPRING PIN 3 x 32 Price: $0.36 |
| 90 | TT-22351030020 | SPRING PIN 3 x 2 Price: $2.29 |
| 91 | TT-1A646024440 | OIL SEAL Price: $3.37 |
| 95 | TT-22351030016 | SPRING PIN 3 x 1 Price: $2.29 |
| 96 | TT-22351035040 | ROLL PIN 3.5 x 4 Price: $2.29 |
| 99 | TT-1A646099500 | SEALANT Price: $23.68 |
| 104 | TT-168T2099650 | SWASH PLATE KIT Price: $55.24 |
| 200 | 187T0199811-L2 | SEAL KIT Price: $37.47 |
| 201 | 187T0124000-L2 | REPAIR KIT Price: $363.13 |
