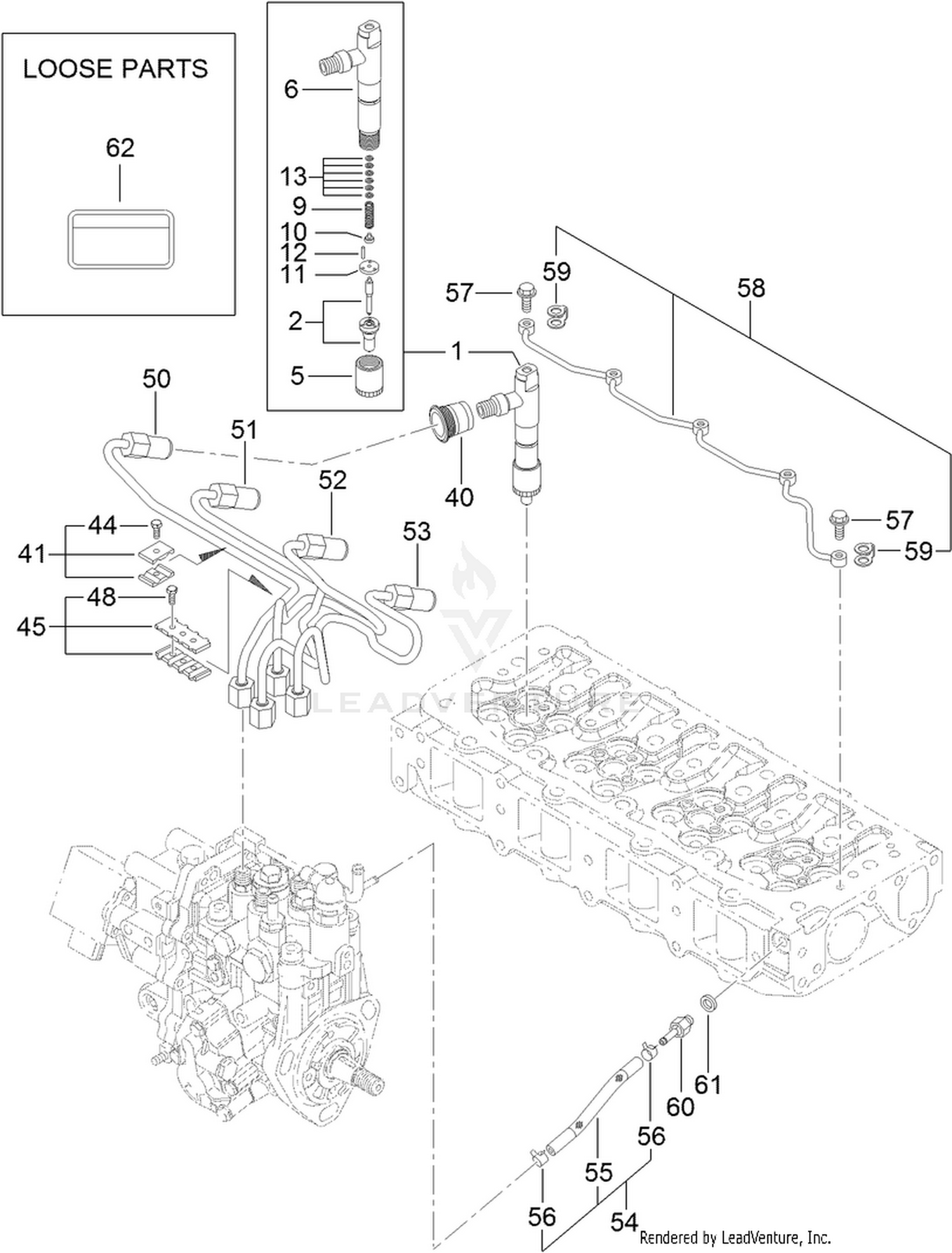

Fuel Injection Valve Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-7245 | INJECTION VALVE ASM Price: $501.48 |
| 2 | 125-7133 | NOZZLE ASM Price: $126.04 |
| 5 | 125-6901 | NUT Price: $28.96 |
| 6 | 125-7245 | INJECTION VALVE ASM This part replaces 125-7080. Price: $501.48 |
| 9 | 125-6902 | SPRING Price: $3.26 |
| 10 | 125-6903 | SEAT-SPRING Price: $2.99 |
| 11 | 125-6904 | PLATE Price: $12.98 |
| 12 | 125-6905 | PIN Price: $4.09 |
| 13 | 125-6939 | SHIM SET Price: $90.29 |
| 40 | 125-6964 | SEAL Price: $30.15 |
| 41 | 125-6907 | RETAINER Price: $18.02 |
| 44 | 125-7027 | BOLT Price: $4.09 |
| 45 | 125-7097 | RETAINER Price: $38.50 |
| 48 | 125-7027 | BOLT Price: $4.09 |
| 50 | 125-7082 | INJECTION PIPE ASM Price: $59.03 |
| 51 | 125-7083 | INJECTION PIPE ASM Price: $59.03 |
| 52 | 125-7084 | INJECTION PIPE ASM Price: $59.03 |
| 53 | 125-7085 | INJECTION PIPE ASM Price: $67.79 |
| 54 | 125-6948 | PIPE ASM Price: $14.32 |
| 55 | 125-6949 | PIPE Price: $10.82 |
| 56 | 125-6970 | CLIP Price: $4.09 |
| 57 | 125-6966 | BOLT-JOINT, PIPE Price: $13.94 |
| 58 | 125-7081 | PIPE ASM Price: $127.33 |
| 59 | 125-6967 | GASKET Price: $10.09 |
| 60 | 125-6968 | JOINT Price: $29.73 |
| 61 | 125-7174 | WASHER-SEAL Price: $5.45 |
