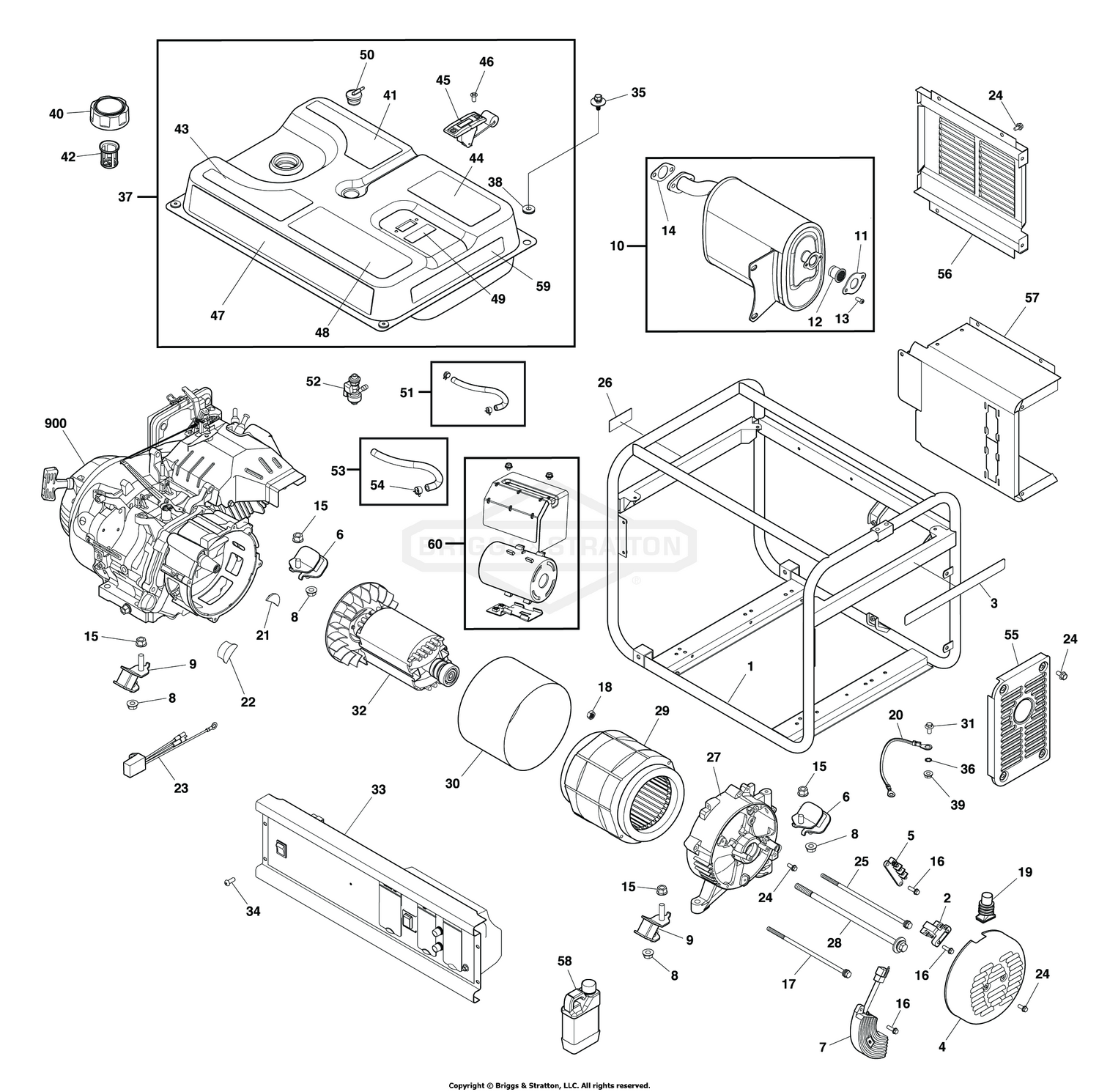

| Ref | Part Number | Description |
|---|
| 2 |
704915 |
BRUSH ASSY Price: $6.34 |
| 3 |
84003473 |
DECAL Price: $6.14 |
| 4 |
704838 |
END COVER Price: $27.77 |
| 5 |
705783 |
TERMINAL BLOCK Price: $3.52 |
| 6 |
704890 |
MOUNT-VIBRATION Price: $9.00 |
| 7 |
704913 |
VOLTAGE REGULATOR Price: $50.46 |
| 8 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 9 |
704891 |
MOUNT-VIBRATION Price: $9.95 |
| 10 |
704842 |
ASSY-MUFFLER Price: $153.11 |
| 11 |
704845 |
PLATE Price: $4.02 |
| 12 |
704846 |
SPARK ARRESTOR Price: $7.13 |
| 14 |
704853 |
GASKET-MUFFLER Price: $3.85 |
| 15 |
52859GS |
NUT, Lock Price: $1.95 |
| 16 |
84001685 |
BOLT Price: $2.60 |
| 17 |
707297 |
BOLT Price: $5.82 |
| 18 |
709931 |
NUT Price: $2.85 |
| 19 |
207879GS |
BOOT, Rubber Price: $6.22 |
| 20 |
705633 |
WIRE Price: $5.08 |
| 21 |
705772 |
GUARD-RUBBER Price: $3.59 |
| 22 |
705771 |
GUARD-RUBBER Price: $3.91 |
| 23 |
84003180 |
MODULE-SNUBBER Price: $13.38 |
| 24 |
709935 |
SCREW Price: $3.28 |
| 25 |
707298 |
BOLT Price: $6.14 |
| 26 |
84003521 |
DECAL Price: $7.62 |
| 27 |
704836 |
CARRIER-BEARING Price: $73.71 |
| 28 |
707296 |
BOLT Price: $5.77 |
| 29 |
707429 |
STATOR Price: $423.99 |
| 30 |
707295 |
BAND-STATOR Price: $36.85 |
| 31 |
590850 |
SCREW This part replaces 706152. Price: $3.02 |
| 32 |
707432 |
ROTOR Price: $258.01 |
| 33 |
REF-80082671 |
Refer to: Control Panel Group Price: Call Us |
| 34 |
772229 |
SCREW Price: $3.17 |
| 35 |
84003614 |
BOLT Price: $1.36 |
| 36 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 37 |
84003523 |
TANK-FUEL Price: $196.09 |
| 38 |
704861 |
MOUNT-VIBRATION Price: $4.07 |
| 39 |
52857GS |
NUT-M6 FLANGE Price: $3.06 |
| 40 |
704865 |
CAP-FUEL Price: $20.07 |
| 41 |
84003492 |
DECAL Price: $11.01 |
| 42 |
704863 |
FILTER-FUEL Price: $4.02 |
| 43 |
84003496 |
DECAL Price: $12.60 |
| 44 |
84003467 |
DECAL Price: $11.76 |
| 45 |
84007425 |
GAUGE-FUEL Price: $6.57 |
| 46 |
704866 |
SCREW Price: Call Us |
| 47 |
84003494 |
DECAL Price: $14.94 |
| 48 |
84003491 |
DECAL Price: $12.60 |
| 49 |
703264 |
DECAL Price: $15.53 |
| 50 |
704863 |
FILTER-FUEL Price: $4.02 |
| 52 |
310574GS |
KIT, Fuel Valve Price: $9.40 |
| 54 |
314955GS |
CLAMP Price: $4.19 |
| 55 |
705776 |
COVER-FRONT Price: $19.60 |
| 56 |
705775 |
COVER-SIDE Price: $18.49 |
| 57 |
705777 |
COVER-BACK Price: $39.21 |
| 58 |
100028 |
OIL-4 CYCLE30W 48OZ Price: $10.28 |
| 59 |
84003493 |
DECAL Price: $9.42 |
| 60 |
84003497 |
DECAL Price: $56.17 |
