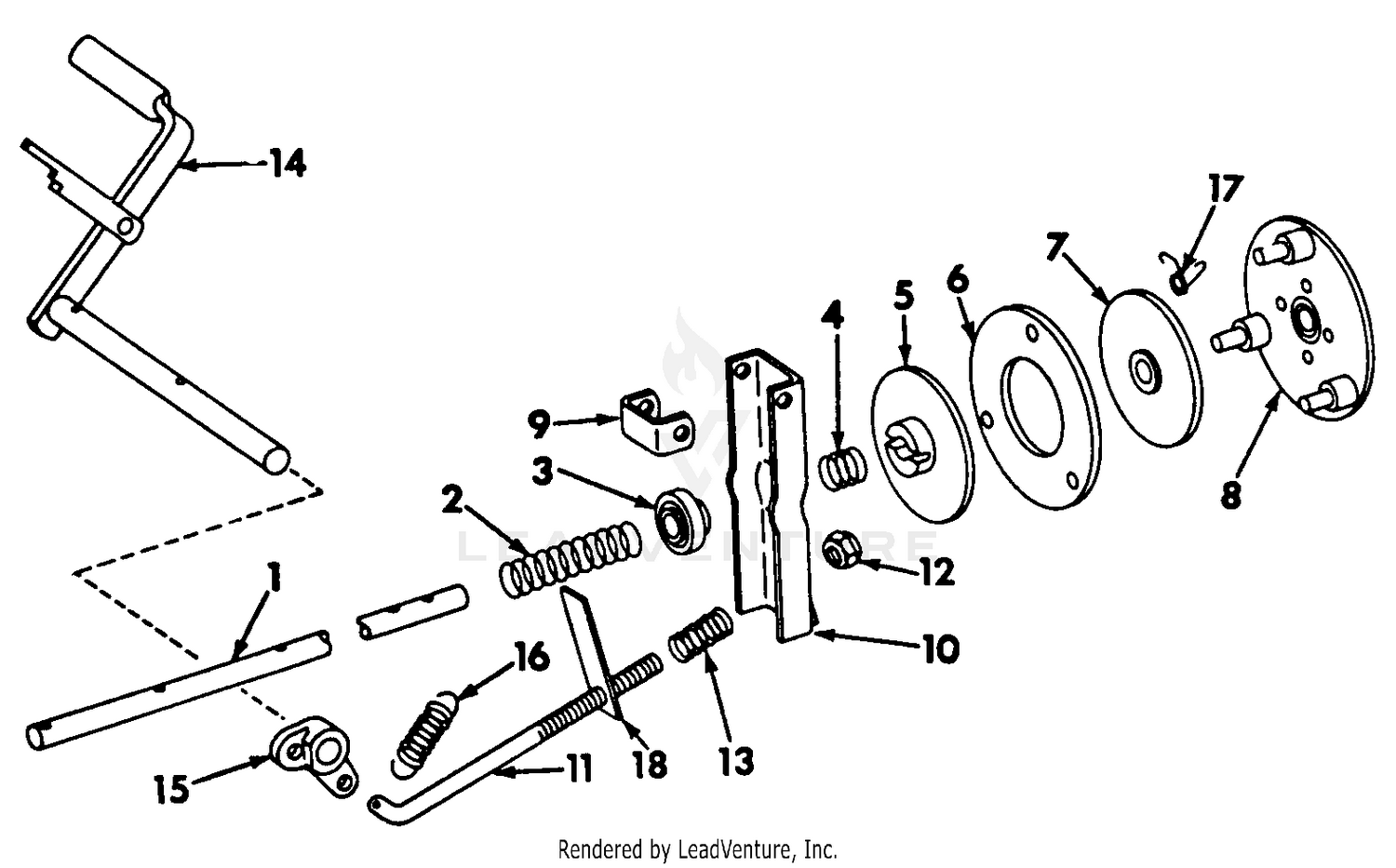

| Ref | Part Number | Description |
|---|
| 1 |
86-2280-01 |
TUBE-CARRIER, RH ASM This part replaces 86-2280. Price: $252.07 |
| 1 |
IH-385982-R91 |
Package, Clutch Shaft Service Price: $201.32 |
| 2 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 2 |
932-3016 |
COMPRESSION SPRING This part replaces 732-3016. Price: $43.27 |
| 3 |
325-11 |
SCREW-HH Price: $1.93 |
| 3 |
941-3056 |
BEARING This part replaces IH-391237-R91. Price: $94.15 |
| 4 |
732-3017 |
Spring, Clutch Teasing Price: $7.34 |
| 4 |
86-2320-01 |
TUBE-CARRIER, LH ASM This part replaces 86-2320. Price: $370.08 |
| 5 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 5 |
903-0213 |
PRESSURE PLATE HUB This part replaces 703-0213. Price: $167.08 |
| 6 |
86-8100-01 |
BALL JOINT ASM This part replaces 86-8100. Price: $137.53 |
| 6 |
961-3002 |
CLUTCH FRICTION DISC 6.0" This part replaces 761-3002. Price: $82.97 |
| 7 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 7 |
903-0214 |
PRESSURE PLATE LOCATING ASSY This part replaces 703-0214. Price: $106.76 |
| 8 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 8 |
IH-384652-R12 |
PLATE ASSEMBLY-DRIVING This part replaces IH-384652-R11. Price: $237.18 |
| 9 |
32136-2 |
NUT-SHH Price: $3.55 |
| 9 |
IH-384656-R2 |
YOKE This part replaces IH-384656-R1. Price: $41.29 |
| 10 |
IH-384657-R5 |
LEVER-CLUTCH Not Available This part replaces IH-384657-R3. Price: |
| 11 |
IH-393124-R1 |
ROD Not Available Price: |
| 12 |
712-3061 |
Nut, 3/8-24 Hex Self-Align Price: $5.94 |
| 13 |
932-3023 |
COMPRESSION SPRING This part replaces 732-3023. Price: $16.96 |
| 14 |
None |
Pedal Assy, Clutch & Brake |
| 15 |
None |
Arm, Clutch & Brake Pedal |
| 16 |
IH-370278-R2 |
SPRING Not Available This part replaces IH-370278-R1. Price: |
| 17 |
732-3018 |
Spring, Clutch Driving Disc Price: $4.52 |
| 503200735 |
503200782 |
SCREW IHSCFM This part replaces 503200735. Price: $3.99 |
| 503216618 |
503216618 |
SCREW Price: $3.99 |
| 503221013 |
503221013 |
NUT Price: $3.99 |
| 503718201 |
503718201 |
START/STOP SWITCH Price: $11.99 |
| 537160203 |
537160203 |
HANDLE Price: $17.99 |
| 537160301 |
537160301 |
HANDLE Price: $14.99 |
| 537160601 |
506497701 |
THROTTLE CONTROL This part replaces 537160601. Price: $6.99 |
| 537160701 |
537160703 |
STARTER THROTTLE LOCK This part replaces 537160701. Price: $4.99 |
| 537160801 |
506497701 |
THROTTLE CONTROL This part replaces 537160801. Price: $6.99 |
| 537174201 |
537174201 |
SPRING Price: $4.99 |
| 537174301 |
537174301 |
SPRING Price: $3.99 |
| 544250801 |
544250801 |
THROTTLE CABLE Price: $29.99 |
| 544251401 |
544251401 |
SHORT CIRCUIT CABLE Price: $17.99 |
