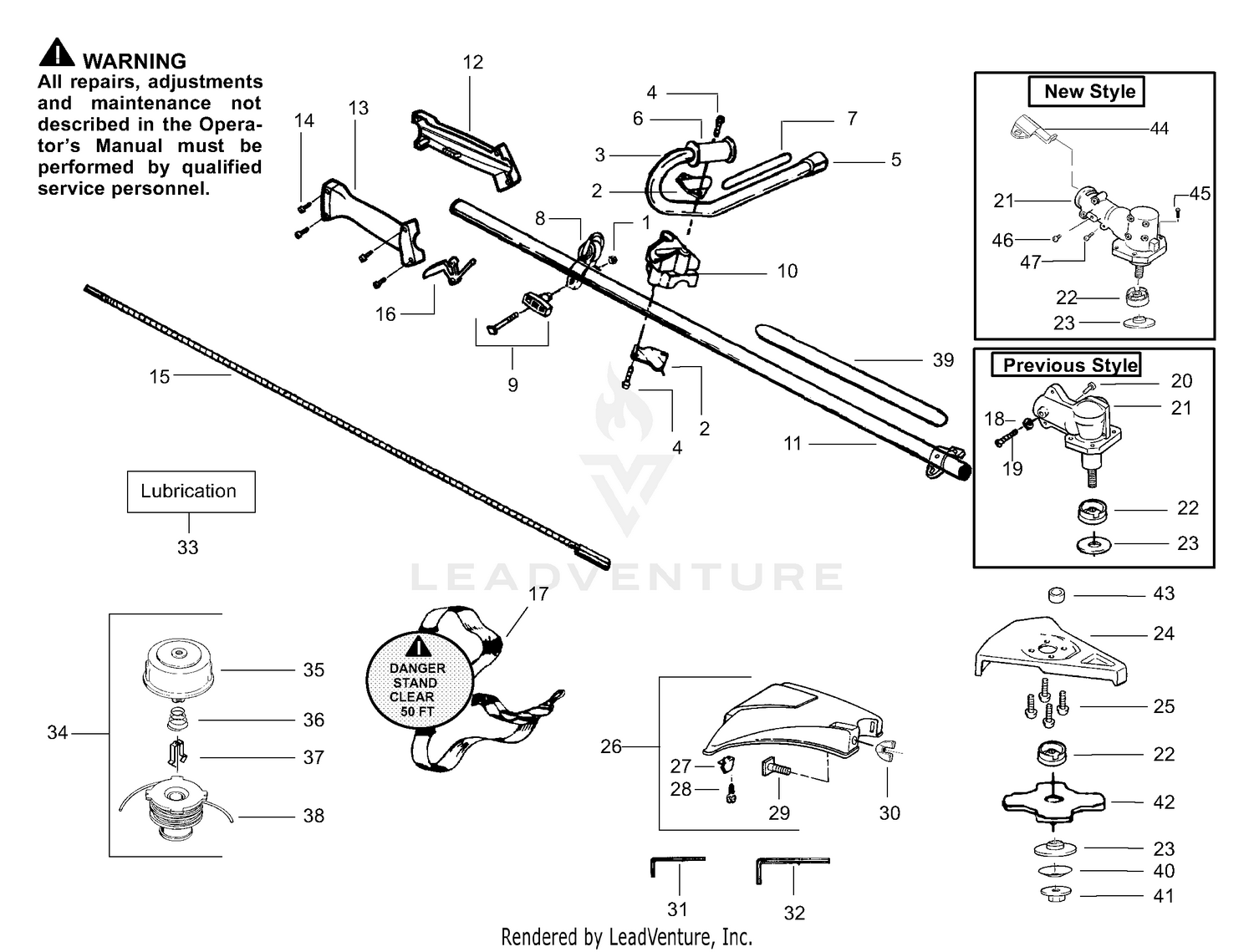

Handle & Cutting Head Assembly
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015197 | Nut Price: $1.99 |
| 1 | X-25-52 | Washer Price: Call Us |
| 2 | 530053659 | Handlebar Bracket Price: $1.99 |
| 2 | X-67-59 | Screw-Hex Hd Price: Call Us |
| 3 | 530069999 | Handlebar Ass'y. Price: $11.99 |
| 3 | X-131-1 | Screw, Price: Call Us |
| 4 | 530015791 | Screw Price: $1.99 |
| 4 | X-174-2 | Screw-F.H. Price: Call Us |
| 5 | 47_411_04 | Rod-Breaker Price: Call Us |
| 5 | 530092192 | Handlebar Cap Price: $0.99 |
| 6 | 530092086 | Handlebar Grip Price: $4.99 |
| 6 | X-728-1 | Clip Price: Call Us |
| 7 | 530027884 | Handlebar Warning Decal Price: Call Us |
| 7 | X-778-1 | Screw Price: Call Us |
| 8 | 52_041_11 | Gasket-Cover Price: Call Us |
| 8 | 530094686 | Harness Clamp Ass'y. Price: $4.99 |
| 9 | 238057 | Kit, Hi-Tension Price: Call Us |
| 9 | 530069347 | HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 10 | 232535 | Cover Price: Call Us |
| 10 | 530012207 | Handlebar Clamp Price: $8.99 |
| 11 | 237429 | Connector Price: Call Us |
| 12 | 275303 | Clip Price: Call Us |
| 12 | 530036514 | Throttle Hsg. Left Price: $1.99 |
| 13 | 237878 | Stator Price: Call Us |
| 13 | 530036515 | Throttle Hsg. Right Price: $1.99 |
| 14 | 235041-S | Plug-Spark Price: Call Us |
| 14 | 530015957 | Screw This part replaces 530015966. Price: $1.99 |
| 15 | 47_150_03 | Breaker Price: Call Us |
| 16 | 230722 | Condenser Price: Call Us |
| 16 | 530036556 | Throttle Lever Price: $1.99 |
| 17 | 231281 | Coil Price: Call Us |
| 17 | 530094417 | Shoulder Strap Price: $20.65 |
| 18 | 530015328 | Lockwasher Price: $1.99 |
| 19 | 530016140 | Screw Price: $1.99 |
| 20 | 530015650 | Screw-Pinch Clamp Price: $1.99 |
| 24 | 530069780 | Metal Shield Kit Price: $19.99 |
| 25 | 530016141 | Screw Price: $1.99 |
| 27 | 530052285 | Line Limiter Price: $1.99 |
| 28 | 530015805 | Screw Price: $1.99 |
| 29 | 530015820 | Bolt Price: $1.99 |
| 30 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 31 | 530031159 | Hex Wrench (5/32) Price: $1.99 |
| 32 | 530031098 | Hex Wrench (3/16) Price: $0.99 |
| 33 | 952030139 | Shaft Lubrication This part replaces 952701570. Price: $2.99 |
| 35 | 530095772 | TNG VI HUB ASSY LH This part replaces 530053245. Price: $5.42 |
| 36 | 530053241 | Spring-Return Price: $1.99 |
| 37 | 530401957 | Retainer-Spool Price: $1.99 |
| 38 | 952701707 | Spool w/Line Price: Call Us |
| 39 | 530049673 | Decal Shaft Warning Price: $0.12 |
| 40 | 530016240 | Washer-Belleville Price: $1.99 |
| 41 | 530015793 | Nut Price: $1.99 |
| 42 | 952701611 | Weed Blade Price: $26.19 |
| 43 | 530019235 | Seal Sleeve Price: $1.99 |
