Electrical

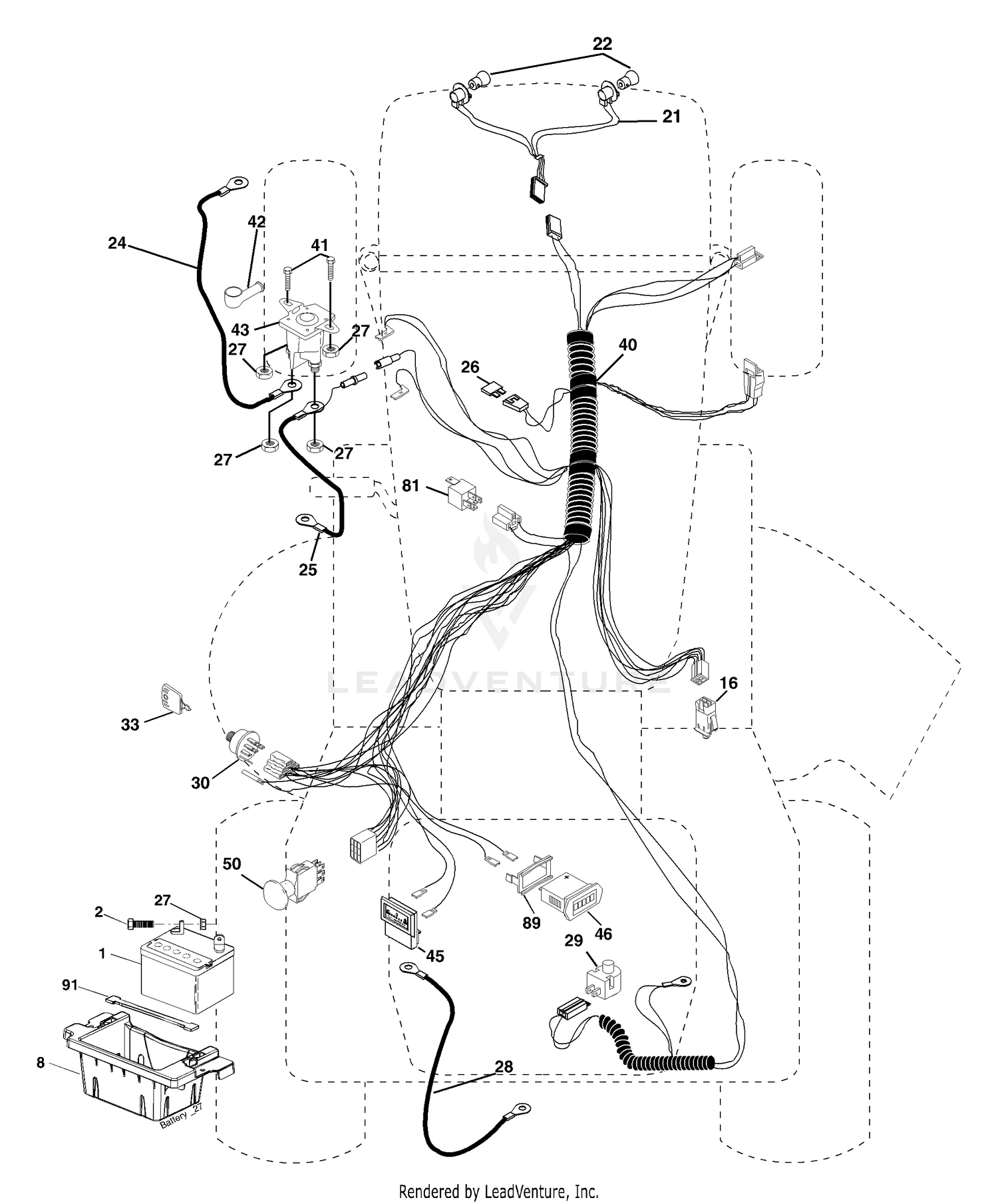

Electrical

Parts (37)

RefPart NumberDescription
1 532125603 This part replaces 532144927. Price: $145.99
2 874760412 Bolt Hex Hd 1/4-20 unc x 3/4 Price: $3.99
8 532186491 Box Battery Price: $11.99
010 105-3786 SPRING-START Price: $3.91
16 532176138 Switch Interlock Push-In Price: $11.99
020 98-9681 SPRING-GOVERNOR Price: $12.06
21 532183759 Harness Asm Light W/4152j Price: $28.99
22 532004152 Bulb Light #1156 Price: $2.99
24 532004799 BATTERY CABLE This part replaces 532124780. Price: $6.99
25 532146148 Cable Battery 6 Ga. 22" red w/16 wire Price: $11.99
26 532175158 Fuse 20 AMP Price: $3.99
27 873680400 Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69
28 532145491 Cable Ground black Price: $6.99
29 532160784 Switch Plunger Normal Op Olive Price: $11.99
030 105-3787 FORK LEVER ASM Price: $220.75
30 532175566 Switch Ignition Delta Push-In This part replaces 532189687. Price: $9.99
33 532140401 Key Ign Molded Generic Price: $3.69
040 99-8380 FORK LEVER ASM Price: $172.25
40 532179724 Harness Ign. Price: $115.99
41 539990071 HCS.1/4-20.X1/2 This part replaces 871110408. Price: $1.99
42 532154336 Cover, Terminal Red This part replaces 532131563. Price: $4.99
43 532146154 KIT SOLENOID .95 This part replaces 532178861. Price: $14.99
45 532122822 Ammeter Price: $11.99
46 532169642 HOUR METER This part replaces 532169635. Price: $109.99
050 105-3743 LEVER-FORK Price: $20.27
50 532174651 Switch PTO Price: $22.99
060 98-9566 SHAFT-LEVER, FORK Price: $23.27
070 98-9593 WASHER-PLAIN Price: $2.33
080 98-9570 BEARING-MINIATURIZE Price: $13.60
81 532109748 Relay Asm. Price: $19.99
89 532169639 Bracket Snap-In Hourmeter Price: $3.99
090 98-9369 CLIP-CIRCULAR, EXTERNAL Price: $0.70
90 532435395 COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $2.99
100 130-8182 KIT-SHAFT COVER, FORK LEVER This part replaces 98-9569. Price: $13.53
110 98-9682 GASKET Price: $0.95
120 98-9351 BOLT Price: $0.98
130 98-9567 COLLAR Price: $3.78
