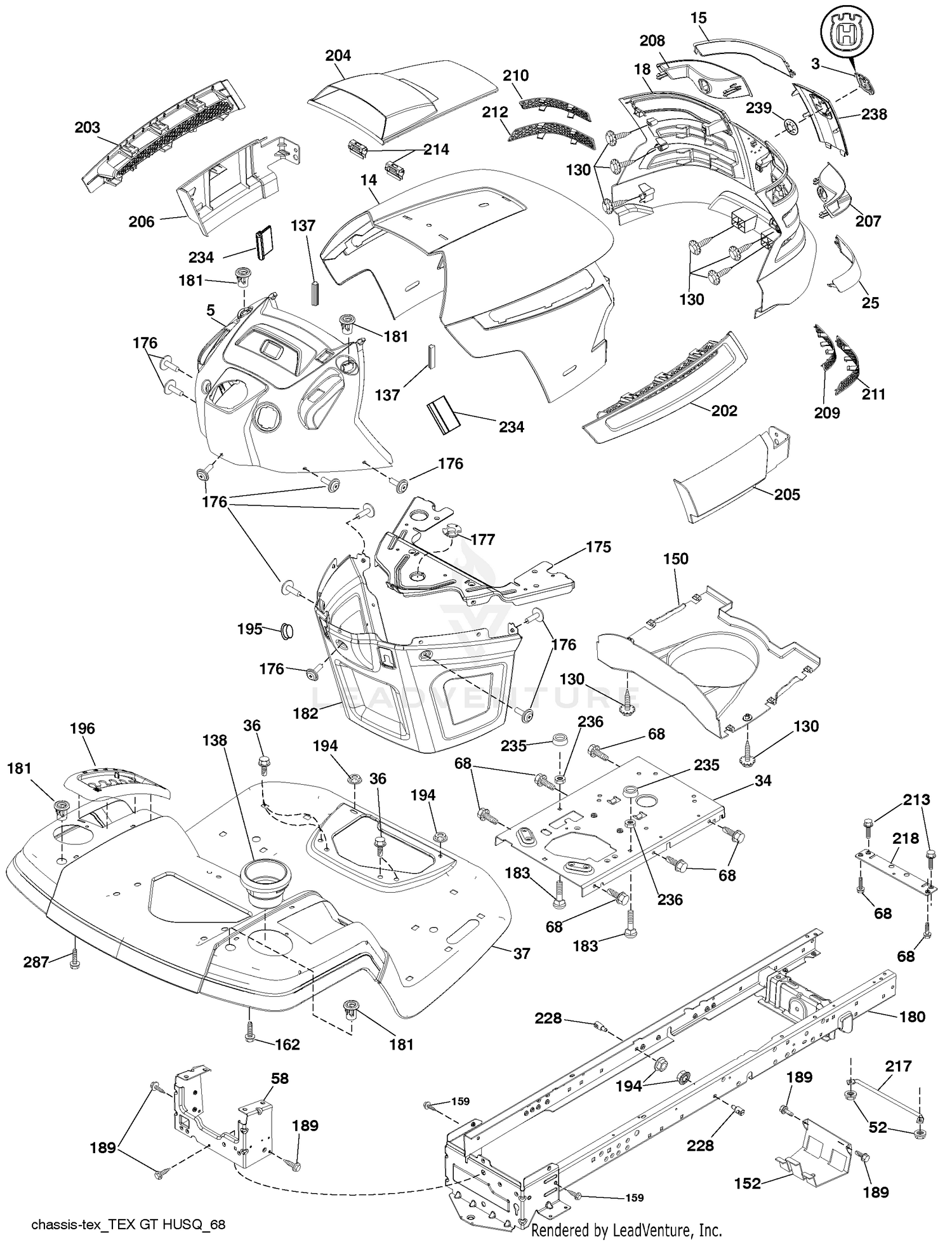

| Ref | Part Number | Description |
|---|
| 1 |
63-7340 |
DISCONTINUED Price: Call Us |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
532430771 |
LOGO.HUSQ.GT.LT.CROWN.H This part replaces 532405012. Price: $5.99 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 5 |
532408702 |
DASH.ASM.HUSQ.GT.CC.RECT.W/C Price: $59.99 |
| 6 |
94-7343 |
BASE-BATTERY This part replaces 66-2330. Price: $118.61 |
| 7 |
3272-15 |
PIN-COTTER Price: $0.47 |
| 8 |
63-7141 |
MOUNT-SHOCK, ENGINE Price: $61.74 |
| 9 |
321-4 |
SCREW-HH Price: $0.99 |
| 10 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 12 |
2412-104 |
CLAMP-R Price: $2.37 |
| 13 |
32128-33 |
NUT-HF Price: $0.25 |
| 14 |
323-18 |
SCREW-HH Price: $0.82 |
| 14 |
532442396 |
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN This part replaces 532411046. Price: $149.99 |
| 15 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
532198907 |
LENS.LH.TEX.GT.HUSQ.CL Price: $22.99 |
| 16 |
29-4730 |
WASHER-FLAT Price: $13.10 |
| 17 |
43-5320-03 |
PULLEY-PTO This part replaces 43-5320. Price: $373.80 |
| 18 |
532408607 |
GRILL.ASM.HUSQ.TG/CRD.W/TRIM Price: $129.99 |
| 18 |
63-6240 |
V-BELT Price: $54.64 |
| 19 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 20 |
139-7798-03 |
PTO SHAFT This part replaces 63-6220. Price: $527.02 |
| 21 |
3246-1 |
SCREW-SET Price: $6.24 |
| 22 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 23 |
251-253 |
BEARING Price: $22.84 |
| 24 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 25 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 25 |
532198906 |
LENS.RH.TEX.GT.HUSQ.CL Price: $32.99 |
| 26 |
92-8751-03 |
PTO BEARING BRACKET ASM This part replaces 63-6530. Price: $56.99 |
| 27 |
323-10 |
SCREW-HH Price: $0.89 |
| 28 |
54-9090 |
YOKE-END Price: $202.33 |
| 29 |
54-9170 |
TUBE-SLIP YOKE Price: $364.94 |
| 30 |
302-58 |
FITTING-STRAIGHT Price: $0.81 |
| 31 |
54-9050 |
SHAFT-SLIP YOKE Price: $200.01 |
| 32 |
54-9040 |
YOKE-END Price: $246.14 |
| 33 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 34 |
322-9 |
SCREW-HH Price: $3.09 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532196125. Price: $59.99 |
| 35 |
54-9180 |
U-JOINT KIT Price: $58.18 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
322-3 |
SCREW-HH Price: $0.79 |
| 37 |
597652401 |
SERVICE KIT FENDER.TLT.CPH.615 This part replaces 532418714. Price: $219.99 |
| 38 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 39 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 41 |
323-11 |
SCREW-HH Price: $1.08 |
| 42 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 43 |
63-7140 |
MOUNT-SHOCK, ENGINE Price: $54.67 |
| 46 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 54 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 55 |
71-3500 |
DISCONTINUED Price: Call Us |
| 57 |
66-2670 |
BRACKET-THROTTLE Price: $8.98 |
| 58 |
531152601 |
SERVICE KIT DRAWBAR FENDER DRA This part replaces 532412280. Price: $44.99 |
| 59 |
76-1000 |
THROTTLE CABLE Price: $35.96 |
| 62 |
43-4031 |
CABLE-BATTERY, POSITIVE Price: $136.18 |
| 63 |
28-1280 |
DISCONTINUED Price: Call Us |
| 64 |
84-7580 |
PLATE-SUPPORT, BUSHING Price: $74.62 |
| 65 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 66 |
251-326 |
BEARING FLANGE Price: $29.84 |
| 67 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 68 |
67-1630 |
SPACER Price: $28.84 |
| 69 |
63-9750 |
MOUNT Price: $18.92 |
| 70 |
63-8410 |
WASHER Price: $1.76 |
| 72 |
32128-20 |
NUT-HF Price: $0.99 |
| 74 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 75 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 138 |
532439747 |
HOLDER.CUP.LT.GREY This part replaces 532402954. Price: $4.99 |
| 150 |
532198512 |
AIR.DUCT.HOOD.TEX.GT.HUSQ Price: $29.99 |
| 152 |
531169901 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532199535. Price: $19.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 180 |
532415063 |
CHASS.WLDMNT.TL.12GA/2P.48/54 Price: $169.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. Price: $4.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
547634701 |
CONSOLE.DECKLIFT.GREY.PKG.KIT This part replaces 532414580. Price: $17.99 |
| 202 |
532403048 |
VENT.SIDE.HOOD.HUSQ.RH.GREY Price: $7.99 |
| 203 |
532403076 |
VENT.SIDE.HOOD.HUSQ.LH.GRAY Price: $7.99 |
| 204 |
532416615 |
VENT.ASM.TORPHD.HUSQGT.LOGO.CL This part replaces 532416613. Price: $16.99 |
| 205 |
532401709 |
SKIRT.HOOD.SIDE.HUSQ.RH.GREY Price: $6.99 |
| 206 |
532401711 |
SKIRT.HOOD.SIDE.HUSQ.LH.GREY Price: $5.99 |
| 207 |
532197198 |
BEZEL.RH.TEX.GT.HUSQ Price: $19.99 |
| 208 |
532197199 |
BEZEL.LH.TEX.GT.HUSQ Price: $17.99 |
| 209 |
532199130 |
INSERT.HEX.GRILL.HUSQ.GREY Price: $4.99 |
| 210 |
532199131 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 211 |
532199132 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 212 |
532199133 |
INSERT.HEX.GRILL.HUSQ. Price: $2.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 238 |
532408606 |
TRIM.HUSQ.TG/CRD.SERVICE Price: $17.99 |
| 239 |
532110452 |
NUT PUSH M Price: $2.99 |
