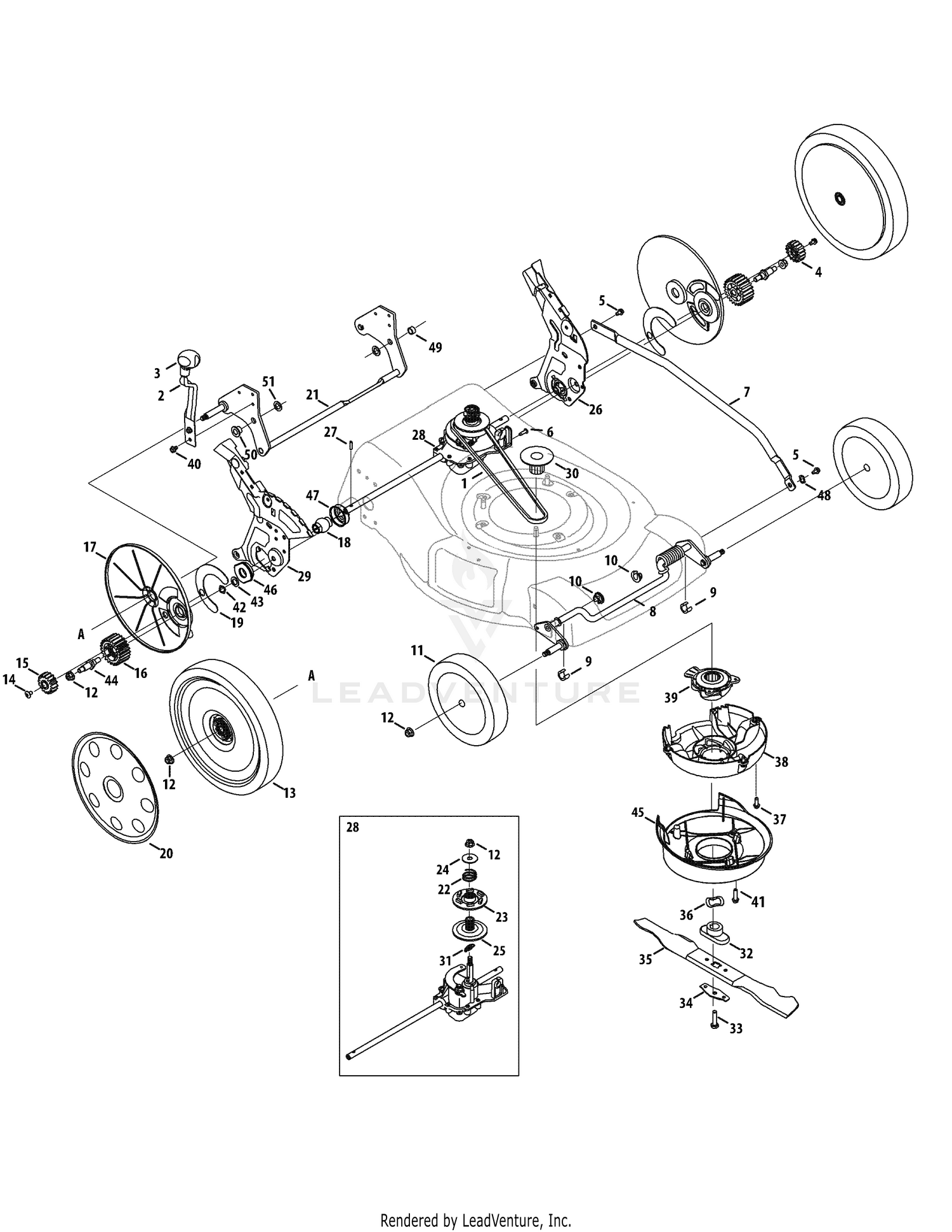

| Ref | Part Number | Description |
|---|
| 1 |
954-04176A |
Drive Belt This part replaces 754-04176. Price: $21.70 |
| 2 |
732-04480A |
LEVER SPRING Not Available Price: |
| 3 |
720-04092 |
Height Adjuster Knob Price: $5.30 |
| 4 |
917-04452 |
SPUR GEAR 16T (LH) Not Available This part replaces 717-04452. Price: |
| 5 |
738-04278 |
Shldr. Screw, 1/4-20 x 0.50 Price: $5.99 |
| 6 |
710-04762 |
SCREW #12-16 Not Available Price: |
| 7 |
749-04414A-0637 |
Cross Bracket Not Available This part replaces 749-04414. Price: |
| 8 |
687-02367B-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 687-02367. Price: |
| 9 |
731-05470 |
Clip Spacer Price: $4.36 |
| 10 |
741-04136B |
Split Hex Flange Bearing Price: $4.02 |
| 11 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 12 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 13 |
934-04404 |
WHEEL ASSEMBLY-12" W/HUBCAP Not Available This part replaces 634-04404. Price: |
| 14 |
710-04770 |
SCREW 1/4-20 x .390 Not Available Price: |
| 15 |
917-04457 |
SPUR GEAR 16T (RH) Not Available This part replaces 717-04457. Price: |
| 16 |
917-04575 |
SPUR GEAR 23T Not Available This part replaces 717-04575. Price: |
| 17 |
731-06145C |
COVER DUST Not Available This part replaces 731-06145. Price: |
| 18 |
741-0604A |
Bearing Sleeve Price: $11.31 |
| 19 |
787-01645A |
SEAL DUST PLATE Not Available This part replaces 787-01645. Price: |
| 20 |
731-06146 |
Hub Cap Price: $18.40 |
| 21 |
687-02390 |
BRACKET ASSEMBLY Not Available Price: |
| 22 |
732-04482 |
COMPRESSION SPRING 1.2365 x 1.33 Not Available Price: |
| 23 |
756-04316A |
UPPER TRANSMISSION PULLEY Not Available This part replaces 756-04316. Price: |
| 24 |
936-0406 |
Flat Washer, .442 x 1.38 x .060 This part replaces 736-0406. Price: $5.94 |
| 25 |
756-04317 |
Lower Pulley Price: $13.62 |
| 27 |
915-0221 |
Dowel Pin This part replaces 715-0221. Price: $3.93 |
| 28 |
918-04826A |
TRANSMISSION Not Available This part replaces 918-04670. Price: |
| 30 |
756-04311A |
HALF PULLEY 25 MM SHAFT Not Available Price: |
| 31 |
732-04313 |
Extension Spring Price: $3.96 |
| 32 |
748-04096 |
Blade Adapter Price: $20.09 |
| 33 |
710-1044 |
Screw, 3/8-24 x 1.50 Price: $3.48 |
| 34 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 35 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 36 |
736-0447 |
Washer, Wave, 1.5 x 1.0 x .029 Price: $3.90 |
| 37 |
710-0599 |
TT Screw, 1/4-20 x .500 Price: $3.86 |
| 38 |
731-06112A |
ENGINE LOWER BAFFLE Not Available This part replaces 731-06112. Price: |
| 39 |
956P04046 |
LOWER PULLEY Not Available This part replaces 656-04046. Price: |
| 40 |
710-0653 |
Screw, TT, 1/4-20 x .375 Price: $3.78 |
| 41 |
710-04774 |
Screw, 1/4-15 x 1.25 Price: $4.02 |
| 42 |
936-0504 |
WAVE WASHER This part replaces 736-0504. Price: $3.90 |
| 43 |
736-3068 |
Washer, Flat, .531 x .875 x .060 Price: $5.91 |
| 44 |
711-04822A |
SHAFT .500 DIA 2.456 x 3/8 Not Available Price: |
| 45 |
731-06284 |
RING BAFFLE Not Available Price: |
| 46 |
748-04177 |
Bearing Support Price: $11.23 |
| 47 |
732-0708 |
BEARING RETAINER Not Available Price: |
| 48 |
736-3012A |
Washer, Wave, .390 x .625 x .016 Price: $6.01 |
| 49 |
750-05031 |
SPACER-.499 x .860 x .380 Not Available This part replaces 750-05029. Price: |
| 50 |
750-05031 |
SPACER-.499 x .860 x .380 Not Available Price: |
