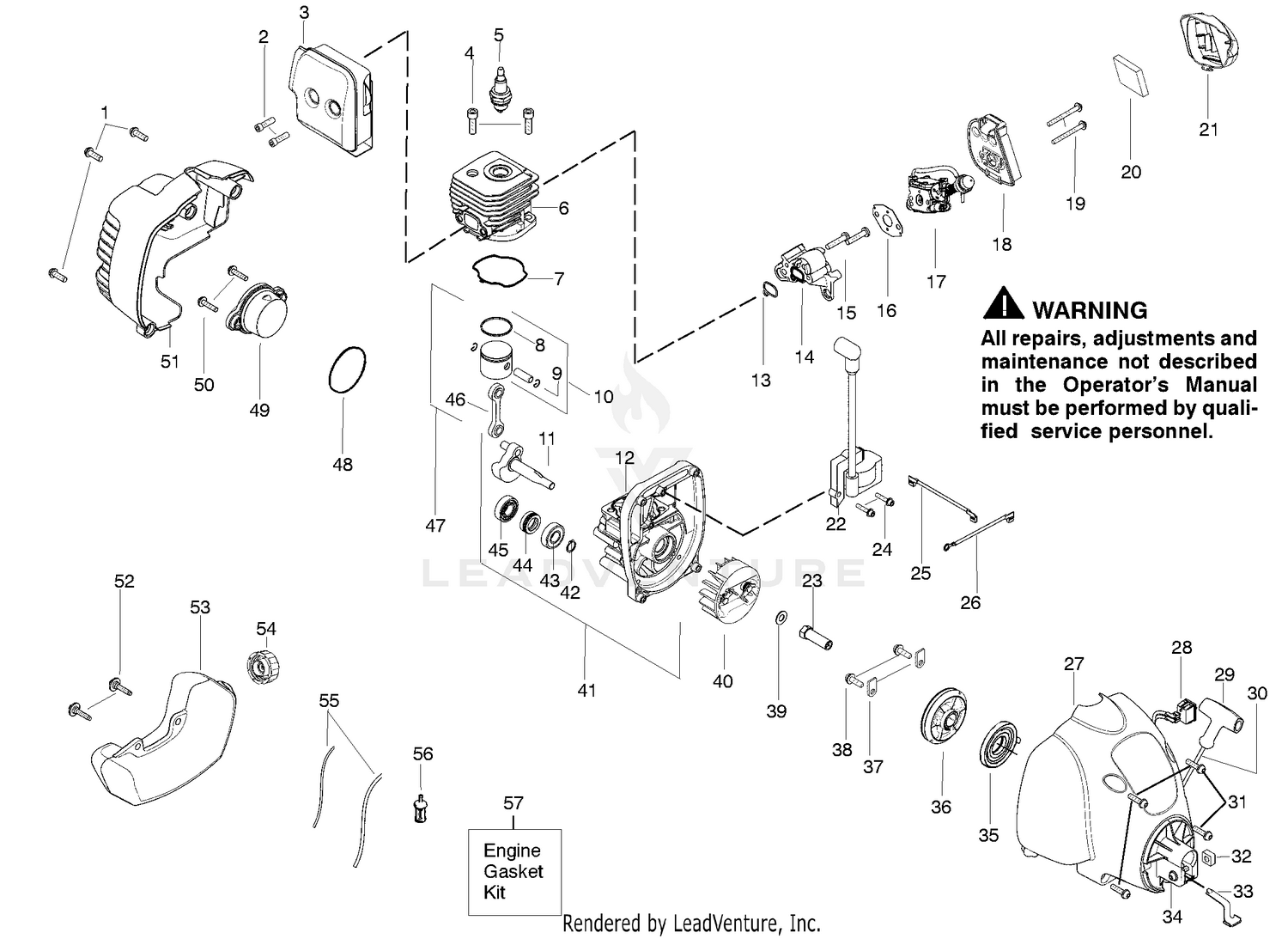

| Ref | Part Number | Description |
|---|
| 1 |
2410-30 |
CAP-PLASTIC Price: $0.83 |
| 1 |
530015814 |
SCREW Price: $1.99 |
| 2 |
253-131 |
DISCONTINUED Price: Call Us |
| 2 |
530058982 |
BOLT MUFFLER Price: $1.99 |
| 3 |
20-7680 |
DISCONTINUED Price: Call Us |
| 3 |
545227901 |
ASSY MUFFLER SHIELD Price: $19.99 |
| 4 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 4 |
530015953 |
SCREW Price: $1.99 |
| 5 |
20-7320 |
DISCONTINUED Price: Call Us |
| 5 |
503235111 |
BPMR7A NGK SPARK PLUG Price: $3.99 |
| 6 |
352-284 |
CLUTCH & BRG ASM Price: $88.61 |
| 6 |
530012541 |
CYLINDER MACHINED 25CC LO Price: $11.99 |
| 7 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 8 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 8 |
545154001 |
RING PISTON Price: $1.99 |
| 9 |
20-7690 |
DISCONTINUED Price: Call Us |
| 9 |
530015162 |
WRIST PIN RET. Price: $1.99 |
| 10 |
20-7330 |
COUNTERSHAFT Price: $14.84 |
| 10 |
530071833 |
Kit-Piston This part replaces 530071357. Price: $22.99 |
| 11 |
237-22 |
O-RING Price: $2.43 |
| 11 |
530057829 |
ASSY CRANKSHAFT Price: $12.99 |
| 12 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
530012582 |
ASSY CRANKCASE Price: $12.99 |
| 13 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 |
20-7780 |
Shaft Price: Call Us |
| 14 |
530057547 |
ADAPTOR CARBURETOR Price: $7.99 |
| 15 |
530016441 |
SCREW Price: $1.99 |
| 15 |
6663 |
SEAL-OIL This part replaces 253-130. Price: $10.99 |
| 16 |
20-7700 |
COVER ASSY Price: $263.07 |
| 17 |
20-7740 |
DISCONTINUED Price: Call Us |
| 17 |
577135902 |
CARBURETOR ASSY Price: $32.99 |
| 18 |
20-7410 |
DISCONTINUED Price: Call Us |
| 18 |
580731001 |
BASE AIRBOX BLACK This part replaces 530057585. Price: $1.99 |
| 19 |
256-27 |
BUSHING Price: $8.21 |
| 19 |
530016428 |
SCREW Price: $1.99 |
| 20 |
256-117 |
BUSHING Price: $4.07 |
| 20 |
530057781 |
FOAM AIR FILTER Price: $1.99 |
| 21 |
20-7820 |
DISCONTINUED Price: Call Us |
| 21 |
576694401 |
AIR BOX COVER Price: $2.99 |
| 22 |
32151-35 |
RING-RETAINING, EXTERNAL Price: $8.80 |
| 22 |
578287001 |
IGNITION MODULE Price: $11.99 |
| 23 |
2410-34 |
DISCONTINUED Price: Call Us |
| 23 |
530038604 |
DRIVE-COUPLING Price: $1.99 |
| 24 |
20-7360 |
DISCONTINUED Price: Call Us |
| 24 |
545003903 |
SCREW Price: $1.99 |
| 25 |
20-7340 |
DISCONTINUED Price: Call Us |
| 25 |
530014663 |
LEAD WIRE Price: $5.99 |
| 26 |
256-244 |
BUSHING Price: $5.77 |
| 26 |
581425901 |
SWITCH, GROUND WIRE Price: $1.99 |
| 27 |
580410802 |
HOUSING FAN SPRING ASSIST Price: $9.99 |
| 28 |
545081869 |
KIT SWITCH MOMENTARY Price: $1.99 |
| 29 |
530027569 |
HANDLE-STARTER Price: $1.99 |
| 30 |
530071798 |
KIT ROPE Price: $3.99 |
| 31 |
530016386 |
SCREW Price: $5.99 |
| 32 |
530016124 |
NUT SQUARE Price: $1.99 |
| 33 |
530057588 |
CLIP Price: $1.99 |
| 34 |
530016430 |
SCREW Price: $2.99 |
| 35 |
545008014 |
KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 36 |
545050407 |
KIT STARTER PULLEY Price: $11.99 |
| 37 |
530027523 |
RETAINER Price: $2.99 |
| 38 |
530016224 |
SCREW Price: $1.99 |
| 39 |
530015828 |
WASHER FLAT Price: $1.99 |
| 40 |
545221701 |
FLYWHEEL ASSY This part replaces 530054115. Price: $8.99 |
| 41 |
530071768 |
ASSEMBLY Price: $19.99 |
| 42 |
530015941 |
RETAINING RING Price: $1.99 |
| 43 |
530055728 |
OUTER BEARING Price: $6.99 |
| 44 |
530019264 |
SEAL Price: $2.99 |
| 45 |
530032125 |
BEARING Price: $11.99 |
| 46 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 47 |
530071785 |
PISTON KIT Price: $29.99 |
| 49 |
530057954 |
ASSY REAR PLUG Price: $3.99 |
| 50 |
530016386 |
SCREW Price: $5.99 |
| 51 |
545011004 |
CYLINDER COVER Price: $2.99 |
| 52 |
530016445 |
SCREW FUEL TANK RETAINER Price: $1.99 |
| 54 |
579746601 |
FUEL CAP W/O RETAINER Price: $2.99 |
| 56 |
530095646 |
FUEL PICK-UP ASSY Price: $2.99 |
