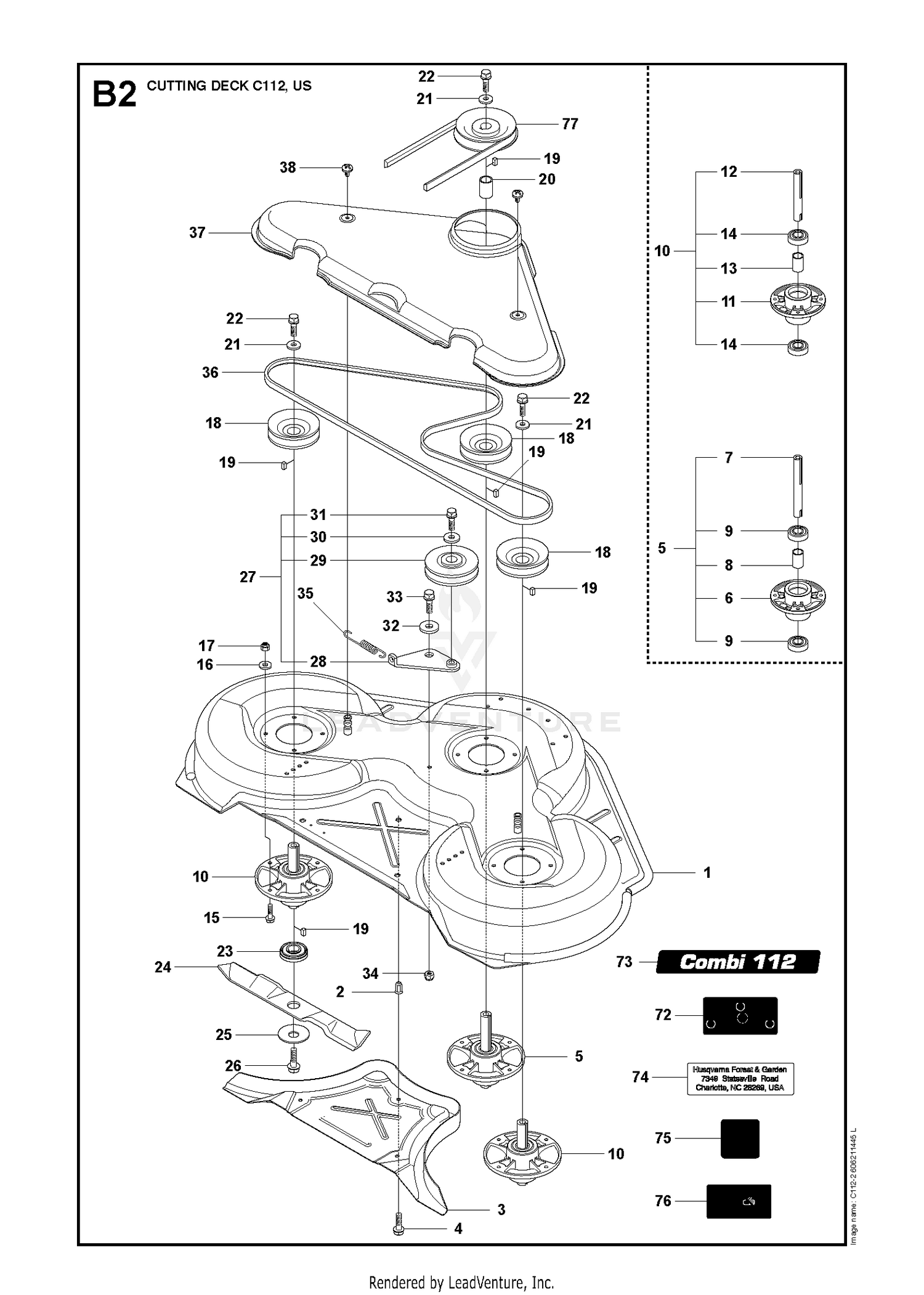

112CM CUTTING DECK
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 21-2770 | PAD-FLOOR PLATE, RH Price: $96.81 |
| 1 | 574209501 | CUTTING DECK Price: $229.99 |
| 2 | 506916201 | NUT Price: $4.99 |
| 2 | 93-7832 | DECAL-CAUTION Price: $26.67 |
| 3 | 21-2660-01 | PLATE-SIDE Price: $299.86 |
| 3 | 544449301 | PLUG Price: $69.99 |
| 4 | 32128-21 | NUT-HF Price: $0.39 |
| 4 | 506570104 | BOLT Price: $4.99 |
| 5 | 3234-12 | SCREW-HHF Price: $0.61 |
| 5 | 576384101 | BLADE HOUSING ASSY Price: $84.99 |
| 6 | 576384201 | BEARING HOUSING Price: $29.99 |
| 7 | 105-2596-01 | FENDER ASM Price: $104.53 |
| 7 | 576384301 | SHAFT Price: $29.99 |
| 8 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 9 | 107-2918 | DECAL-DANGER This part replaces 93-7806. Price: $30.43 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 3290-144 | SCREW-SHWH Price: $0.47 |
| 10 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 11 | 249-21 | CLAMP-SLOTTED Price: $18.93 |
| 11 | 576384201 | BEARING HOUSING Price: $29.99 |
| 12 | 576384302 | SHAFT Price: $21.99 |
| 13 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 14 | 32103-2 | NUT-WING Price: $0.68 |
| 14 | 738230434 | BEARING Price: $17.99 |
| 15 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 3234-33 | SCREW-HHF Price: $0.79 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 32148-9 | NUT-CLINCH Price: $2.65 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 2412-4 | CLAMP-R Price: $4.22 |
| 20 | 544068002 | SPACER Price: $9.99 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 37-9650 | TRIM-BOX, TOOL Price: $19.76 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 38-4550-03 | COVER-INSTRUMENTS Price: $448.71 |
| 24 | 504188110 | BLADE This part replaces 504188101. Price: $32.99 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 25 | 93-7823 | DECAL-OIL Price: $17.79 |
| 26 | 105-2565 | BATTERY COVER ASM Price: $83.52 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 27 | 39-8020 | TRIM-COVER, INSTRUMENT Price: $15.23 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 28 | 93-6680 | DECAL-DIESEL Price: $19.31 |
| 29 | 43-4300 | TRIM-FRAME, REAR Price: $13.54 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 30 | 93-7822 | DECAL-REFUELING Price: $17.17 |
| 31 | 32128-33 | NUT-HF Price: $0.25 |
| 31 | 506558302 | BOLT Price: $3.99 |
| 32 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 32 | 93-3183 | TOOL BOX ASM This part replaces 93-3182-03. Price: $240.67 |
| 33 | 32128-19 | NUT-HF Price: $0.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 34 | 3229-1 | BOLT-CARR Price: $3.39 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 594978001 | BELT This part replaces 535411901. Price: $59.99 |
| 37 | 544096203 | BELT COVER C112 HUSQVARNA-GREY This part replaces 544096201. Price: $44.99 |
| 37 | 68-8610-01 | EXTENSION-FENDER Price: $186.20 |
| 38 | 3234-14 | SCREW-HHF Price: $0.61 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 39 | 32144-10 | SCREW-HWH Price: $4.29 |
| 40 | 21-2760 | PAD-PLATE FLOOR, LH Price: $96.42 |
| 41 | 88-0070-01 | PLATE-FLOOR Price: $169.68 |
| 42 | 93-7839 | DECAL-DANGER Price: $37.36 |
| 43 | 93-7626-01 | FENDER-RH Price: $177.45 |
| 44 | 93-3177-03 | COVER-BOX, TOOL Price: $56.35 |
| 47 | 98-3879 | DISCONTINUED Price: Call Us |
| 48 | 93-7410-01 | PANEL-FOOTREST Price: $44.33 |
| 49 | 66-3200 | TREAD-FOOTREST, LH Price: $7.38 |
| 51 | 93-6668 | DECAL-BATTERY Price: $18.99 |
| 52 | 3234-11 | SCREW-HHF Price: $1.23 |
| 53 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 544238105 | LABEL Price: $3.99 |
| 74 | 506983901 | DECAL Price: $3.99 |
| 75 | 535437401 | DECAL Price: $3.99 |
| 76 | 574510001 | DECAL Price: $2.99 |
