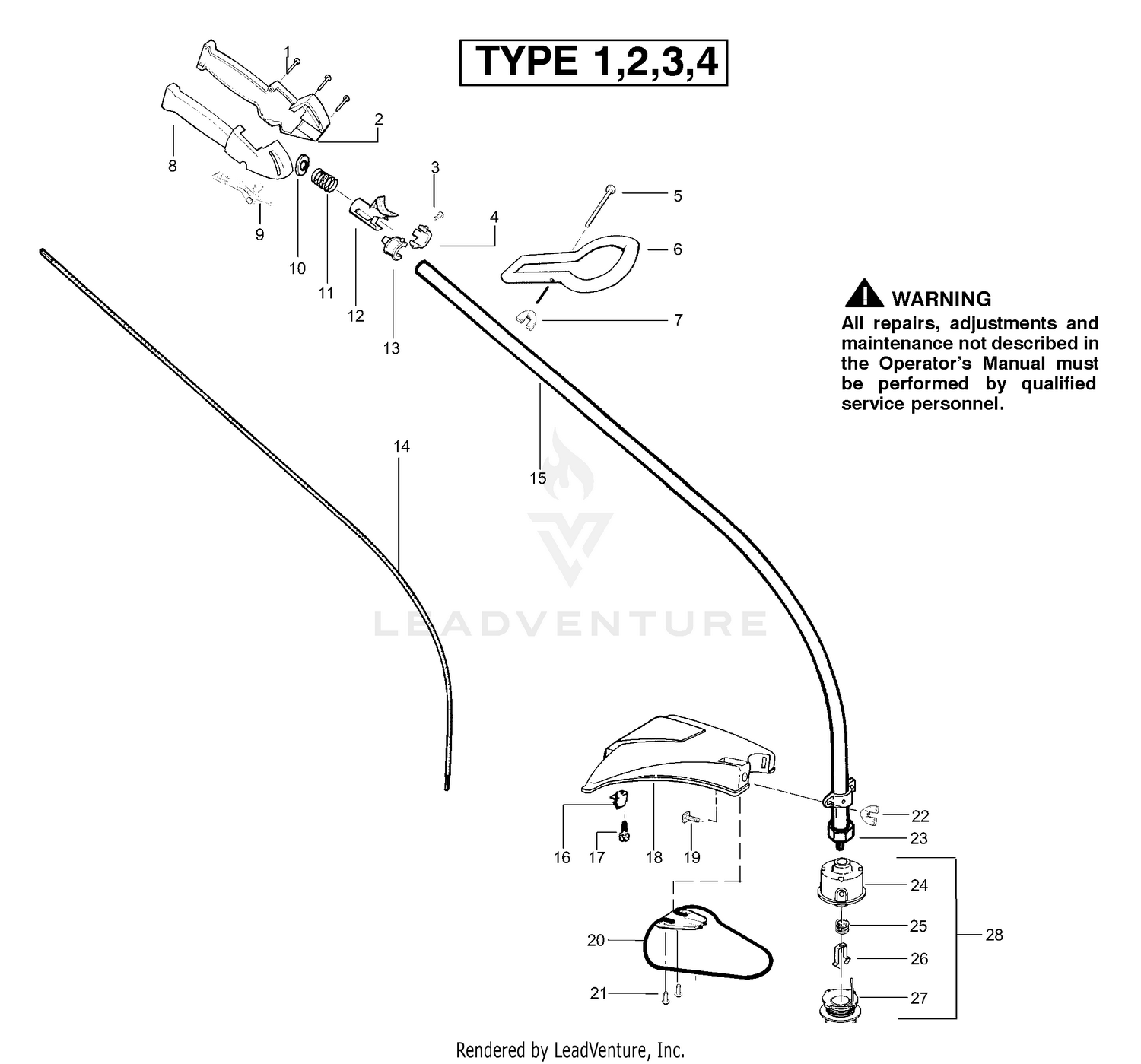

| Ref | Part Number | Description |
|---|
| 1 |
19-9520 |
DISCONTINUED X-REF Price: Call Us |
| 1 |
530016179 |
Screw Price: $1.99 |
| 2 |
321-3 |
SCREW-HH Price: $0.28 |
| 2 |
530047924 |
Throttle Hsg. (Left) Price: $3.99 |
| 3 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 3 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 4 |
256-239 |
BEARING-PILLOW BLOCK Price: $4.61 |
| 4 |
530054159 |
Locator-left Price: $4.99 |
| 5 |
19-9560 |
SPRING SPACER Price: $7.53 |
| 5 |
530016173 |
Bolt-Handle Price: $1.99 |
| 6 |
19-9540 |
LH SPRING Price: $19.44 |
| 6 |
530047919 |
Handle-Assist Price: $2.92 |
| 7 |
19-9500 |
DISCONTINUED Price: Call Us |
| 7 |
530091373 |
Nut This part replaces 530016118. Price: $1.99 |
| 8 |
530047923 |
Throttle Hsg. (Right) Price: $6.99 |
| 9 |
530038682 |
Trigger - Throttle Price: $1.99 |
| 10 |
530016193 |
Washer Price: $1.99 |
| 11 |
530042084 |
Spring-Compression Price: $1.99 |
| 12 |
530047925 |
Actuator Price: $1.99 |
| 13 |
530054160 |
Locator-right Price: $6.99 |
| 14 |
530095853 |
Flex-Drive Shaft Price: $11.99 |
| 15 |
530071416 |
Assy-Drive Shaft Hsg. Price: $32.99 |
| 16 |
530052287 |
Line Limiter Price: $1.99 |
| 17 |
530015814 |
Screw-Line Limiter Price: $1.99 |
| 19 |
530015820 |
Bolt-Shield Price: $1.99 |
| 20 |
530054459 |
Assy-Wire Guard Price: $3.99 |
| 21 |
530016179 |
Screw Price: $1.99 |
| 22 |
530091373 |
Nut This part replaces 530016118. Price: $1.99 |
| 23 |
530095574 |
Dust Cup Price: $1.99 |
| 24 |
530095770 |
Assy-Hub Price: $11.99 |
| 25 |
530401958 |
Spring-Return Price: $1.99 |
| 26 |
530401957 |
Retainer-Spool Price: $1.99 |
| 27 |
952701678 |
Accy W/E Spool w/Line This part replaces 952711594. Price: $5.95 |
| 28 |
952711593 |
Accy-Cutting Head Price: $18.95 |
