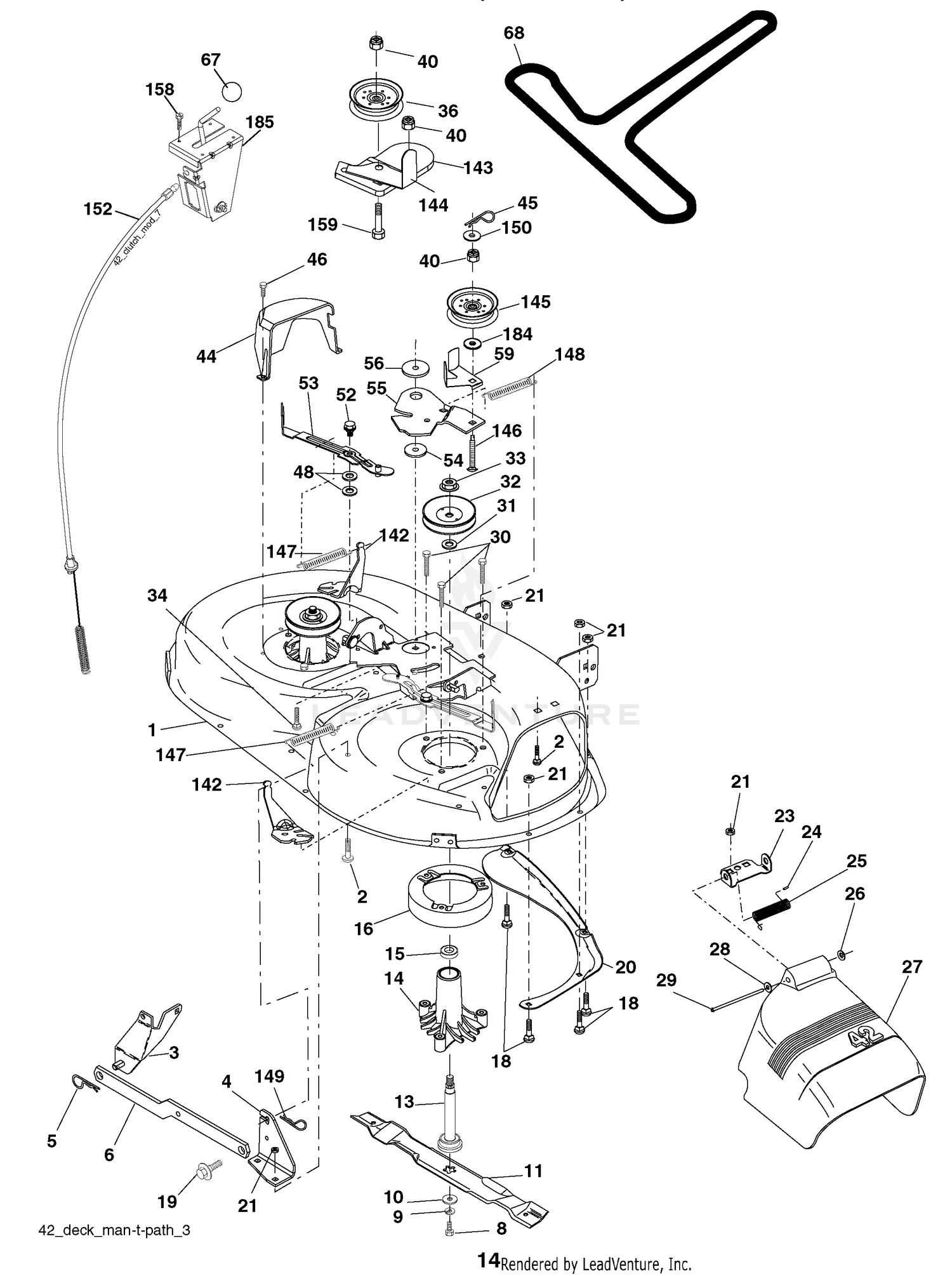

| Ref | Part Number | Description |
|---|
| 1 |
165892 |
Mower Deck Assembly, 42" Price: Call Us |
| 1 |
93-6028 |
PLATE-LOGO Price: $13.70 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 2 |
94-2638 |
NUT-FLAT Price: $0.54 |
| 3 |
100-5506-03 |
SCREEN ASM Price: $1,590.41 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
104-2225 |
SEAL-BULB Price: $60.59 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
104-3590 |
SEAL-BULB Price: $37.82 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
104-3580 |
SEAL-CORNER, SCREEN Price: $32.63 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 7 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 8 |
32144-109 |
SCREW-THD Price: $1.29 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
104-3589 |
PIVOT-SCREEN Price: $79.95 |
| 10 |
104-3588-03 |
PIVOT-SCREEN Price: $32.46 |
| 10 |
140296 |
Washer, Hardened (The following Blades are available) Price: Call Us |
| 11 |
104-8338 |
HOOD ASM Price: $2,779.60 |
| 11 |
134149 |
Blade, Mulching 42†Std (for mulching mowers only) Price: Call Us |
| 11 |
138971 |
Blade Mower 42†Hi-Lift (for bagging and discharging) Price: Call Us |
| 11 |
139775 |
Blade Mulching 42†Premium (For better wear when mulching) Price: Call Us |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 16 |
104-3560-03 |
DEFLECTOR-FILTER, OIL Price: $45.90 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 18 |
98-5398 |
LATCH Price: $32.53 |
| 19 |
105-4531 |
COVER-LATCH Price: $32.23 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
104-3591-03 |
BRACKET-LATCH, HOOD Price: $50.28 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 21 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 22 |
104-2253-03 |
BRACKET-LATCH, LH Price: $66.38 |
| 22 |
104-2255-03 |
BRACKET-LATCH, RH Price: $66.38 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
32128-33 |
NUT-HF Price: $0.25 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
321-4 |
SCREW-HH Price: $0.99 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
137-3101 |
SCREW-PLASTIC, HWH This part replaces 46-8092. Price: $0.59 |
| 28 |
104-3505-03 |
SUPPORT-HOOD Price: $120.77 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 29 |
2412-134 |
CLAMP-R Price: $5.79 |
| 30 |
104-8313 |
ROD-HOOD Price: $58.83 |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 32 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
32104-4 |
SCREW Price: $0.47 |
| 33 |
400234 |
Nut, Toplock Price: Call Us |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
106932X |
Knob Round Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
