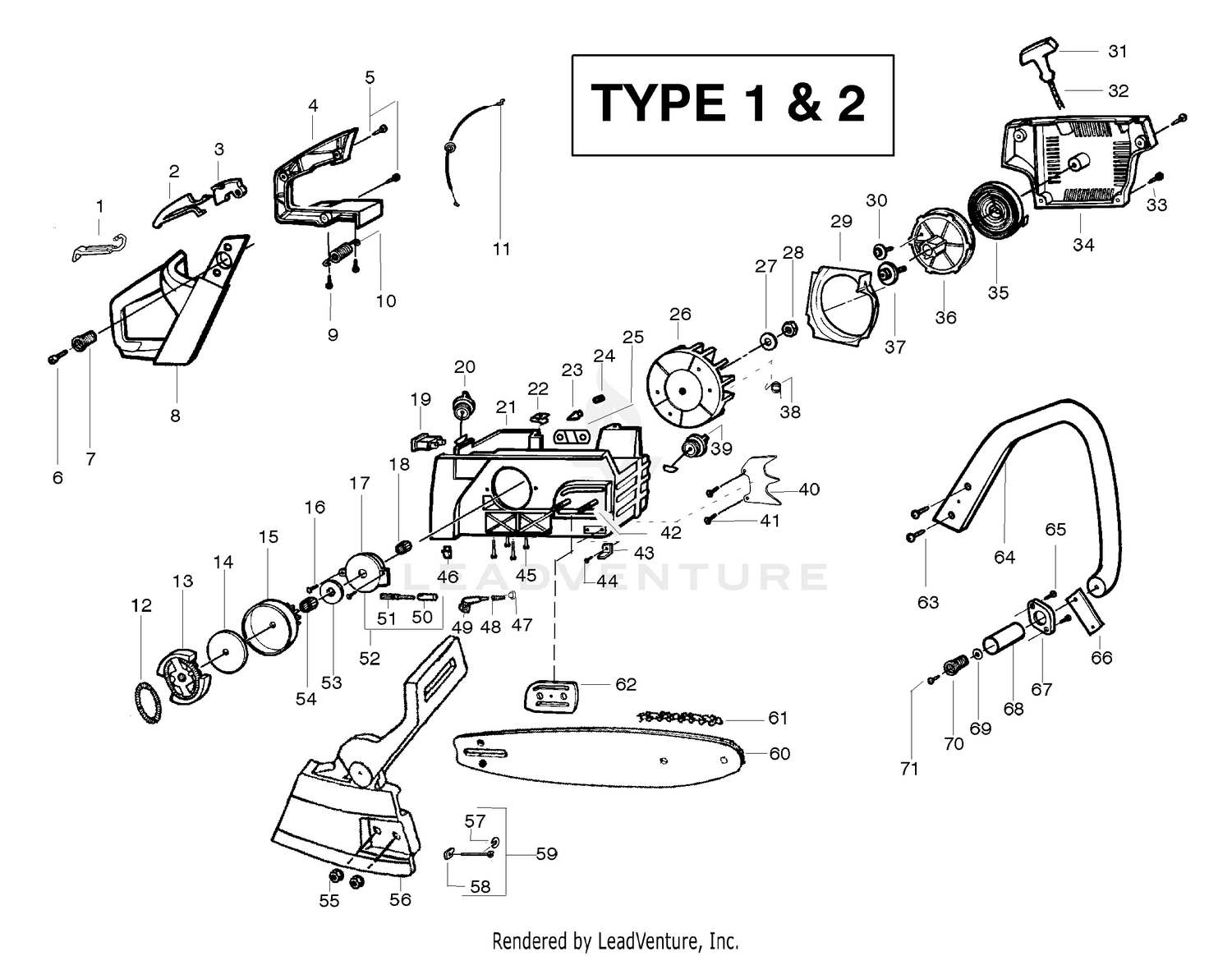

| Ref | Part Number | Description |
|---|
| 1 |
251-347 |
BEARING-BALL Price: $9.69 |
| 1 |
530053443 |
Choke Lever Price: $1.99 |
| 2 |
530036098 |
Throttle Lockout Price: $1.99 |
| 3 |
106-6941 |
SEAL Price: $5.74 |
| 3 |
530036097 |
Throttle Trigger Price: $1.99 |
| 4 |
106-6942 |
V-RING Price: $8.86 |
| 4 |
530071272 |
Cover-Handle This part replaces 530036491. Price: $64.99 |
| 5 |
107-8133 |
WASHER-FLAT Price: $3.05 |
| 5 |
530015957 |
Screw Price: $1.99 |
| 6 |
107-3505 |
SPACER-TOOL, ROLLER Price: $8.20 |
| 6 |
530015937 |
Screw Price: $1.99 |
| 7 |
530038985 |
Spring - Isolator Price: $1.99 |
| 8 |
530071272 |
Cover-Handle This part replaces 530036130. Price: $64.99 |
| 9 |
530015906 |
Screw Price: $1.99 |
| 10 |
530038986 |
Isolator Spring Price: $1.99 |
| 11 |
530038471 |
Throttle Cable Price: $6.99 |
| 12 |
530014949 |
Clutch Ass'y. This part replaces 530094188. Price: $7.99 |
| 13 |
530014949 |
Clutch Ass'y. Price: $7.99 |
| 14 |
530015611 |
Clutch Washer Price: $1.99 |
| 16 |
530015896 |
Screw Price: $1.99 |
| 17 |
545036801 |
PLUNGER & GEAR ASSY This part replaces 530029835. Price: $11.99 |
| 18 |
530029833 |
Oil Pump Worm Price: $3.99 |
| 19 |
530069572 |
Switch Kit Price: $4.99 |
| 20 |
530010845 |
Fuel Cap Ass'y. Price: $5.99 |
| 21 |
530047005 |
Chassis Ass'y. Price: $3.33 |
| 22 |
530015922 |
Speed Nut Price: $1.99 |
| 23 |
530026119 |
Check Valve Price: $1.99 |
| 24 |
530029868 |
Vent Plug Price: $1.99 |
| 25 |
530036043 |
Bar Stud Plate Price: $1.99 |
| 26 |
575635501 |
FLYWHEEL ASSY This part replaces 530039147. Price: $9.99 |
| 27 |
530015127 |
Washer Price: $1.99 |
| 28 |
530016071 |
Nut Price: $1.99 |
| 29 |
530047667 |
Baffle Plate Price: $1.99 |
| 30 |
530016080 |
Screw Price: $1.99 |
| 31 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 32 |
530069232 |
Rope Kit Price: $3.99 |
| 33 |
530015892 |
Screw Price: $1.99 |
| 35 |
545008005 |
RETURN SPRING This part replaces 530015891. Price: $3.99 |
| 36 |
530069313 |
Kit - Starter Pulley Price: $4.99 |
| 37 |
530015920 |
Screw Price: $1.99 |
| 38 |
530023817 |
Spring - Starter Dog Price: $1.99 |
| 39 |
530057236 |
OIL TANK CAP This part replaces 530010846. Price: $5.99 |
| 41 |
530015805 |
Screw Price: $1.99 |
| 42 |
530015877 |
Bar Bolt Price: $2.99 |
| 43 |
530029850 |
Chain Catcher Price: $1.99 |
| 44 |
530015906 |
Screw Price: $1.99 |
| 45 |
530016037 |
Screw Price: $1.99 |
| 46 |
545037101 |
OIL HOSE This part replaces 530019174. Price: $6.99 |
| 47 |
530056533 |
Filter-Oil This part replaces 530030189. Price: $2.99 |
| 48 |
530056533 |
Filter-Oil This part replaces 530037821. Price: $2.99 |
| 49 |
545047801 |
Pickup-Oil This part replaces 530037057. Price: $2.99 |
| 50 |
545036801 |
PLUNGER & GEAR ASSY This part replaces 530029834. Price: $11.99 |
| 51 |
545036801 |
PLUNGER & GEAR ASSY This part replaces 530029838. Price: $11.99 |
| 53 |
530015907 |
Thrust Washer Price: $1.99 |
| 54 |
530032119 |
Clutch Bearing Price: $4.99 |
| 55 |
530015917 |
Bar Mounting Nut Price: $0.99 |
| 56 |
530054803 |
Assy-Chainbrake Price: $37.99 |
| 57 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 58 |
530015826 |
Bar Adjusting Pin Price: $1.99 |
| 60 |
952044326 |
Bar Price: $37.95 |
| 61 |
952051310 |
Chain Price: $24.99 |
| 62 |
530047855 |
Bar Plate Price: $3.99 |
| 63 |
530015814 |
Screw Price: $1.99 |
| 64 |
530053955 |
ASSY HANDLE BAR This part replaces 530038327. Price: $11.99 |
| 65 |
530015775 |
Screw Price: $1.99 |
| 66 |
530036113 |
Front Strap Price: $2.99 |
| 67 |
530036101 |
Isolator Plate Price: $1.99 |
| 68 |
530036142 |
Spring Sleeve Price: Call Us |
| 69 |
530015123 |
Washer Price: $1.99 |
| 70 |
530038985 |
Isolator Spring Price: $1.99 |
