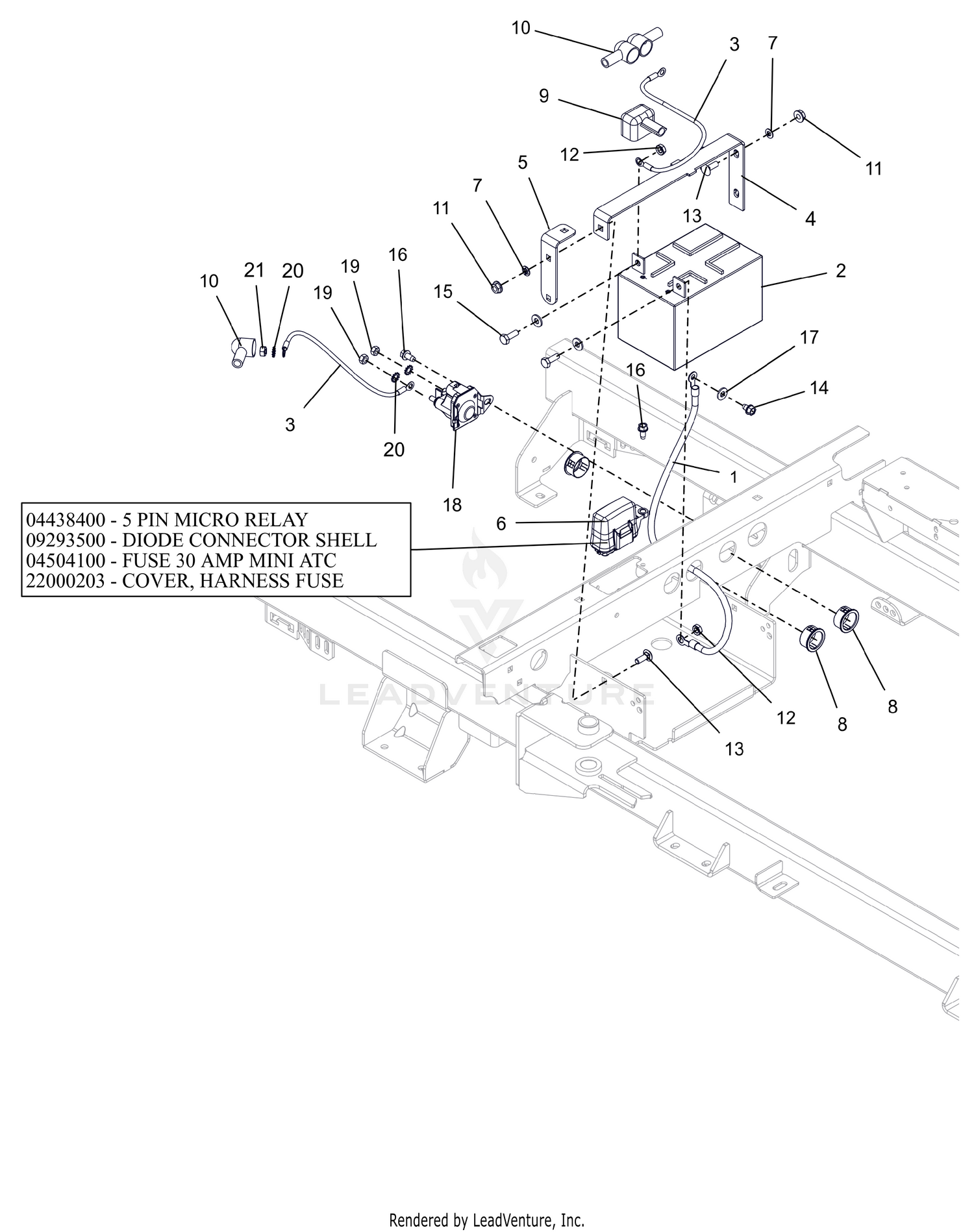

| Ref | Part Number | Description |
|---|
| 1 |
03288100 |
CABLE-NEGATIVE BATTERY 24.00" Price: $15.95 |
| 2 |
04738800 |
BATTERY, 12V 12A-190CCA Price: $114.95 |
| 3 |
04787400 |
CABLE,POS W/2 1/4 RING 15.0 LG Price: $8.95 |
| 4 |
04794651 |
BRKT, BATTERY HOLD-DOWN Price: $22.45 |
| 5 |
04833651 |
BRKT, BATTERY HOLD DOWN Price: $18.45 |
| 6 |
05295600 |
HARNESS, WIRE This part replaces 04974400. Price: $109.95 |
| 7 |
07027600 |
NUT-PUSH .25X.50 O.D. Price: $1.95 |
| 8 |
07500308 |
BSHG, PANEL SNAP .937X1.11X.56 Price: $3.45 |
| 9 |
07505700 |
INSULATOR Price: $8.95 |
| 10 |
07533200 |
BOOT, EYELET TERMINAL Price: $3.45 |
| 11 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC Price: $0.95 |
| 12 |
06500921 |
NUT-KEPS .250-20 ZCC This part replaces 06509200. Price: $1.45 |
| 13 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC Price: $0.95 |
| 14 |
07400125 |
SCR,TAP .25-20X.375 HWH TR ZCC Price: $0.95 |
| 15 |
05901716 |
BLT, HEX .25-20X.75 G5 ZCC Price: $0.95 |
| 16 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 17 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC Price: $0.45 |
| 18 |
05167200 |
SOLENOID, STARTER (SEALED) Price: $41.95 |
| 19 |
06500925 |
NUT-STD M6-1.0 ZCC Price: $0.95 |
| 20 |
06300118 |
WSHR,LK-EXT.262X.502X.026 ZCC Price: $0.45 |
