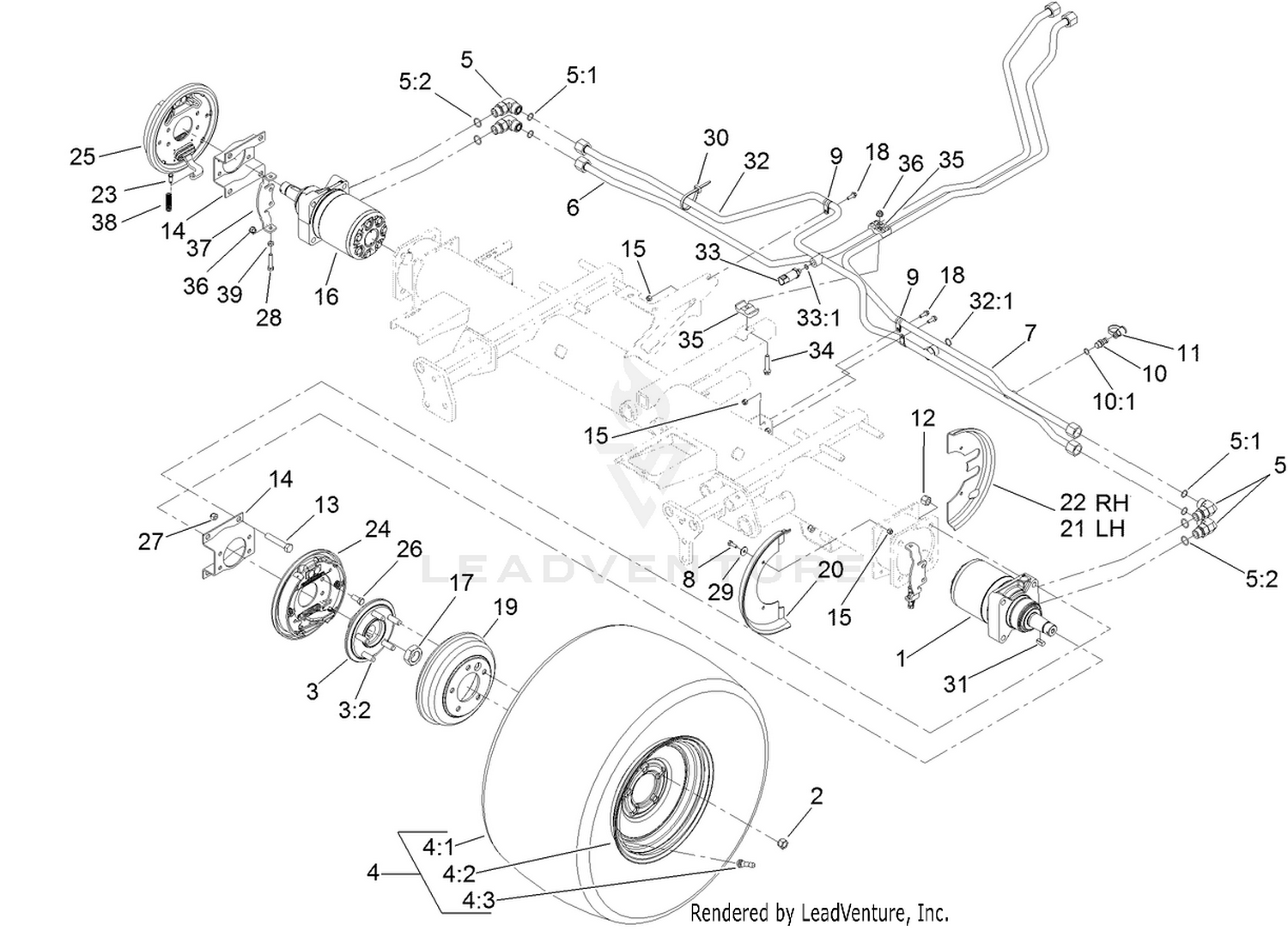

| Ref | Part Number | Description |
|---|
| 1 |
133-2950 |
KIT-WHEEL MOTOR This part replaces 114-8857. Price: $1,886.64 |
| 2 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 3 |
114-8876 |
HUB ASM Price: $167.79 |
| 4 |
136-7963 |
TIRE ASM This part replaces 115-8086. Price: $455.76 |
| 5 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 6 |
114-0425 |
HYDRAULIC TUBE ASM Price: $172.90 |
| 7 |
114-0424 |
HYDRAULIC TUBE ASM Price: $174.00 |
| 8 |
321-4 |
SCREW-HH Price: $0.99 |
| 9 |
2412-134 |
CLAMP-R Price: $5.79 |
| 10 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 11 |
354-79 |
CAP-DUST Price: $7.81 |
| 12 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 13 |
325-11 |
SCREW-HH Price: $1.93 |
| 14 |
110-5343-03 |
BRACKET-BRAKE Price: $48.38 |
| 15 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 16 |
133-2950 |
KIT-WHEEL MOTOR This part replaces 114-8858. Price: $1,886.64 |
| 17 |
107-9319 |
NUT-HEX Price: $31.11 |
| 18 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 19 |
114-8864 |
DRUM-BRAKE Price: $248.55 |
| 20 |
127-2741 |
SHIELD-WHEEL, FRONT This part replaces 110-0950. Price: $9.99 |
| 21 |
127-2742 |
SHIELD-WHEEL, REAR This part replaces 110-0951. Price: $8.07 |
| 22 |
127-2742 |
SHIELD-WHEEL, REAR This part replaces 110-8878. Price: $8.07 |
| 23 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 25 |
110-8871 |
RH BRAKE ASM Price: $429.41 |
| 26 |
323-6 |
SCREW-HH Price: $0.66 |
| 27 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 28 |
322-7 |
SCREW-HH Price: $0.89 |
| 29 |
3256-67 |
WASHER Price: $0.49 |
| 30 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 31 |
117-5198 |
KEY-SQUARE This part replaces 114-8863. Price: $11.44 |
| 32 |
114-0389 |
HYDRAULIC TUBE ASM Price: $274.53 |
| 33 |
119-0011 |
PRESSURE TRANSDUCER ASM Price: $341.50 |
| 34 |
94-5780 |
SCREW-HWH Price: $7.49 |
| 35 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 36 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 37 |
117-0203-03 |
BRACKET-BRAKE SPRING Price: $23.73 |
| 38 |
87-4020 |
SPRING-EXTENSION Price: $17.01 |
