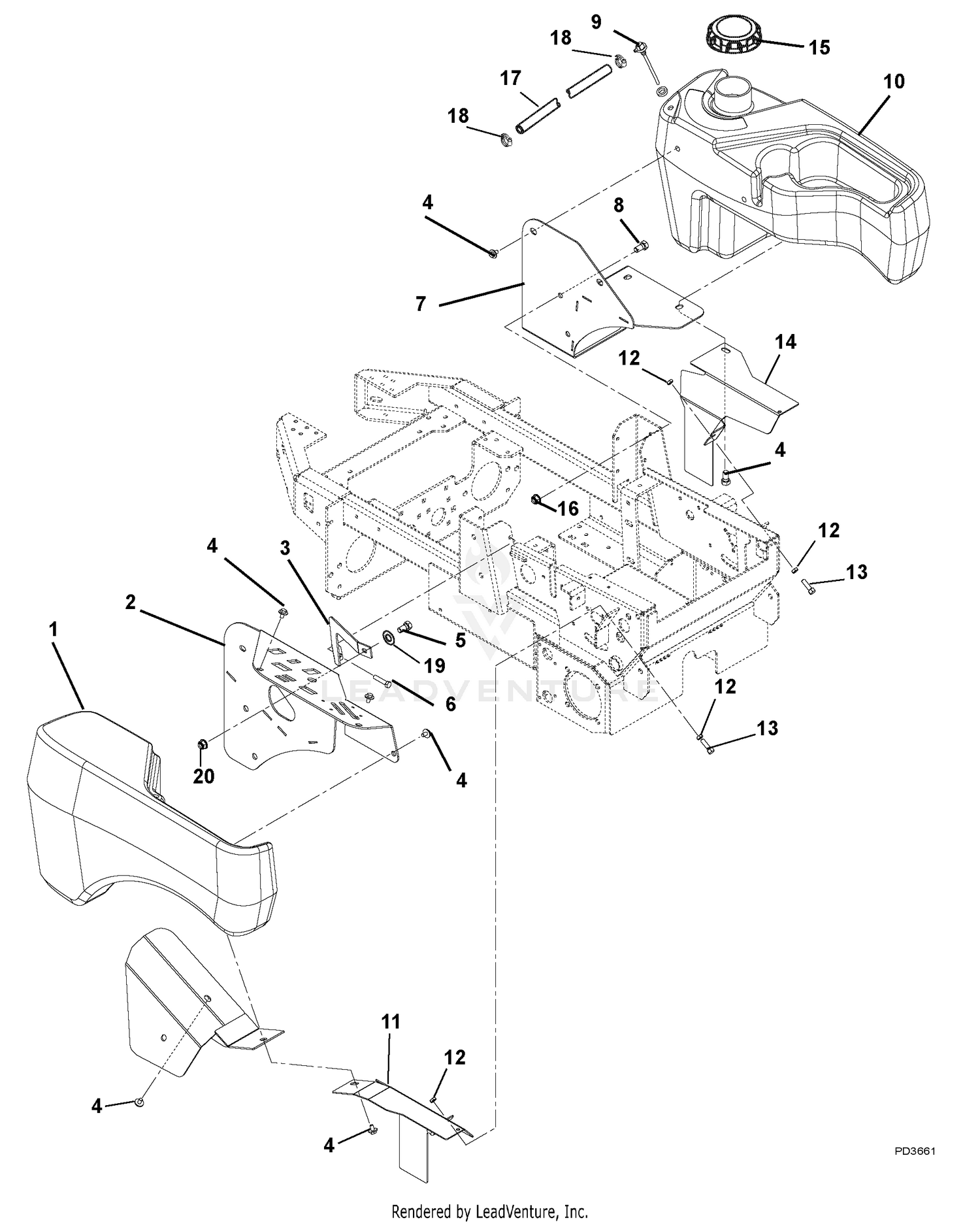

| Ref | Part Number | Description |
|---|
| 1 |
00497400 |
FENDER, (RH) OUTFRONT Price: $131.55 |
| 2 |
00473951 |
PANEL, CONTROL Price: $112.45 |
| 3 |
00616851 |
STIFFENER, FENDER Price: $17.00 |
| 4 |
07000018 |
BOLT, SEMS .31-18 X .62 Price: $3.45 |
| 5 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 6 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 8 |
05901715 |
BLT, HEX .50-13X1.00 G5 ZCC This part replaces 05947100. Price: $2.45 |
| 9 |
00592600 |
ASSM, FUEL LINE & FITTING Price: $32.95 |
| 10 |
00497500 |
TANK, FUEL (LH) OUTFRONT Price: $268.20 |
| 11 |
00672751 |
COVER, TIRE RH Price: $29.95 |
| 12 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 13 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45 |
| 14 |
00672651 |
COVER, TIRE LH Price: $24.95 |
| 15 |
03859100 |
CAP, FUEL This part replaces 00273700. Price: $25.45 |
| 16 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 18 |
06939100 |
CLAMP-HOSE WIRE .490/.510X.116 Price: $3.45 |
| 19 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
