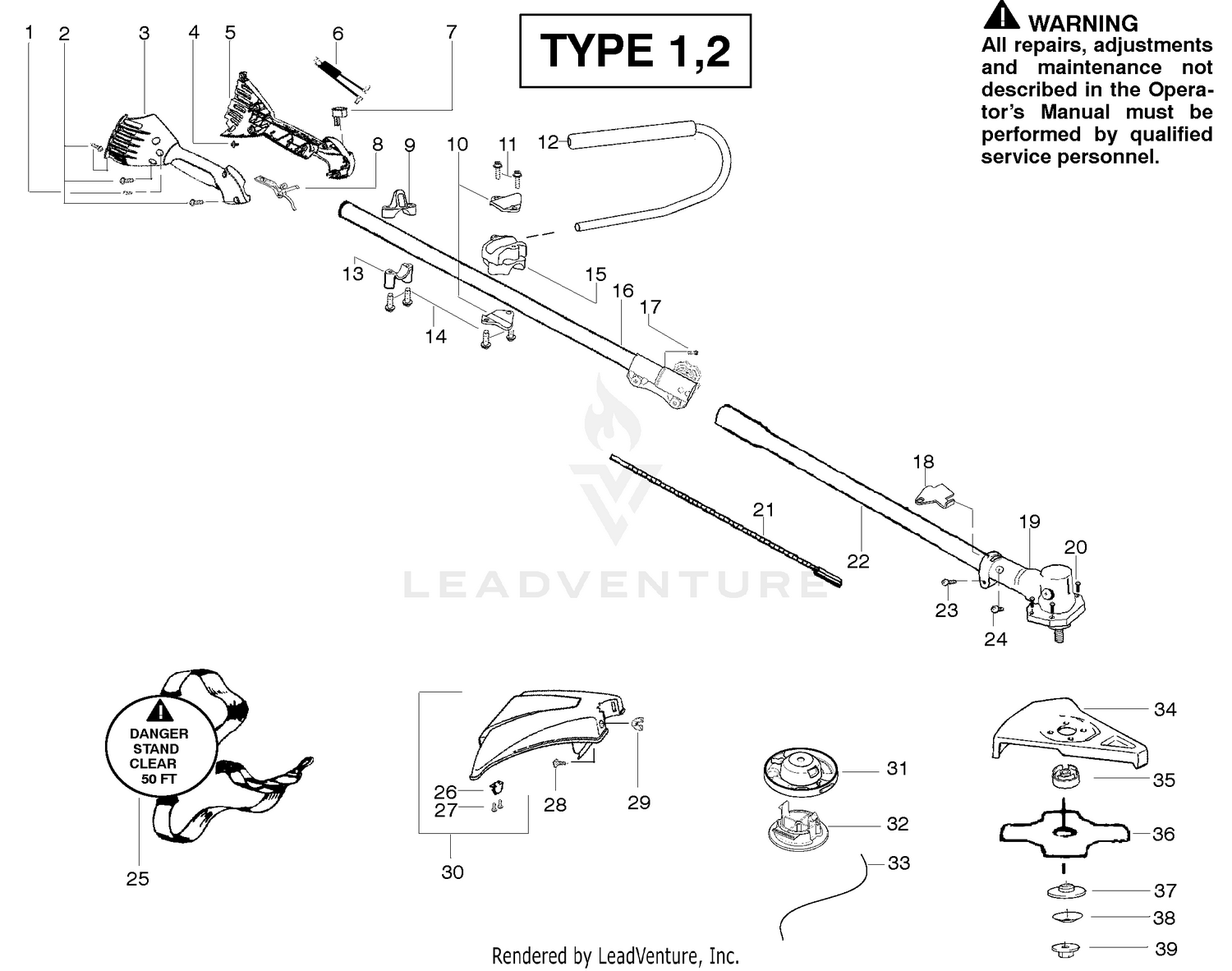

| Ref | Part Number | Description |
|---|
| 1 |
530015886 |
Screw This part replaces 530015805. Price: $1.99 |
| 2 |
530015886 |
Screw Price: $1.99 |
| 3 |
530057983 |
Hsg.-Throttle-right Price: $7.99 |
| 4 |
530016326 |
Screw-Cable Retention Price: $1.99 |
| 5 |
530057984 |
Hsg.-Throttle-left Price: $6.99 |
| 6 |
530058843 |
Assy-Wire Price: $5.99 |
| 7 |
530069572 |
Kit-Switch Price: $4.99 |
| 8 |
545017701 |
TRIGGER THROTTLE RED This part replaces 530058759. Price: $1.99 |
| 9 |
530057986 |
Clamp-Harness (upper) Price: $2.99 |
| 10 |
530058563 |
Clamp-Bracket Price: $2.99 |
| 11 |
530015886 |
Screw Price: $1.99 |
| 13 |
530057987 |
Clamp-Harness (lower) Price: $3.99 |
| 14 |
530015940 |
Screw Price: $1.99 |
| 15 |
530058765 |
Clamp-Handlebar Price: $2.99 |
| 17 |
530016344 |
Screw Price: $1.99 |
| 18 |
530057554 |
Bracket-Shield Price: $2.99 |
| 19 |
530096100 |
Gearbox Price: $53.99 |
| 20 |
530016312 |
Screw Price: $1.99 |
| 21 |
545173003 |
FLEXSHAFT SPLIT BOOM This part replaces 530096218. Price: $6.99 |
| 22 |
530071790 |
Assy-Lower Shaft This part replaces 545006040. Price: $17.99 |
| 23 |
530016014 |
Screw Price: $1.99 |
| 24 |
530015775 |
Screw Price: $1.99 |
| 25 |
530094417 |
Shoulder Strap This part replaces 530094408. Price: Call Us |
| 26 |
530052285 |
Limiter-Line Price: $1.99 |
| 27 |
530015814 |
Screw Price: $1.49 |
| 28 |
530015820 |
Bolt Price: $1.99 |
| 29 |
530401992 |
Wingnut This part replaces 530016152. Price: $2.99 |
| 31 |
545053902 |
Assy - Fixed Line Head This part replaces 545049401. Price: $22.99 |
| 32 |
545049501 |
Cap-Fixed Line Price: $5.99 |
| 33 |
952711635 |
Accy-Line (12 pcs.) Price: Call Us |
| 34 |
530071383 |
Kit-Metal Shield Price: $9.99 |
| 35 |
530095815 |
Dust cup Price: $1.99 |
| 36 |
952711584 |
Accy.-Weed Blade Price: Call Us |
| 37 |
530095816 |
Washer Price: $1.99 |
| 38 |
530016240 |
Washer-Belleville Price: $1.99 |
| 39 |
530015793 |
Nut-Flange Price: $1.99 |
