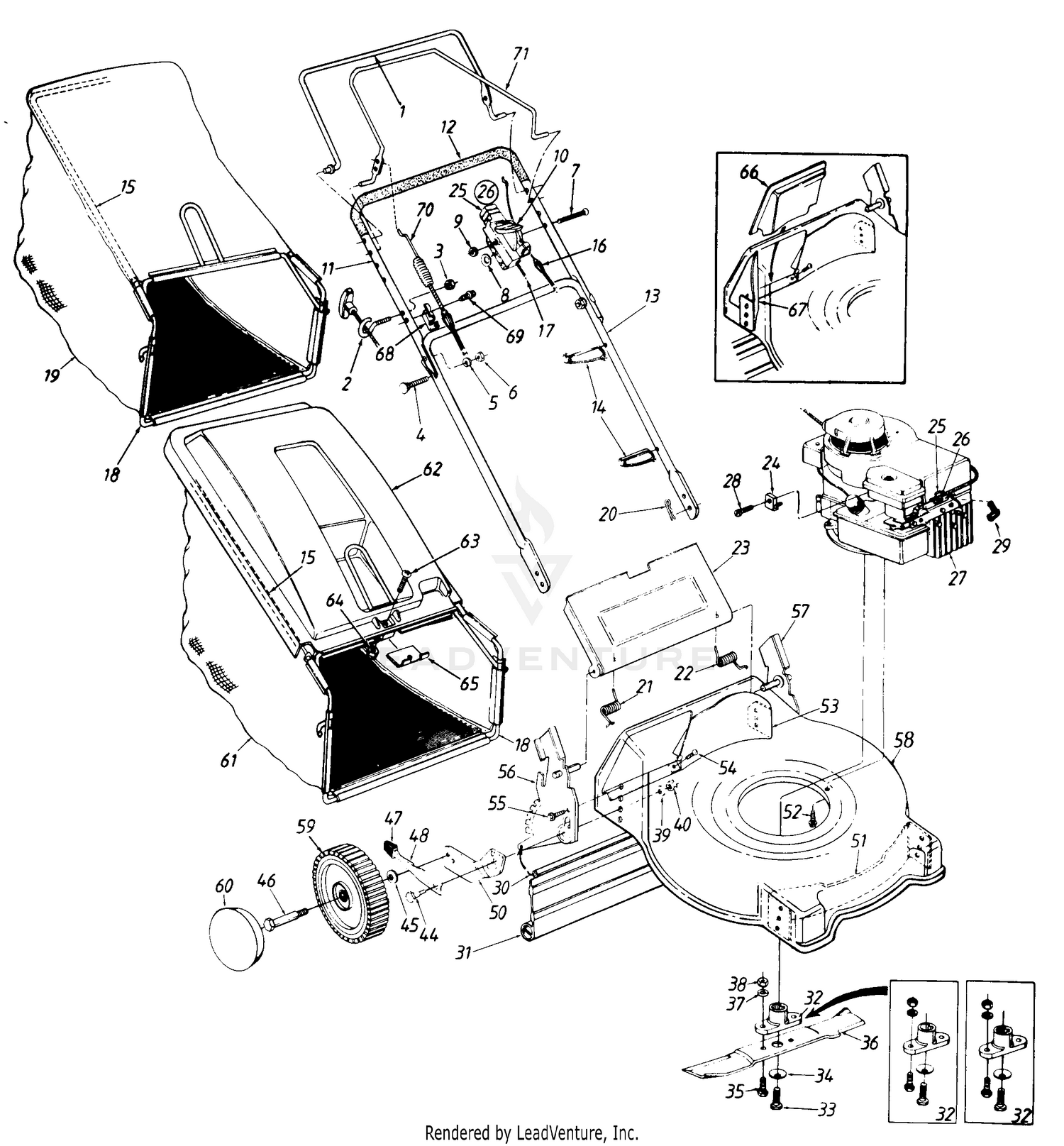

| Ref | Part Number | Description |
|---|
| 2 |
710-1205 |
Rope Guide Bolt Price: $3.53 |
| 3 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 4 |
710-0671 |
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 Not Available Price: |
| 9 |
712-0291 |
Hex L-Nut 1/4-20 Thd. Price: $3.93 |
| 13 |
749-0928A-0637 |
Lower Handle This part replaces 749-0372B. Price: $29.67 |
| 14 |
725-0157 |
Cable Tie This part replaces 726-0240. Price: $3.46 |
| 15 |
764-0310A-0637 |
Rear Catcher Frame This part replaces 764-0310. Price: $40.61 |
| 16 |
946-0550 |
Control Cable 39" This part replaces 746-0550. Price: $20.12 |
| 18 |
764-0311-0637 |
FRONT CATCHER FRAME (POWDER BLACK) Not Available This part replaces 764-0311. Price: |
| 20 |
714-0104 |
Int. Cotter Pin 5/16" Dia. Price: $3.90 |
| 21 |
732-0678 |
Door Spring - R.H. Price: $7.13 |
| 22 |
932-0677 |
SPRING-DOOR (LH) Not Available This part replaces 732-0677. Price: |
| 23 |
782-7000 |
REAR DISCHARGE DOOR Not Available Price: |
| 24 |
BS-690798 |
Cable Clamp (B&S) This part replaces 751-0568. Price: $4.88 |
| 27 |
N/A |
Engine |
| 28 |
710-1237 |
Hex Wash. Hd. Scr. #10-32 x .62" Lg. Price: $3.89 |
| 31 |
731-04998 |
Rear Trailing Shield This part replaces 731-1236. Price: $27.86 |
| 35 |
710-1055 |
SCREW 3/8-24 C 1.00 GR5 Not Available Price: |
| 38 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 39 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 44 |
738-0507B |
SHOULDER SCREW Price: $3.86 |
| 45 |
736-0105 |
Bell-Wash..38" I.D. x .88" O.D. Price: $3.96 |
| 46 |
738-0102 |
Axle Bolt Price: $9.22 |
| 47 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01 |
| 48 |
732-0417A |
SPRING LEVER Not Available Price: |
| 50 |
14765 |
BAR-PIVOT (RH) *ON Not Available Price: |
| 51 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002. Price: |
| 52 |
710-0654A |
Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg Price: $3.75 |
| 53 |
782-5003A |
LH Rear Baffle This part replaces 782-5003. Price: $26.48 |
| 54 |
710-1017 |
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg Price: $7.26 |
| 55 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 56 |
682-0516-0637 |
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) Not Available This part replaces 682-0503. Price: |
| 57 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 682-0502. Price: |
| 68 |
16309A |
CABLE BRACKET MOUNTING Not Available Price: |
| 69 |
710-0726 |
Hex Wash. AB-Tap Scr. 5/16" x 75" Lg Price: $3.82 |
