Parts Catalog

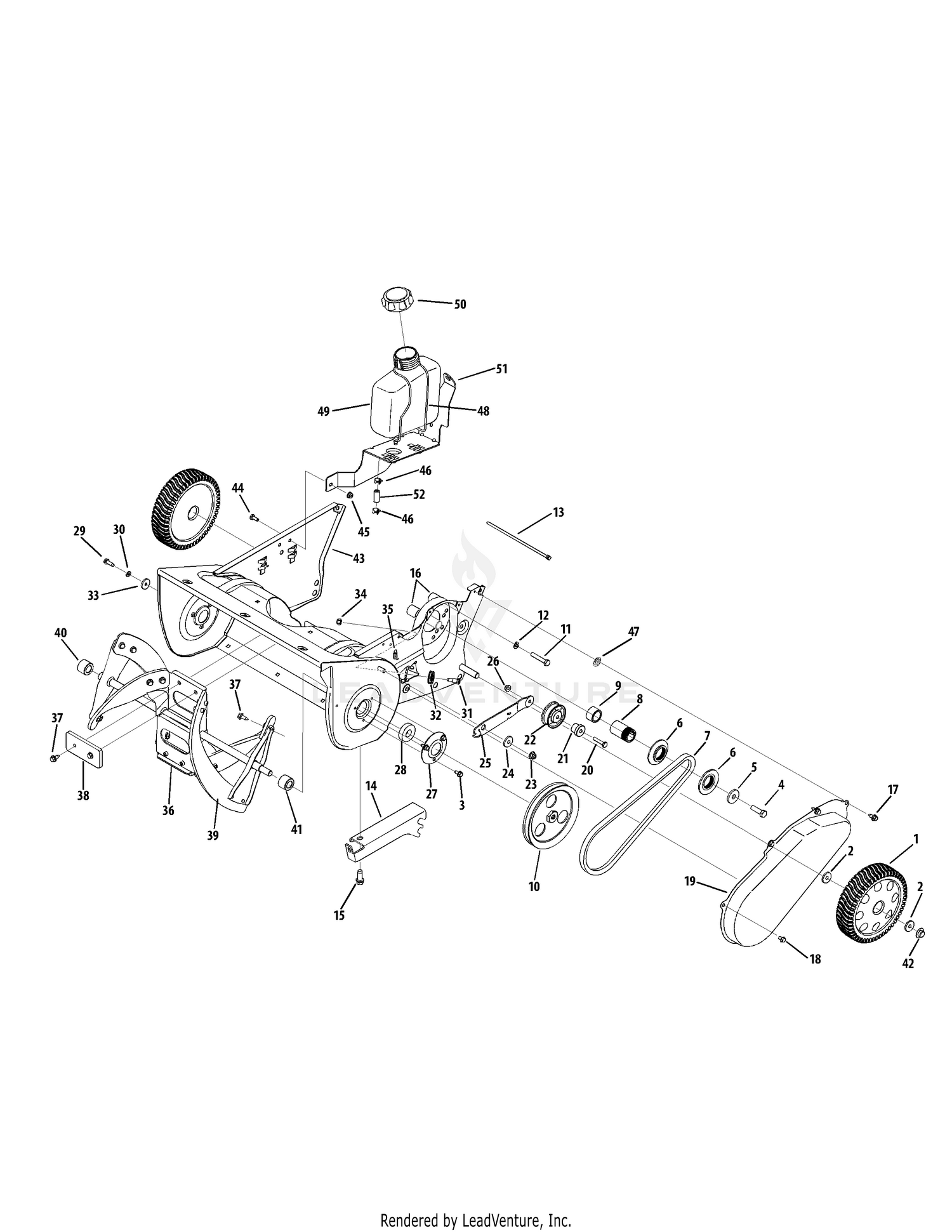

Drive System & Auger Assembly

Parts (37)

Ref	Part Number	Description
2	736-0326	Flat Washer,.510 x 1.00 This part replaces 936-0326. Price: $3.89
3	710-0599	Hex Screw, 1/4-14 x .500 Price: $3.86
4	710-1044	Hex Screw, 3/8-24 x 1.50 Price: $3.48
5	736-0247	Flat Washer, .406 x 1.25 x .157 Price: $8.82
6	756-04353	Pulley Half, 4L-V x 2.30 OD Price: $6.23
7	954-04204	V-Belt Price: $21.71
10	756-04232	V-Type Pulley, 1/2 x 35.7 Price: $53.31
11	710-0409	Hex Screw, 5/16-24 x 1.75 Price: $4.02
12	936-0119	Lock Washer, 5/16 Price: $4.29
13	926-0154	Cable Tie, 7.5 Price: $5.50
15	710-0623	Hex Washer Screw, 3/8-16 x .50 Price: $3.93
16	750-04297B	SPACER Not Available Price:
17	710-0896	Hex Washer Screw, 1/4-14 x .625 Price: $3.86
18	710-0653	Hex Washer Screw, 1/4-20 x .375 Price: $3.78
20	710-0106	Hex Screw, 1/4-20 x 1.25 Price: $3.66
21	750-04571	Shoulder Spacer, .260 x .785 x .538 Price: $6.01
22	684-04168	Pulley Assembly, 1.917 OD Price: $34.09
23	712-04063	Flange Lock Nut, 5/16-18 Price: $3.56
24	748-0234	Shoulder Spacer Price: $3.86
25	790-00238A-0637	Idler Bracket w/ Brake Price: $8.78
26	712-04064	Flange Lock Nut, 1/4-20 Price: $3.64
27	790-00249-0637	Bearing Cup Price: $16.13
28	741-04188A	Ball Bearing, 1.25 x 37 x 12.6301 Price: $11.30
29	710-0642	Hex Screw, 1/4-20 x .750 Price: $4.05
30	936-0329	Lock Washer, 1/4 Price: $3.90
31	738-0924A	Shoulder Screw, .340 x .335 x 1/4-28 Price: $5.94
32	756-0625	Cable Roller Price: $8.52
33	736-0176	Flat Washer .265 x .938 x .120 This part replaces 936-0176. Price: $3.95
34	712-0896	Hex Lock Nut, 1/4-28 Price: $4.08
35	732-0357A	Extension Spring 1.12 Lg This part replaces 932-0357A. Price: $3.94
36	684-04252-0637	Auger Assembly, 21" Not Available Price:
37	710-05058	Hex Screw, 1/4-14 x .75 Price: $3.49
38	735-04033	Rubber Pad Price: $7.31
39	735-04032	Spiral Crescent Price: $17.15
40	750-04758	RH Spacer Price: $5.53
41	750-04757	LH Spacer Price: $7.34
42	726-0299	Push Cap, 1/2 Price: $7.03
