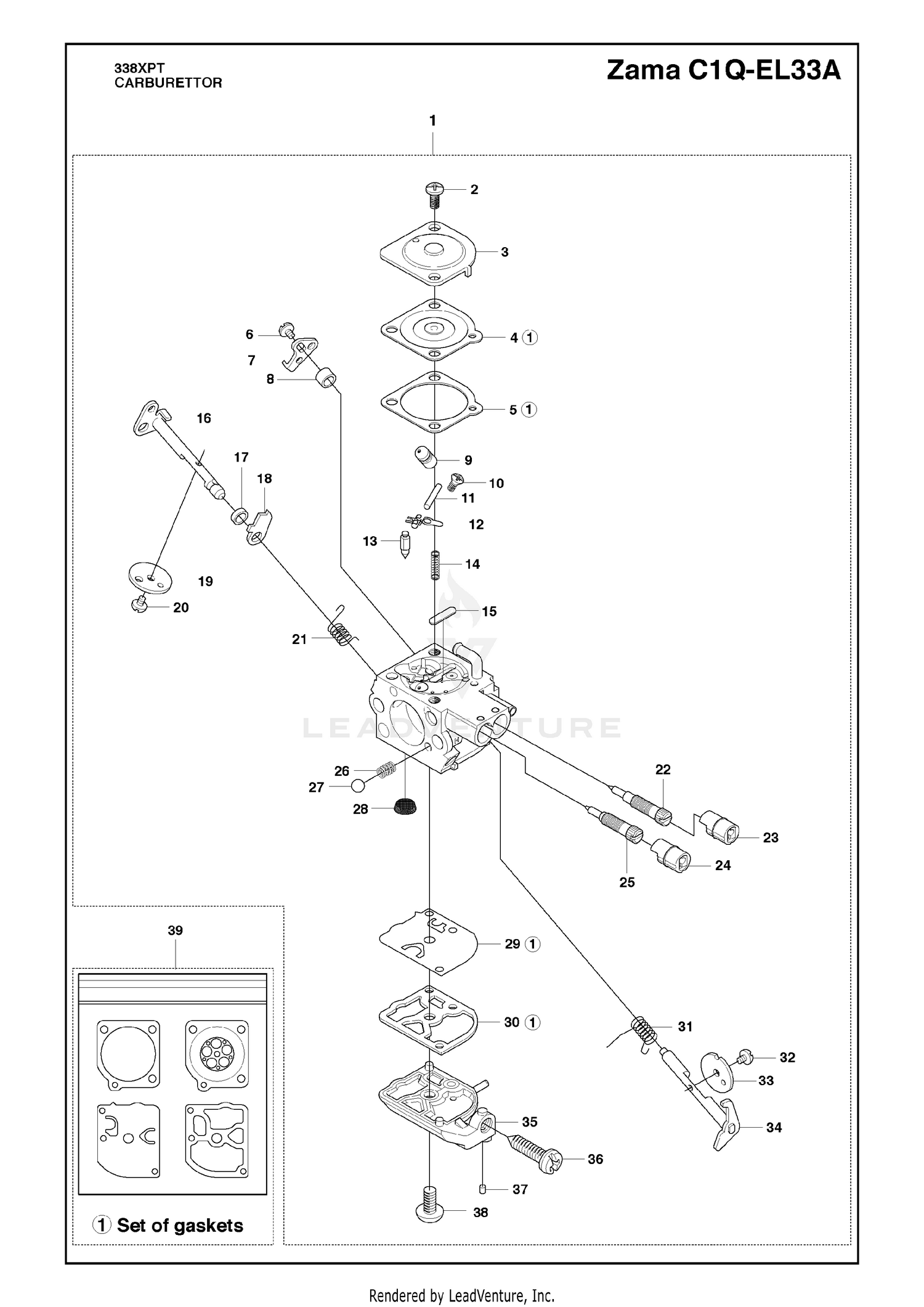

Carburettor
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-3273 | KIT-SERVICE, CYLINDER This part replaces 83-2330. Price: $679.02 |
| 1 | 544160901 | CARBURETOR Price: $89.99 |
| 2 | 115-9472 | BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 2 | 503480501 | SCREW Price: $2.99 |
| 3 | 115-9471 | BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 3 | 503974301 | COVER Price: $5.99 |
| 4 | 18-6320 | WASHER-STEERING Price: $2.65 |
| 4 | 537048901 | DIAPHRAGM Price: $11.99 |
| 5 | 32136-9 | NUT-HEX, SLOTTED Price: $7.44 |
| 5 | 537020401 | GASKET Price: $3.99 |
| 6 | 3272-37 | PIN-COTTER Price: $0.75 |
| 6 | 503479001 | SCREW Price: $2.99 |
| 7 | 302-11 | FITTING-LUBE, 45 DEG Price: $1.56 |
| 7 | 537274101 | ARM Price: $5.99 |
| 8 | 503478901 | SPACER Price: $3.99 |
| 8 | 84-5300 | NUT-JAM Price: $9.99 |
| 9 | 107-2553 | ROD END ASM This part replaces 83-1640-03. Price: $150.07 |
| 9 | 537413501 | NOZZLE Price: $17.99 |
| 10 | 139-2564 | NUT-LUG This part replaces 242-50. Price: $0.99 |
| 10 | 503480101 | SCREW Price: $2.99 |
| 11 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 12 | 503665901 | LEVER Price: $3.99 |
| 12 | 74-3730 | SPACER-SPINDLE, REAR Price: $5.06 |
| 13 | 503479701 | INLET NEEDLE Price: $8.99 |
| 14 | 5-3934 | BOLT-CASTER Price: $55.92 |
| 14 | 537273401 | SPRING Price: $4.99 |
| 15 | 503535601 | PLUG Price: $3.99 |
| 15 | 95-5952-01 | FORK CASTOR ASM Price: $558.94 |
| 16 | 3220-6 | NUT-JAM Price: $1.25 |
| 16 | 537273801 | SHAFT Price: $22.17 |
| 17 | 3296-67 | NUT-LOCK, NI Price: $5.05 |
| 17 | 537274401 | WASHER Price: $3.16 |
| 18 | 3217-12 | NUT-HEX Price: $3.12 |
| 18 | 537274301 | ARM Price: $4.78 |
| 19 | 3256-28 | WASHER-FLAT Price: $0.48 |
| 19 | 537266801 | CHOKE FLAP Price: $4.99 |
| 20 | 340-132 | FITTING-ELBOW, 90 DEG Price: $24.64 |
| 20 | 503481801 | SCREW Price: $2.99 |
| 21 | 537134901 | SPRING Price: $2.99 |
| 23 | 537417001 | LIMITER CAP KIT Price: $5.99 |
| 24 | 537417001 | LIMITER CAP KIT Price: $5.99 |
| 26 | 537012601 | SPRING Price: $2.99 |
| 27 | 537012501 | BALL Price: $2.99 |
| 28 | 503535701 | STRAINER Price: $3.99 |
| 29 | 537020001 | PUMP DIAPHRAGM Price: $7.99 |
| 30 | 537020101 | GASKET Price: $3.99 |
| 31 | 537019701 | SPRING THROTTLE Price: $2.99 |
| 32 | 503481801 | SCREW Price: $2.99 |
| 33 | 537388301 | THROTTLE FLAP Price: $5.99 |
| 34 | 544119001 | SHAFT Price: $16.99 |
| 35 | 537273301 | COVER Price: $32.99 |
| 36 | 537273701 | SCREW Price: $12.99 |
| 37 | 503481101 | PLUG Price: $3.99 |
| 38 | 503479601 | SCREW Price: $2.99 |
