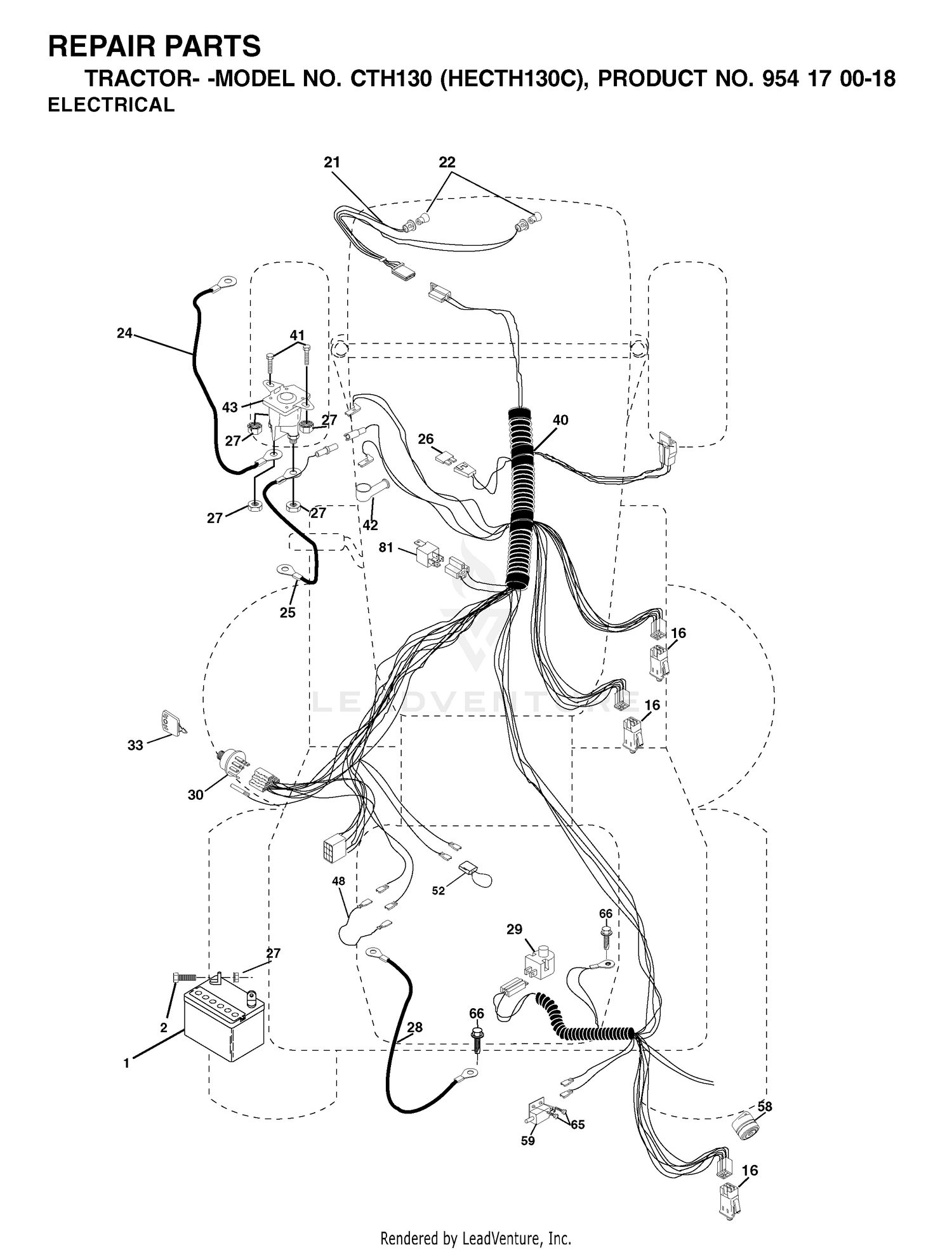

| Ref | Part Number | Description |
|---|
| 1 |
117-0723 |
PLATE-MOUNT, TUBE CLAMP Price: $13.30 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144925. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
94-8105 |
CLAMP-TUBE Price: $3.17 |
| 3 |
353-987 |
FITTING-ELBOW, 90 Price: $74.72 |
| 4 |
117-0693 |
HYDRAULIC TUBE Price: $61.58 |
| 5 |
340-157 |
FITTING-HYD, TEE Price: $49.83 |
| 6 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 7 |
340-70 |
NUT-LOCK Price: $2.10 |
| 8 |
117-0708 |
PUMP CONTROL VALVE ASM Price: $1,425.48 |
| 9 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 10 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 11 |
354-79 |
CAP-DUST Price: $7.81 |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
322-14 |
SCREW-HH Price: $1.01 |
| 14 |
340-129 |
FITTING-ELBOW, 90 DEG Price: $99.81 |
| 15 |
340-8 |
FITTING-STRAIGHT Price: $9.70 |
| 16 |
125-5854 |
TUBE ASM Price: $113.43 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN This part replaces 532153664. Price: $19.99 |
| 17 |
100-5616 |
FITTING Price: $50.63 |
| 18 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 19 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 21 |
532166181 |
HARNESS Price: $26.99 |
| 22 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
117-0689 |
PLATE-MOUNT, TUBE CLAMPS Price: $17.96 |
| 24 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
2412-102 |
CLAMP-R Price: $6.85 |
| 25 |
532165987 |
CABLE BATTERY Price: $22.99 |
| 26 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
117-0680 |
HOSE ASM Price: $200.68 |
| 28 |
532127725 |
CABLE GROUND Price: $4.18 |
| 29 |
117-0682 |
HOSE ASM Price: $205.74 |
| 29 |
532160784 |
PLUNGER SWITCH (COLOR:OLIVE) Price: $17.99 |
| 30 |
119-0583 |
HOSE ASM Price: $155.32 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 31 |
119-5045 |
HOSE-SUCTION Price: $86.98 |
| 32 |
117-0687 |
HOSE ASM Price: $181.17 |
| 33 |
125-5853 |
HYD-HOSE Price: $273.06 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
94-3688 |
SLEEVE-PROTECTIVE Price: $23.04 |
| 40 |
532170164 |
Harness Ign Crd Noram Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532175141. Price: $19.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 58 |
532169420 |
KIT.BUZZER.CRD This part replaces 532169419. Price: $64.99 |
| 59 |
532166299 |
SWITCH Price: $7.99 |
| 65 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 Price: $3.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
