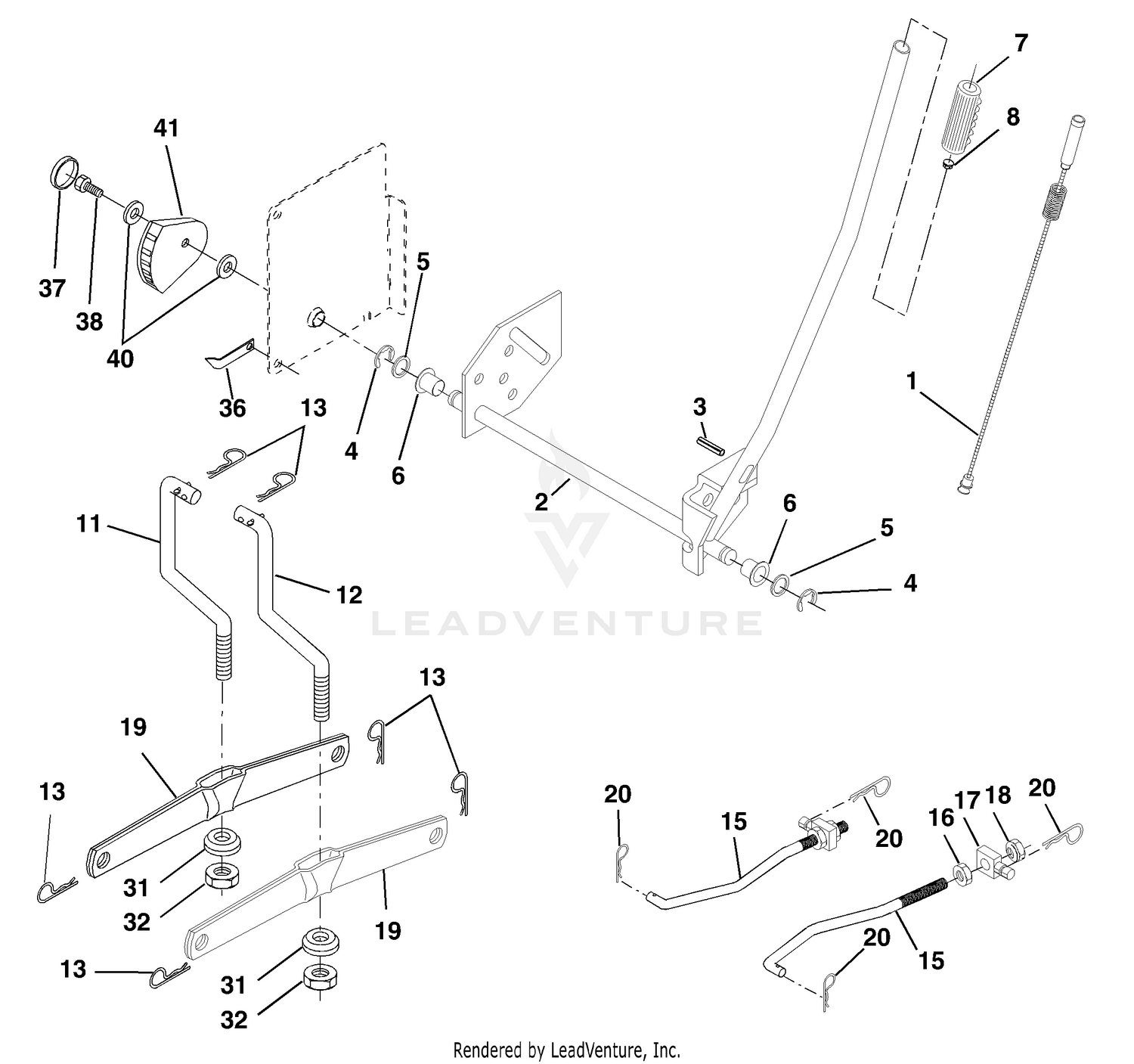

Mower Lift

Mower Lift

Parts (34)

RefPart NumberDescription
1 159460 Wire Asm Inner/Sprg W/plunger LT Price: Call Us
1 95-7509 SHAFT-GEAR, DIFFERENTIAL Price: $139.55
2 159471 Shaft Asm Lift RH w/Inf Price: Call Us
2 95-7512 SHAFT-GEAR, DIFFERENTIAL Price: $106.50
3 105767X Pin Groove 1 500 Zinc Price: Call Us
3 95-7517 GEAR-BEVEL, 15 TOOTH Price: $126.37
4 119-8558 BEARING-NOSEAL This part replaces 99-7530. Price: $14.99
4 12000002 E Ring #5133-62 Price: Call Us
5 19211621 Washer 21/32 X 1 X 21 Ga Price: Call Us
5 99-7552 SHIM 0.1 Price: $3.12
5 99-7553 SHIM 0.2 Price: $2.83
5 99-7554 SHIM 0.5 Price: $3.19
6 120183X Bearing Nylon Blk 629 Id Price: Call Us
6 99-7531 CLIP Price: $1.42
7 110-4753 SHAFT-GEAR, BEVEL This part replaces 95-7529. Price: $139.91
7 125631X Grip Handle Price: Call Us
8 170770 Button Plunger Price: Call Us
8 95-7519 GEAR-BEVEL, 17 TOOTH Price: $130.17
9 99-7532 BEARING-ROLLER, TAPER Price: $45.81
11 139865 Link Lift LH Fixed Length Price: Call Us
12 139866 Link Lift RH Fixed Length Price: Call Us
13 4939M Retainer Spring Price: Call Us
15 173288 Link Front Price: Call Us
16 73350800 Nut Jam Hex 1/2-13 Unc Price: Call Us
17 175689 Trunnion Price: Call Us
18 73800800 Nut Lock W/Wsh 1/2-13 Unc Price: Call Us
19 139868 Arm Suspension Rear Price: Call Us
20 163552 Retainer Spring Price: Call Us
31 169865 Bearing Pvt Lift Price: Call Us
32 73540600 Nut Crownlock 3/8 - 24 Price: Call Us
36 155097 Pointer Height Indicator Price: Call Us
37 123935X Plug Hole Blk 1.485/1.515 Dia. Price: Call Us
38 17060516 Screw 5/16-18 x 1 Price: Call Us
40 19112410 Washer 11/32 x 1-1/2 10 Ga. Price: Call Us
