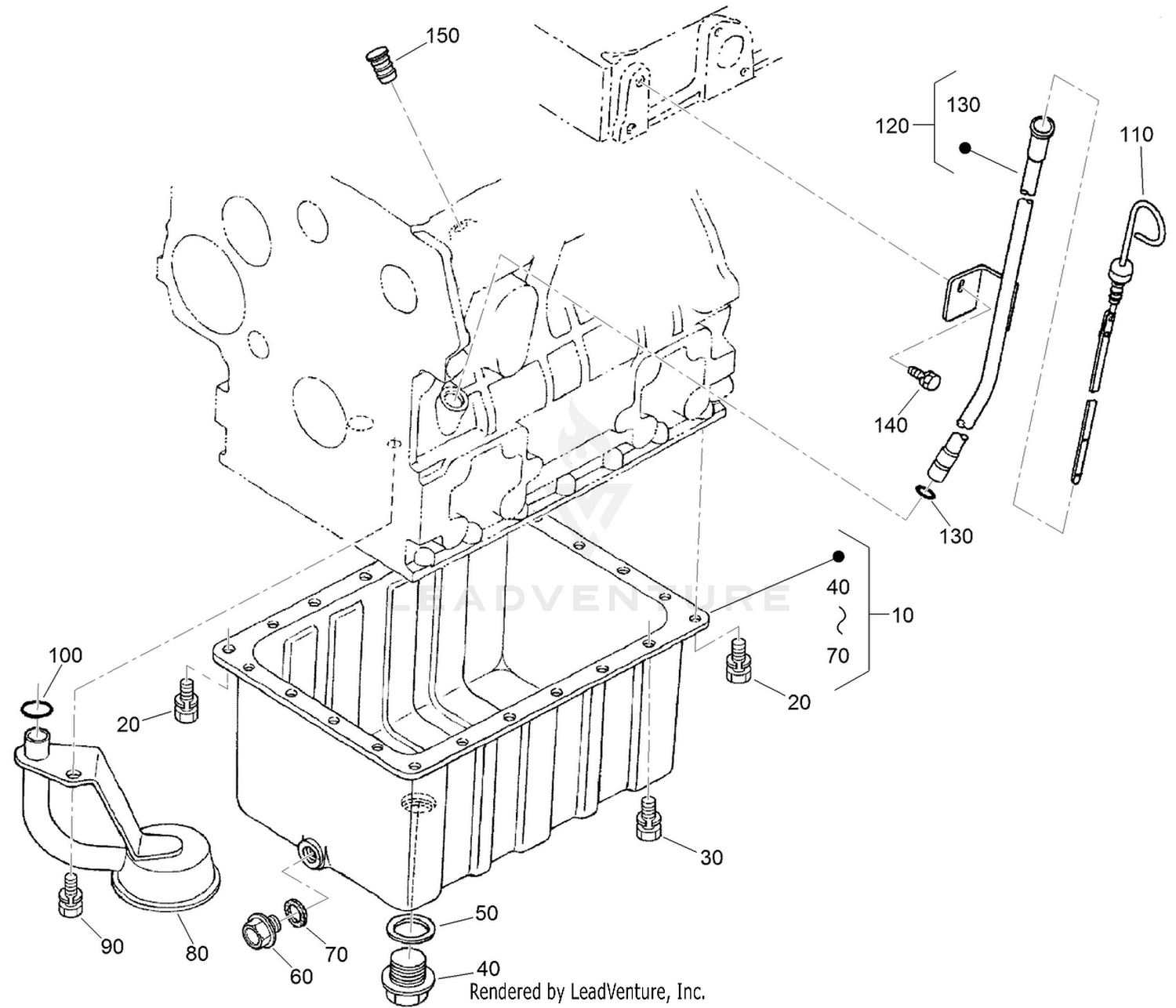

Oil Pan, Pump and Dipstick Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 130-1282 | OIL PAN KIT Price: $155.44 |
| 20 | 98-9351 | BOLT Price: $0.98 |
| 30 | 98-9351 | BOLT Price: $0.98 |
| 40 | 98-9686 | PLUG-DRAIN Price: $14.50 |
| 50 | 110-9715 | GASKET-PAN, OIL Price: $4.46 |
| 60 | 114-8151 | PLUG-DRAIN Price: $9.99 |
| 70 | 98-7524 | GASKET Price: $5.09 |
| 80 | 115-4116 | FILTER-OIL Price: $33.19 |
| 90 | 98-7526 | BOLT Price: $0.80 |
| 100 | 105-3776 | O-RING Price: $5.77 |
| 110 | 120-3124 | GAUGE-OIL Price: $30.31 |
| 120 | 98-9672 | OIL GAUGE GUIDE ASM Price: $60.03 |
| 130 | 98-9722 | O-RING Price: $2.07 |
| 140 | 100-9195 | BOLT Price: $0.72 |
