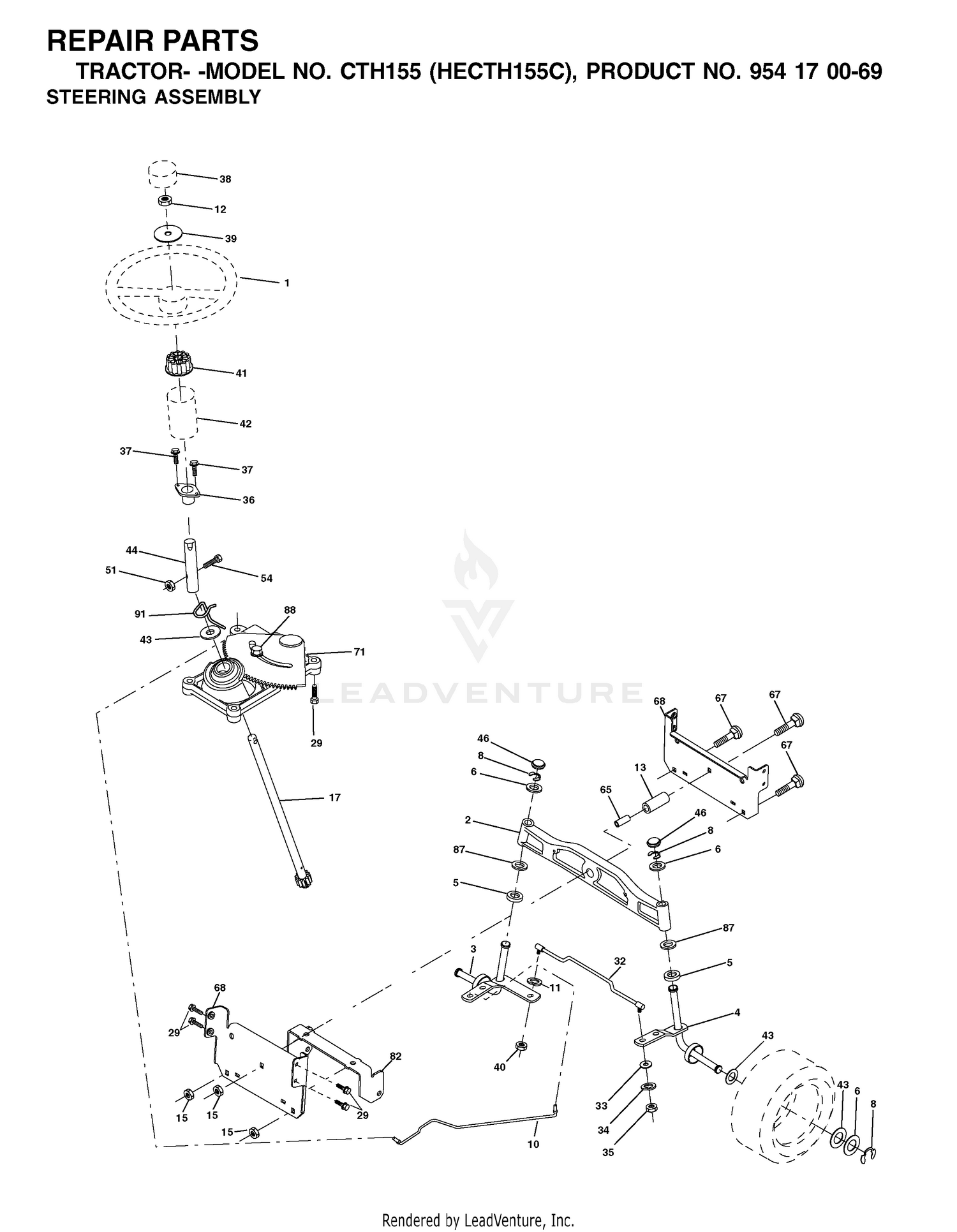

| Ref | Part Number | Description |
|---|
| 1 |
325-5 |
SCREW-HH Price: $1.20 |
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532172393. Price: $119.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
53-5250-01 |
HANDLE - LIFT, LONG This part replaces 53-5250. Price: $58.10 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
3-7877 |
GRIP-HANDLE Price: $10.69 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
53-5260-01 |
HANDLE - LIFT, SHORT This part replaces 53-5260. Price: $107.16 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 8 |
5-4693 |
CHAIN Price: $30.29 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 10 |
282-13 |
DISCONTINUED Price: Call Us |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
53-5100-01 |
CENTER FRAME This part replaces 53-5100. Price: $2,251.94 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
32153-5 |
NUT-HEX Price: $1.59 |
| 15 |
12-0010 |
U BOLT W.A. Price: $81.76 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 17 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180641. Price: $59.99 |
| 22 |
5-1091 |
SPACER Price: $4.98 |
| 23 |
325-10 |
SCREW-HH Price: $1.82 |
| 24 |
53-4910-01 |
DRAWBAR This part replaces 53-4910. Price: $939.13 |
| 25 |
3272-38 |
PIN-COTTER Price: $3.05 |
| 26 |
53-5230-01 |
SUPPORT-FRAME This part replaces 53-5230. Price: $157.68 |
| 27 |
327-23 |
SCREW-HH Price: $3.60 |
| 28 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 29 |
3296-24 |
NUT-HEX Price: $4.44 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 30 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 31 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550. Price: $161.64 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819182411 |
Washer 9/16 ID x 1 1/2 OD 11 Ga. Zin Price: $4.99 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532407600 |
KIT.RPLMNT.SHAFT.STRG. This part replaces 532180640. Price: $59.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 51 |
873540400 |
NUT.CROWNLOCK.1/4-28 Price: $4.99 |
| 54 |
871130420 |
Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8 Price: $4.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
