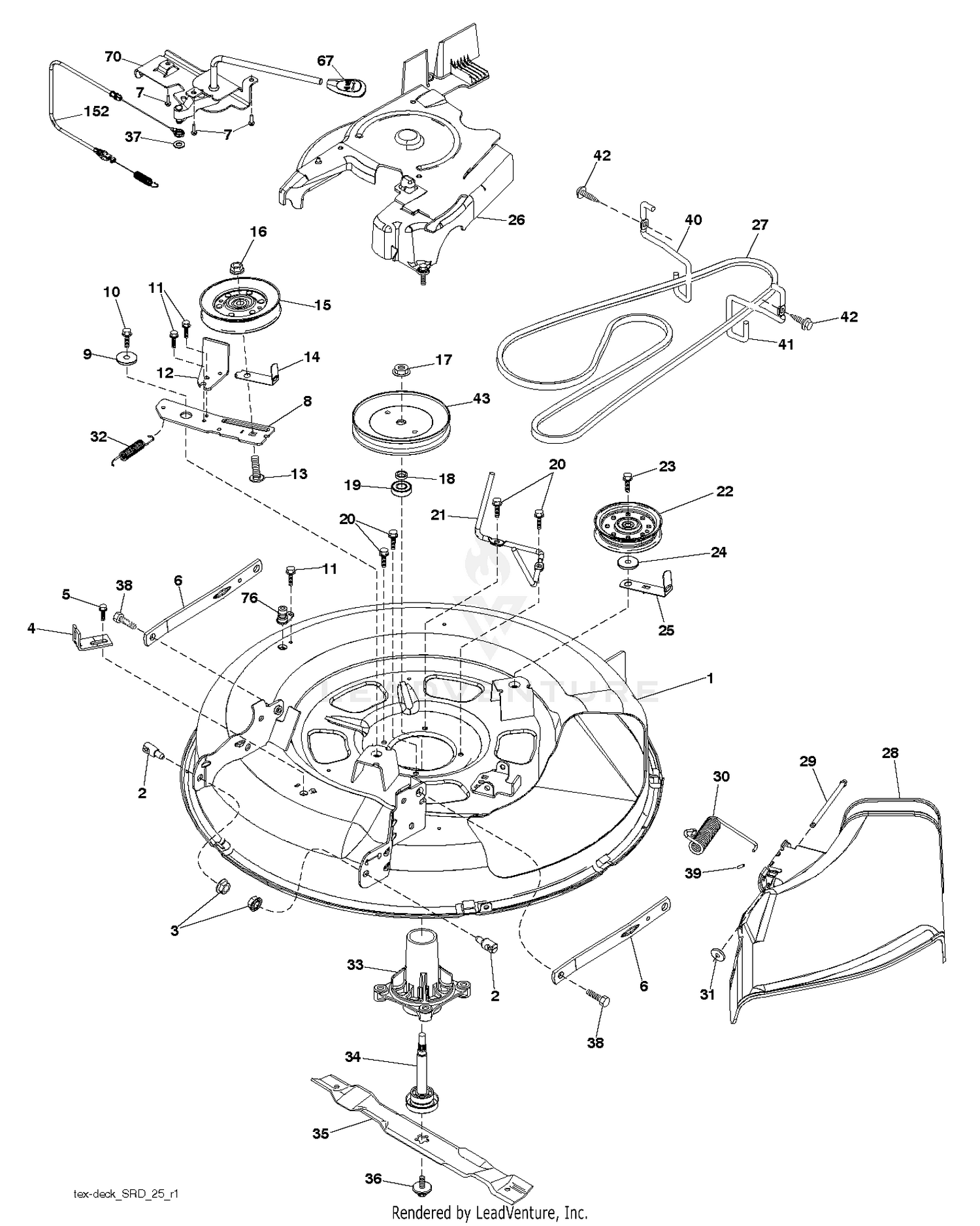

| Ref | Part Number | Description |
|---|
| 1 |
13-3740 |
DISCONTINUED Price: Call Us |
| 1 |
583749801 |
DECK.SVC.WLDT.30"SRDPNT This part replaces 532419272. Price: $279.99 |
| 2 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 2 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 3 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 3 |
79-2000 |
KEY-SQUARE This part replaces 13-6330. Price: $3.69 |
| 4 |
3247-3 |
SCREW-SET Price: $7.86 |
| 4 |
532417645 |
BRACKET.CLUTCH.CABLE Price: $4.99 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 6 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 6 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $17.99 |
| 7 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 8 |
583379801 |
ARM.IDLER.30"SRD This part replaces 532420252. Price: $7.99 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 9 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 10 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 11 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 12 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 12 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $14.99 |
| 13 |
3217-9 |
NUT-HH Price: $0.37 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 14 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 15 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 16 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
3219-3 |
NUT-HEX Price: $0.34 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 18 |
283-35 |
DISCONTINUED Price: Call Us |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 19 |
532110485 |
BEARING Price: $11.99 |
| 20 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 21 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 13-5490. Price: $337.37 |
| 21 |
532416910 |
KEEPER.BELT.MANDREL.30" Price: $12.99 |
| 22 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 22 |
596481402 |
PULLEYS This part replaces 532193198. Price: $22.99 |
| 23 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 24 |
56-6210 |
BEARING This part replaces 251-235. Price: $90.04 |
| 24 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
529311701 |
KEEPER, BELT, BLACK This part replaces 532420253. Price: $4.99 |
| 26 |
3217-8 |
NUT-HEX Price: $1.34 |
| 26 |
532430313 |
Price: Call Us |
| 27 |
13-2680 |
BUSHING Price: $217.68 |
| 27 |
532419271 |
V-BELT.DRIVE.MOWER.30" Price: $49.99 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 28 |
532417344 |
SHIELD.DEFLECT.MWR.30S.BLACK Price: $37.99 |
| 29 |
322-10 |
SCREW-HH Price: $0.70 |
| 30 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 30 |
56-6210 |
BEARING This part replaces 251-236. Price: $90.04 |
| 31 |
3245-36 |
SCREW-SET, HSH Price: $0.27 |
| 31 |
532110452 |
NUT PUSH M Price: $2.99 |
| 32 |
13-0600 |
IDLER ASM Price: $783.75 |
| 32 |
532401872 |
SPRING RETURN Price: $4.99 |
| 33 |
13-0510 |
DISCONTINUED Price: Call Us |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 34 |
3218-5 |
NUT-JAM Price: $0.27 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 35 |
3244-21 |
SCREW-SQH Price: $10.59 |
| 35 |
532419273 |
BLADE, MULCH.LRV30 Price: $29.99 |
| 36 |
3290-379 |
TIE-CABLE This part replaces 3290-336. Price: $0.31 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 37 |
3-5967-01 |
BATTERY SUPPORT This part replaces 3-5967. Price: $117.43 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
106-5190 |
BATTERY This part replaces 13-6480. Price: $170.85 |
| 38 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 39 |
3-3175-01 |
BATTERY COVER This part replaces 3-3175. Price: $292.58 |
| 39 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 40 |
119-6807 |
DECAL-WARNING This part replaces 3-5582. Price: $7.37 |
| 40 |
532419270 |
KEEPER.BELT.ENGINE.LH.LT.SRD Price: $14.99 |
| 41 |
13-0480 |
SPRING Price: $30.51 |
| 41 |
532419265 |
KEEPER.BELT.ENGINE.RH.LT.SRD Price: $11.99 |
| 42 |
13-3990-01 |
HANDLE-TRIP This part replaces 13-3990. Price: $189.07 |
| 42 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 43 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 43 |
525568002 |
PULLEY.MANDREL 6.5" PULLEY This part replaces 532416877. Price: $24.99 |
| 44 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 45 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 46 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 47 |
13-6790 |
BATTERY CABLE This part replaces 13-3280. Price: $115.82 |
| 48 |
3-8135 |
EXTENSION SPRING Price: $29.29 |
| 49 |
323-7 |
SCREW-HH Price: $0.65 |
| 50 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 51 |
5-0678 |
BATTERY CLAMP ROD Price: $35.64 |
| 52 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 53 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 54 |
3217-5 |
NUT-HEX Price: $0.25 |
| 55 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 56 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 57 |
13-3080 |
DISCONTINUED Price: Call Us |
| 58 |
13-0060 |
DISCONTINUED Price: Call Us |
| 59 |
327-6 |
SCREW-HH Price: $12.99 |
| 60 |
322-7 |
SCREW-HH Price: $0.89 |
| 61 |
13-2670-01 |
SHEAVE This part replaces 13-2670. Price: $1,182.76 |
| 62 |
13-0160 |
DISCONTINUED Price: Call Us |
| 63 |
56-6230 |
BEARING-ROLLER This part replaces 251-244. Price: $72.34 |
| 64 |
13-4340 |
DISCONTINUED Price: Call Us |
| 65 |
13-3710 |
WASHER Price: $3.05 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $32.99 |
| 76 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. This part replaces 532408714. Price: $29.99 |
