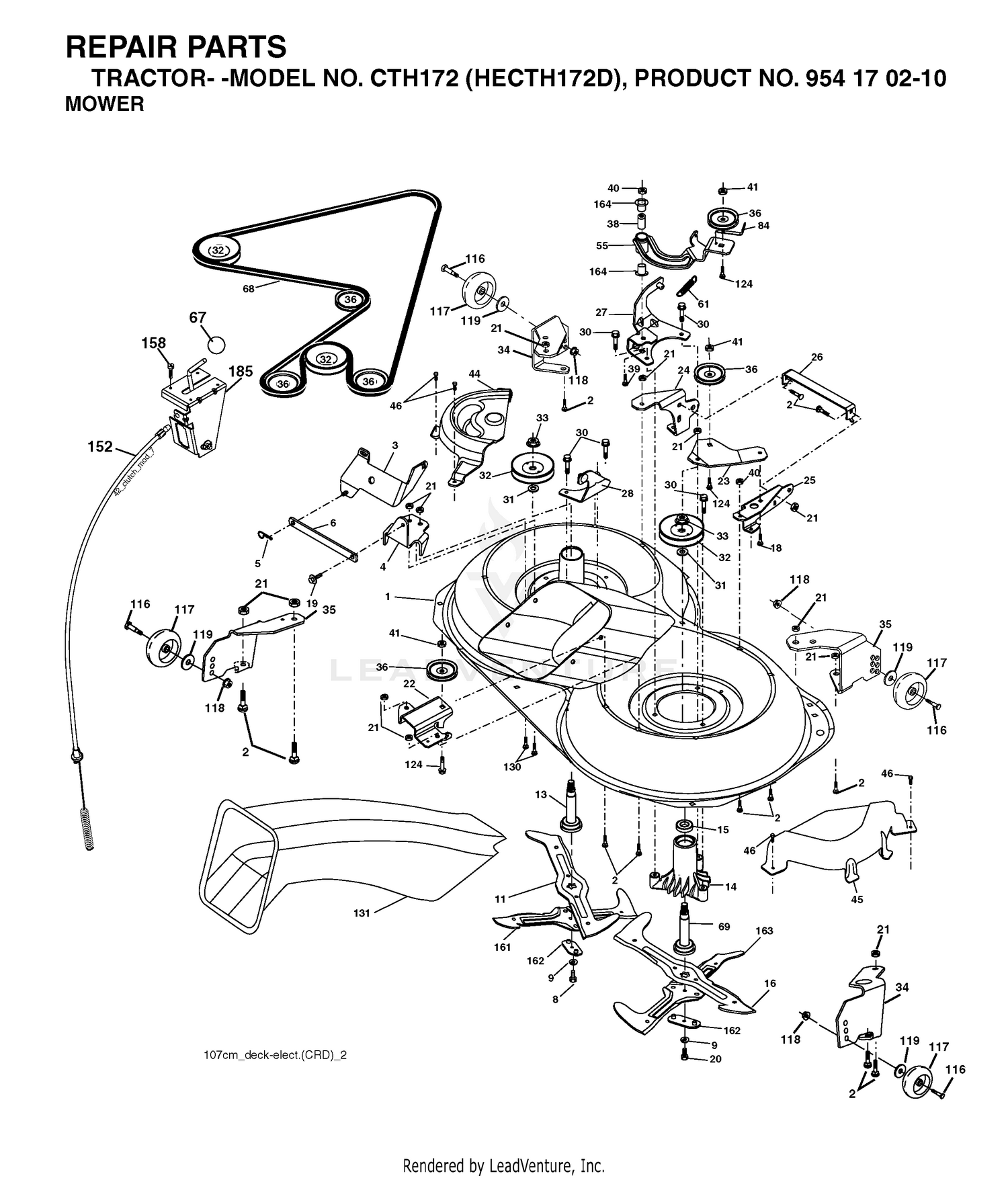

| Ref | Part Number | Description |
|---|
| 1 |
532169160 |
Housing Asm. Mower 107 CRD Price: Call Us |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
532165569 |
BRACKET Price: $23.99 |
| 4 |
532169167 |
BRACKET Price: $14.76 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 8 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $5.99 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 11 |
532180583 |
BLADE.3N1.LH.CRD Price: $27.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
532180584 |
BLADE.3N1.RH.CRD Price: $27.99 |
| 18 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
532169165 |
BRACKET.IDLER.RR.107.CRD Price: $12.99 |
| 23 |
532169166 |
BRACKET Price: $22.99 |
| 24 |
532169170 |
BRACKET Price: $12.63 |
| 25 |
532169171 |
BRACKET.SUSPENSION.RF.107.CRD Price: $24.99 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532165237. Price: $29.99 |
| 28 |
583029401 |
BRACKET.ASM.SUSP.LR.107.CRD This part replaces 532169168. Price: $22.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532175707 |
NEEDS DESCRIPTION Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
532179509 |
NEEDS DESCRIPTION Price: Call Us |
| 35 |
532176292 |
NEEDS DESCRIPTION Price: Call Us |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 38 |
532169851 |
SPACER Price: $8.99 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 44 |
532175538 |
NEEDS DESCRIPTION Price: Call Us |
| 45 |
532175539 |
COVER.MANDREL.RH.CRD Price: $17.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 55 |
531149401 |
SERVICE KIT ARM.IDLER ARM.IDLE This part replaces 532169849. Price: $17.99 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 61 |
532175159 |
NEEDS DESCRIPTION Price: Call Us |
| 68 |
547597001 |
DRIVE BELT HEX-BELT 107 MOWER This part replaces 532169178. Price: $59.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 116 |
596434404 |
Bolts This part replaces 532184219. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 124 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 130 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $79.99 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 152 |
532176074 |
Price: Call Us |
| 158 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 127-1612. Price: $486.45 |
| 161 |
532180424 |
Price: Call Us |
| 162 |
532180878 |
Price: Call Us |
| 163 |
532180425 |
BLADE.CROSS.RH.CRD.107 Price: $39.99 |
| 164 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $34.99 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
