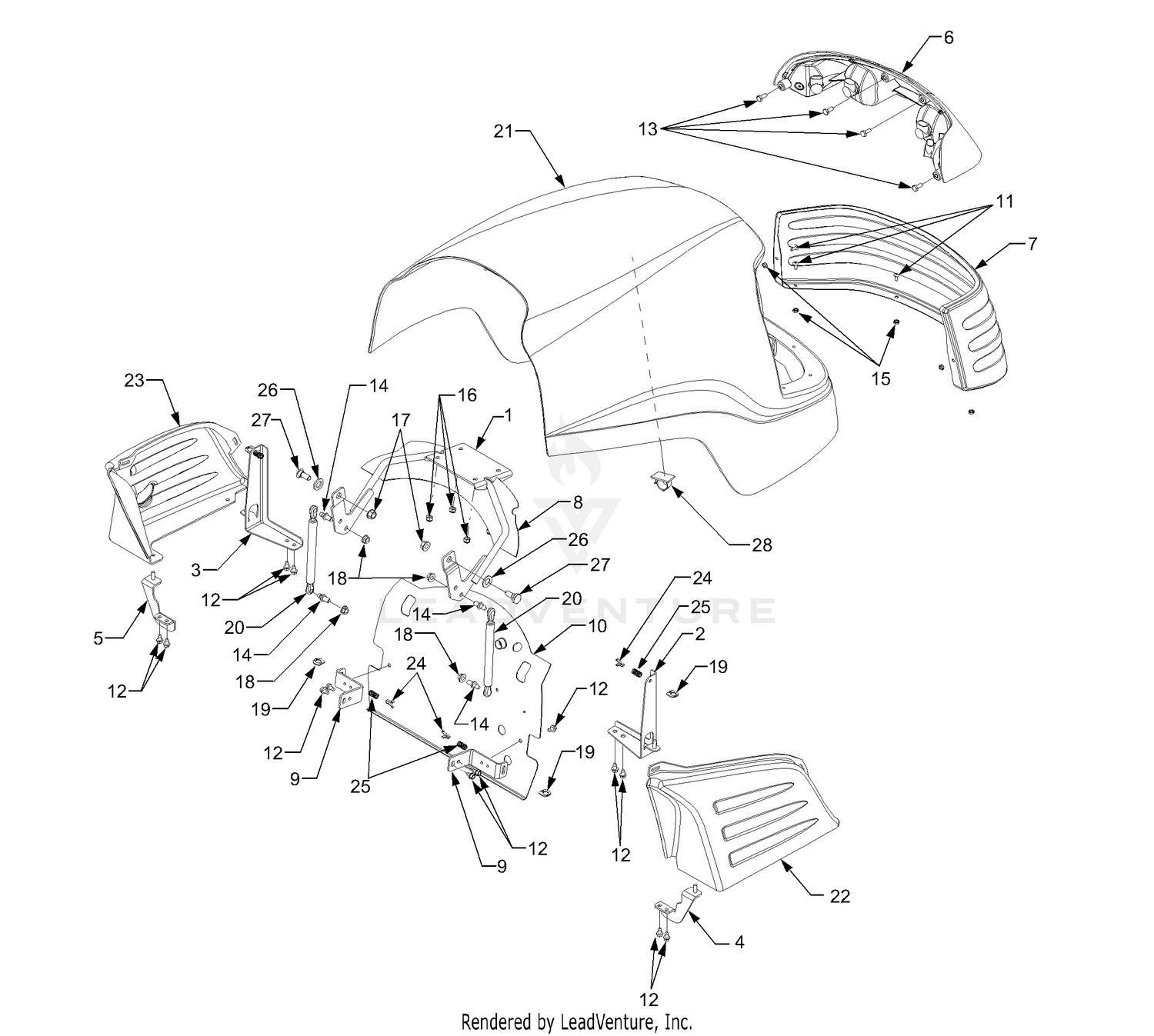

| Ref | Part Number | Description |
|---|
| 1 |
163465 |
Battery Price: Call Us |
| 1 |
322-14 |
SCREW-HH Price: $1.01 |
| 1 |
603-0719A-0637 |
HOOD HINGE ASSEMBLY Not Available This part replaces 603-0719-0637. Price: |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
603-0784-0637 |
PANEL BRACKET ASSEMBLY (RH) (POWDER BLACK) Not Available Price: |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us |
| 3 |
256-219 |
BUSHING Price: $7.59 |
| 3 |
603-0785-0637 |
PANEL BRACKET ASSEMBLY (LH) (POWDER BLACK) Not Available Price: |
| 4 |
603-0924-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available Price: |
| 4 |
85-8960 |
SPACER Price: $11.44 |
| 5 |
603-0925-0637 |
BRACKET ASSEMBLY (LH) PANEL (POWDER BLACK) Not Available Price: |
| 5 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 6 |
625-0052 |
HEADLIGHT ASSEMBLY-F Not Available Price: |
| 6 |
92-2343-01 |
PEDAL ASM Price: $59.71 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
703-3394-0637 |
INTAKE SCREEN Not Available This part replaces 703-3394. Price: |
| 8 |
176689 |
Box Battery Price: Call Us |
| 8 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 8 |
703-3712 |
SHIELD-UPPER HEAT Not Available Price: |
| 9 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 9 |
703-3764 |
BRACKET-PANEL MTG Not Available Price: |
| 10 |
703-3765 |
SHIELD-LOWER HEAT Not Available Price: |
| 10 |
95-0584 |
ROD-CONTROL Price: $84.20 |
| 11 |
710-0473 |
Screw, Truss Hd, 10-24 x .5 Price: $3.90 |
| 11 |
92-2344 |
TRUNNION Price: $81.16 |
| 12 |
3218-5 |
NUT-JAM Price: $0.27 |
| 12 |
710-0599 |
Screw, Hex Wash Hd Tapp 1/4-20 x .5 Price: $3.86 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
710-3170 |
SCREW 5/16-18 x .56 Not Available Price: |
| 15 |
712-0272 |
Nut, Hex Sems, 10-24 Price: $3.58 |
| 16 |
176138 |
Switch Interlock Price: Call Us |
| 16 |
712-0324 |
Nut, Hex Nylon Insert Lock, 1/4-20 Price: $3.38 |
| 17 |
912-0431 |
Nut, Hex Flange Lock, 3/8-16 This part replaces 7120431. Price: $4.29 |
| 18 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 19 |
726-3056 |
Latch, 1/4 Turn Panel Price: $6.20 |
| 20 |
727-3194 |
Cylinder, Gas Spring Price: $106.14 |
| 21 |
175688 |
Harness Asm Light W/4152j Price: Call Us |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 22 |
731-3278 |
SIDE PANEL (RH) Not Available Price: |
| 23 |
731-3279 |
SIDE PANEL (LH) Not Available Price: |
| 24 |
4799J |
Cable Battery 6 Ga. 11"red Price: Call Us |
| 24 |
726P05561 |
PANEL LATCH This part replaces 732-0936. Price: $30.60 |
| 25 |
146147 |
Cable Battery Price: Call Us |
| 25 |
732-0937 |
Spring, Compression Price: $7.18 |
| 26 |
175158 |
Fuse 20 AMP Price: Call Us |
| 26 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 27 |
738-0380 |
Screw, Shoulder, .5 x .27 Lg 3/8-16 Price: $7.34 |
| 28 |
4207J |
Cable Ground 6 Ga. 12"black Price: Call Us |
| 29 |
192749 |
Switch Price: Call Us |
| 30 |
193350 |
Switch Ign Price: Call Us |
| 33 |
140401 |
Key Ign Price: Call Us |
| 34 |
110712X |
Switch Light/Reset Price: Call Us |
| 40 |
197428 |
Harness Ign Price: Call Us |
| 41 |
71110408 |
Bolt Blk Fin Hex 1/4-20 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 48 |
140844 |
Adapter Ammeter Price: Call Us |
| 52 |
141940 |
Protection Wire Loop Price: Call Us |
| 90 |
180449 |
Cover Terminal Battery Price: Call Us |
| 92 |
193465 |
Harness Pigtail Price: Call Us |
| 93 |
192540 |
Screw Plastite 10-14 x 2.0 Price: Call Us |
